Networked, intelligent compact loudspeakers have a new standard to achieve in the CS-Series.
Line Source
Line Source

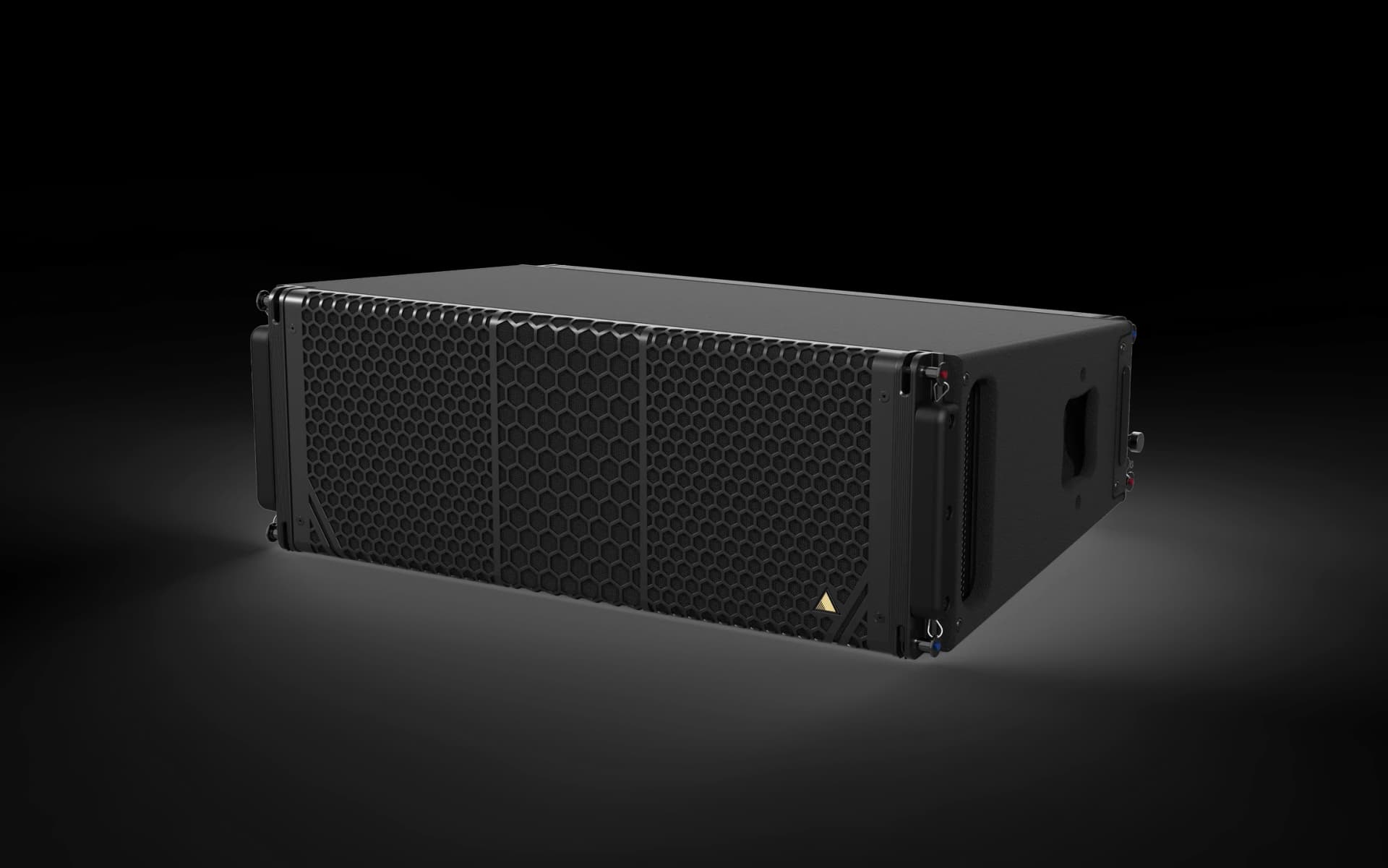

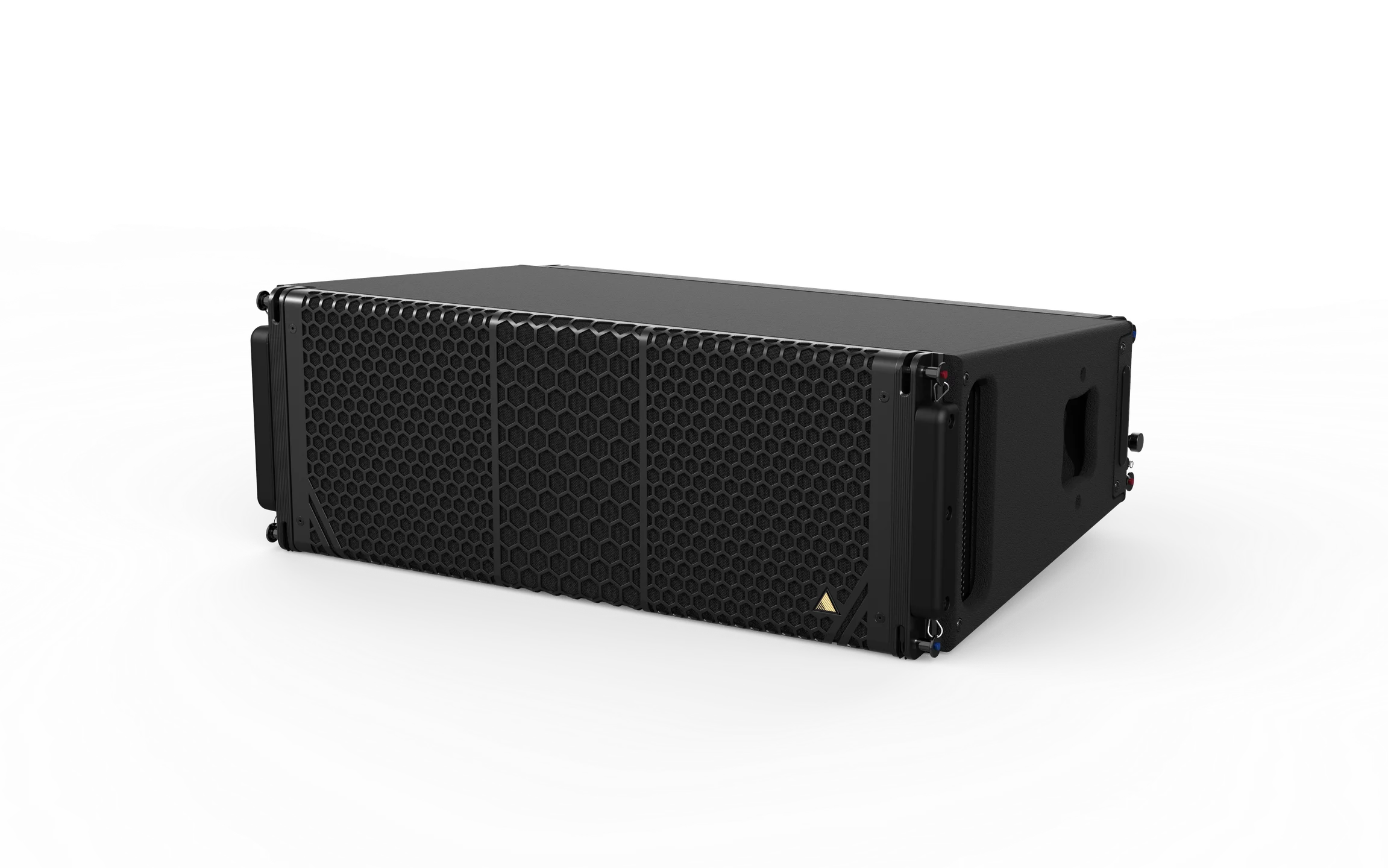

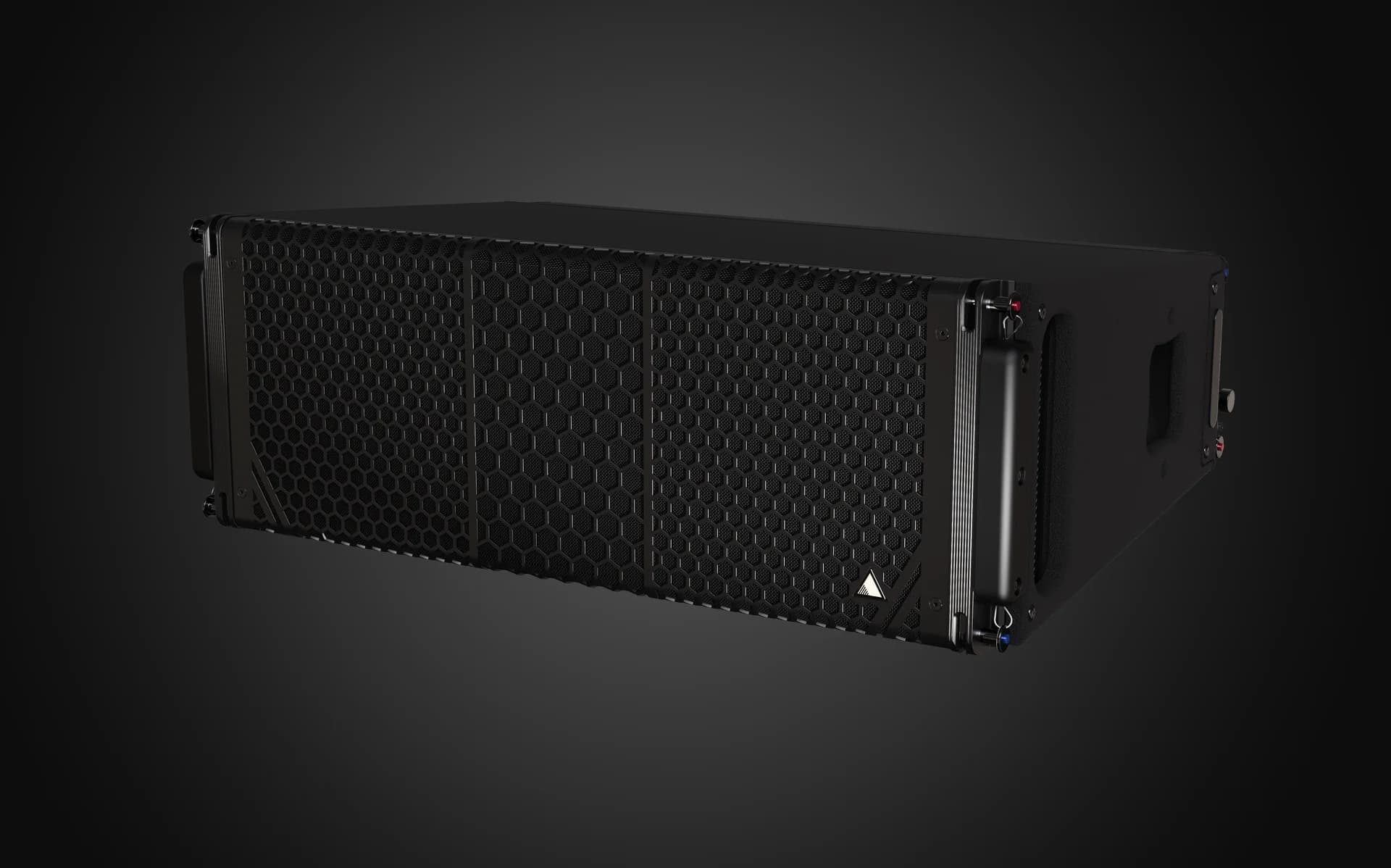

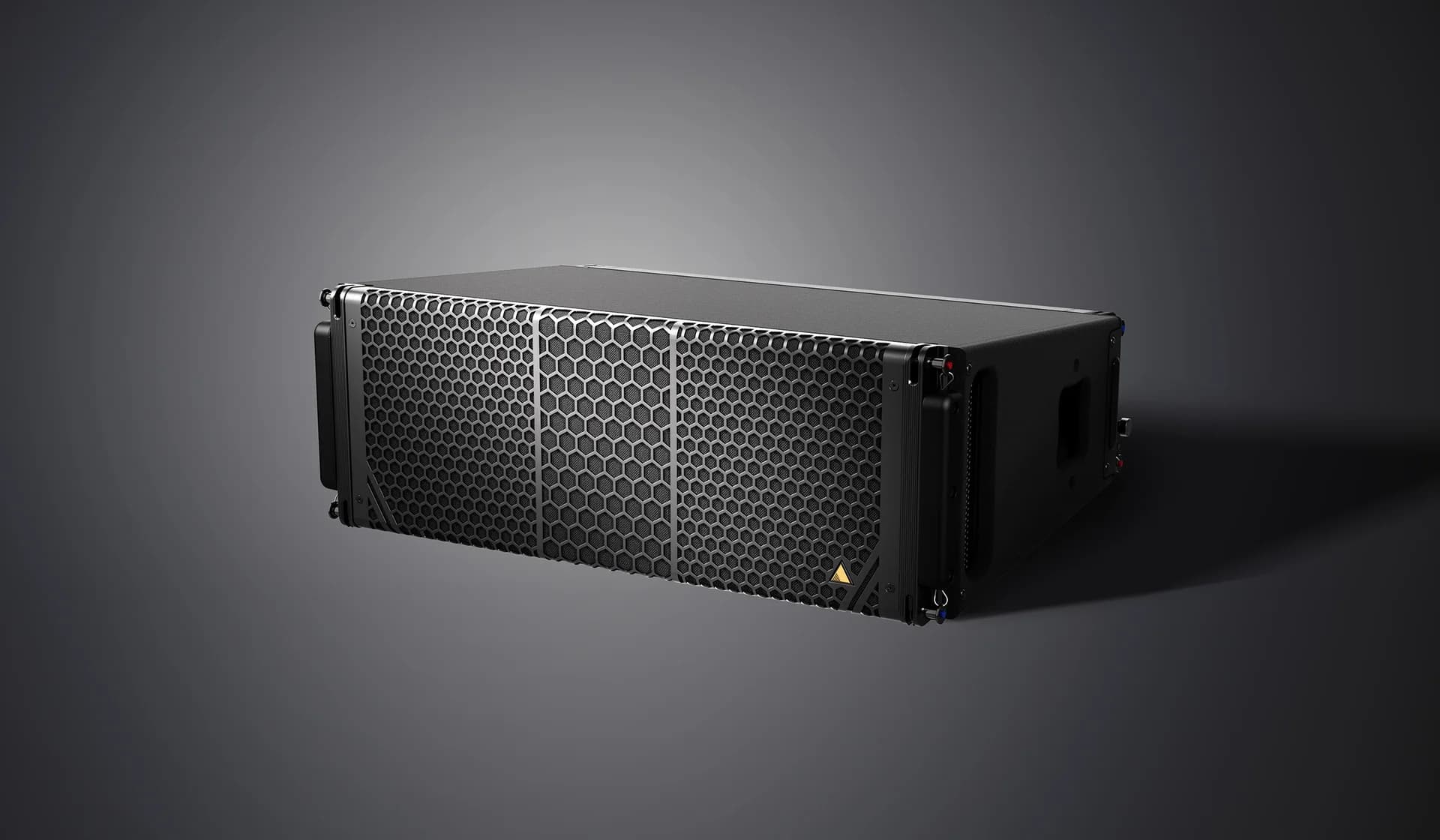

The CS10 is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS10 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software. Acoustically, the CS10 contains 2x 10-inch Kevlar® Neodymium transducers and a 4” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Patented Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. Please refer to the CS10 User Manual for further information.
Line Source
Line Source
The CS10n is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS10n employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software. Acoustically, the CS10n contains 2x 10-inch Kevlar® Neodymium transducers and a 4” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The narrower horizontal pattern allows for increased usability in reflective spaces as well as increased long-throw capability of a CS-Series package. he cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. Please refer to the CS10n User Manual for further information.
Point Source
Point Source

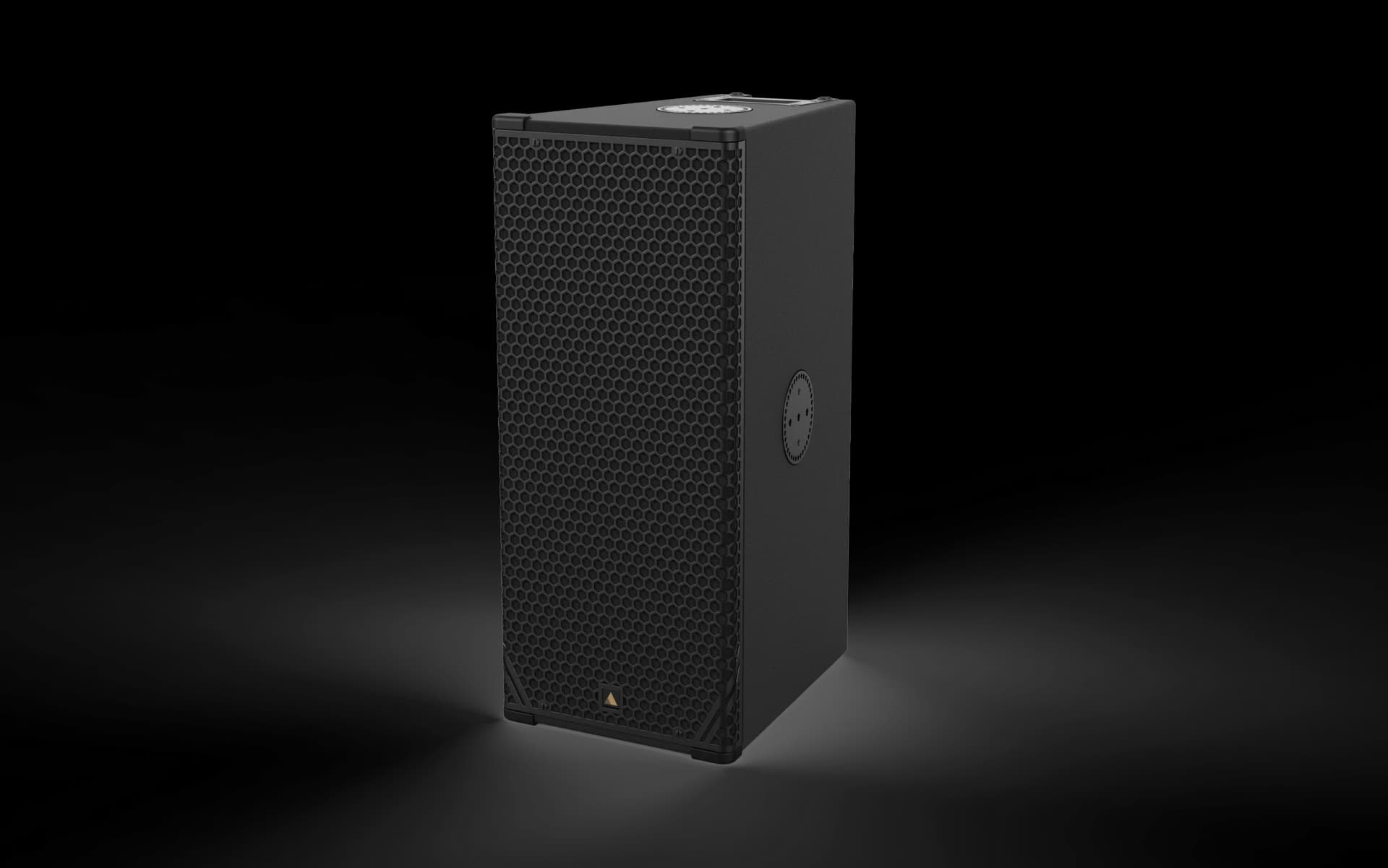

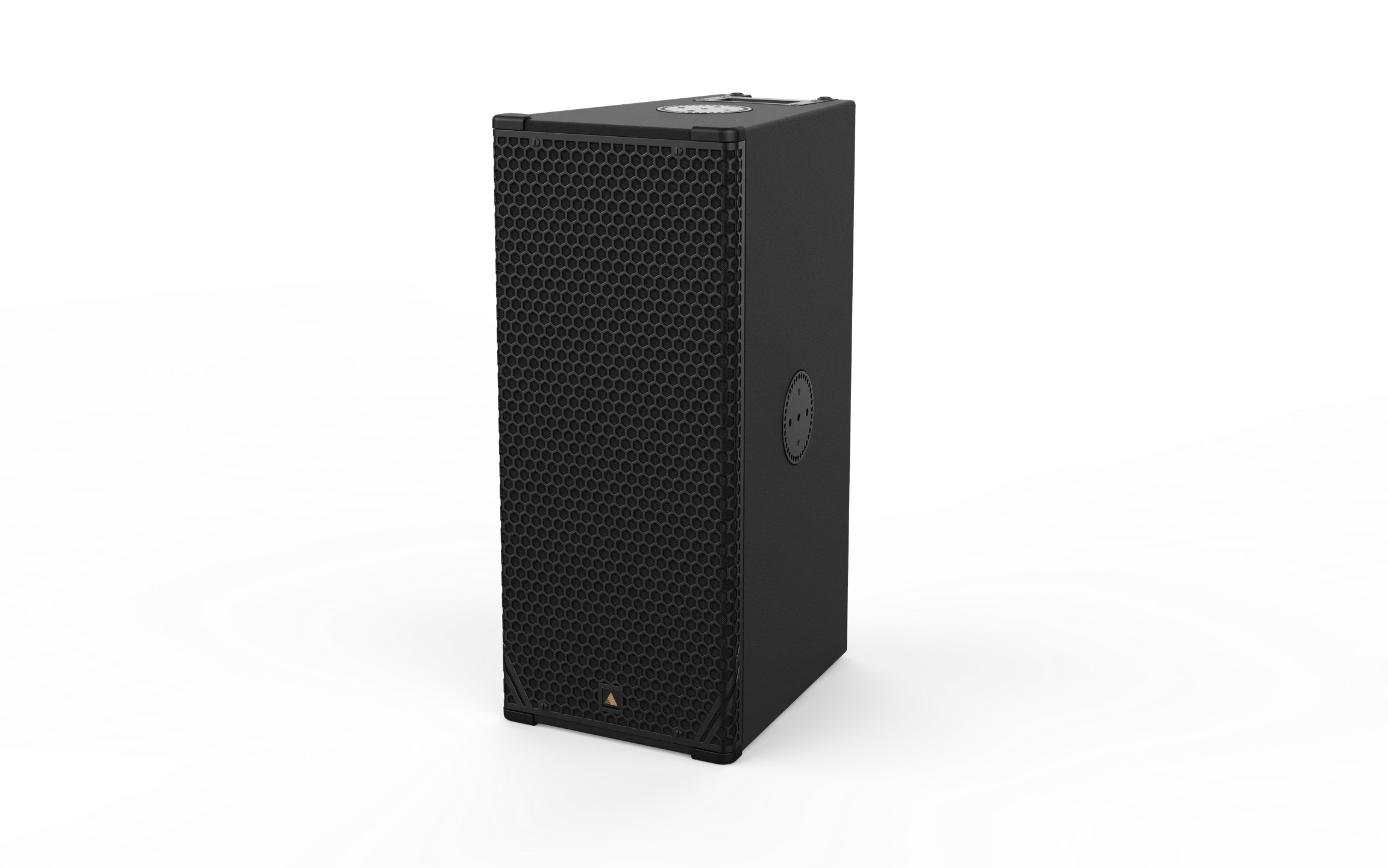

The CS10p is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS10p employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software. Acoustically, the CS10p contains 2x 10-inch Kevlar® Neodymium transducers and a 3” compression driver, loaded with either a 70° x 40° or a 100° x 50° (H x V) waveguide, each rotatable by 90 degrees. The dipole arrangement of the cabinet results in a stable polar response, meaning the CS10p can be easily paired to increase horizontal coverage and overall output. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions. Please refer to the CS10p User Manual for further information.
Subwoofer
Subwoofer

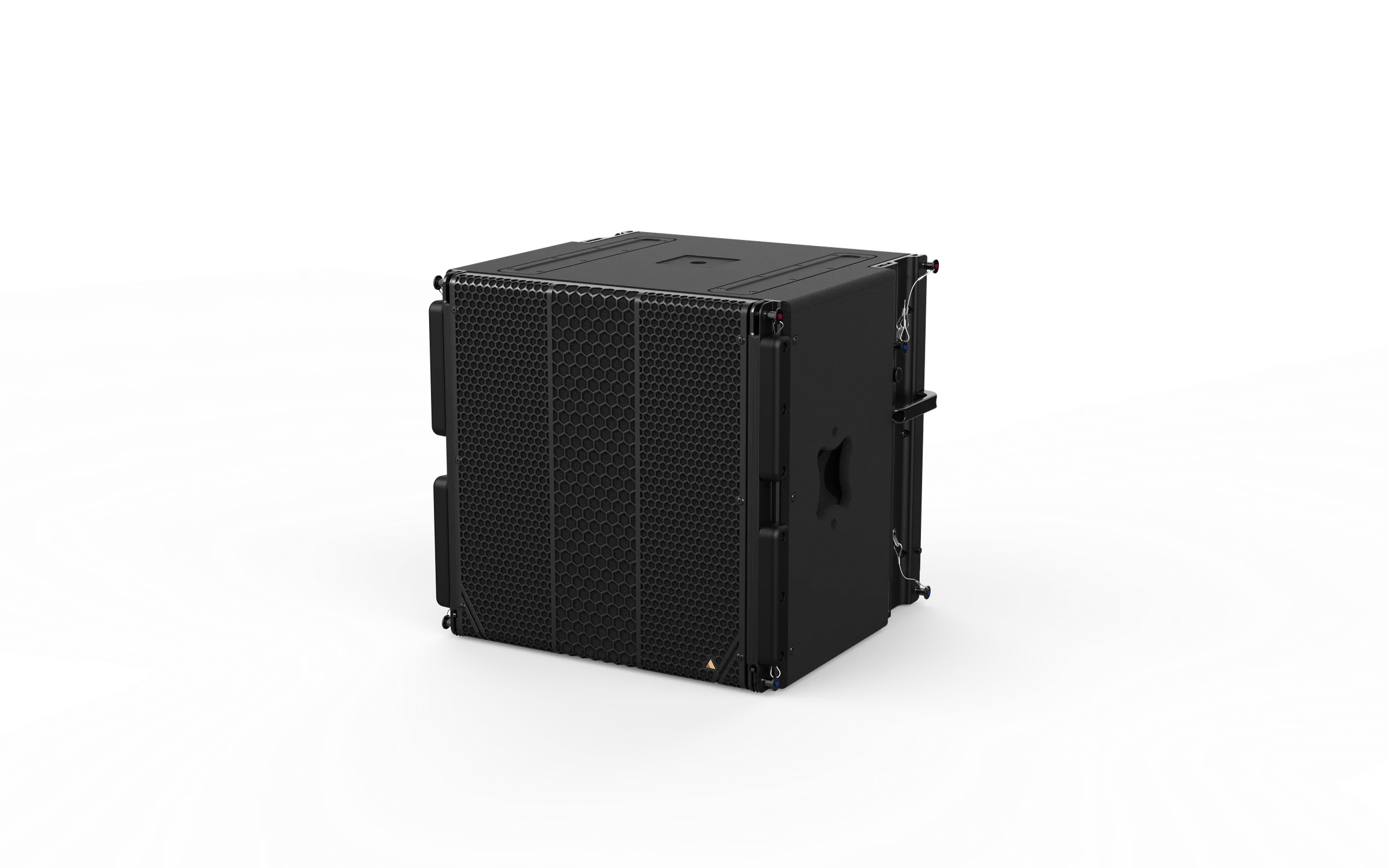

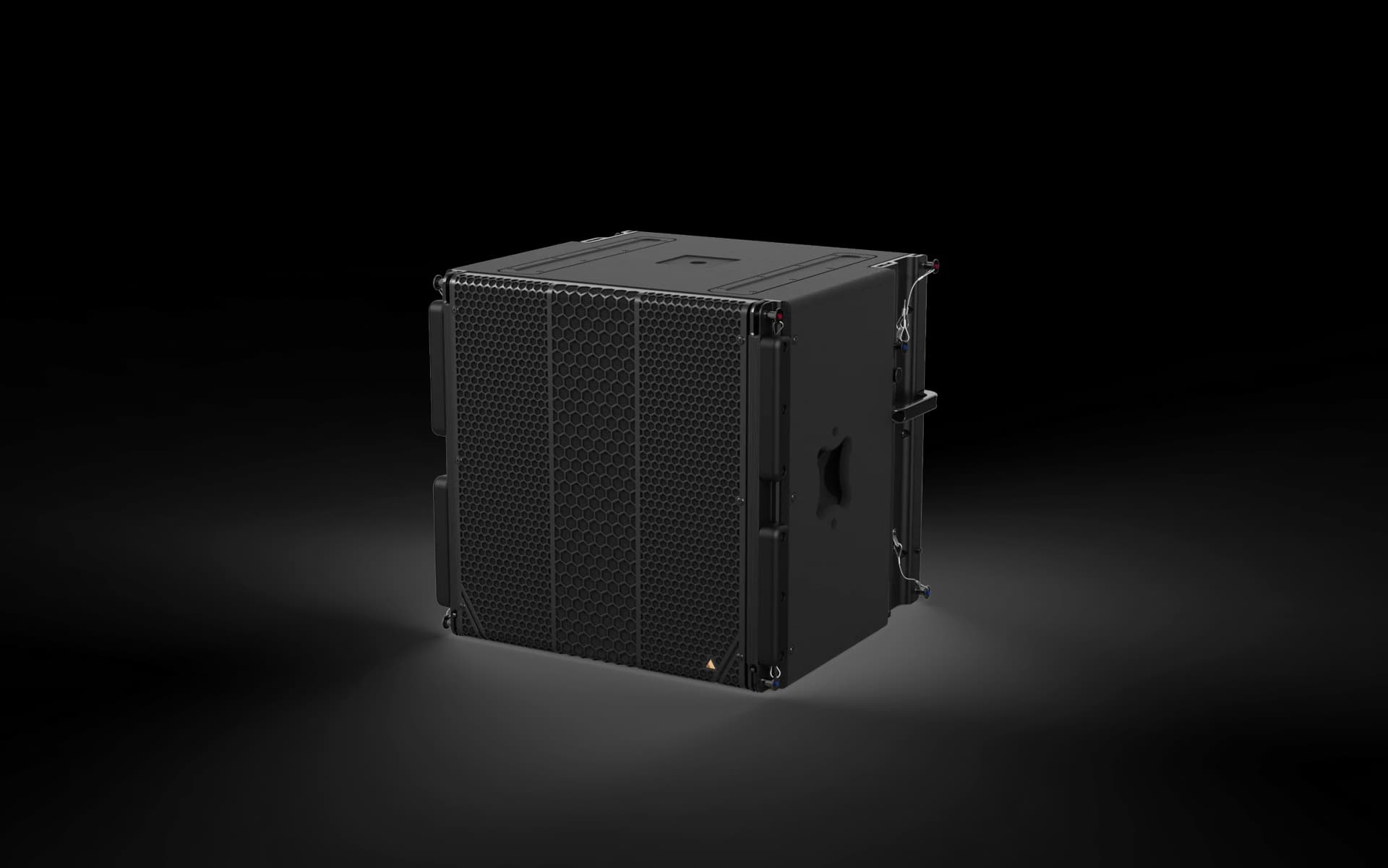

The CS118 Subwoofer is the companion subwoofer to the CS7 & CS7p. Utilizing Adamson’s proprietary network platform, the CS118 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the subwoofer are controlled and monitored through Adamson’s proprietary AI software. The CS118 is front-loaded with a light weight, long excursion, 18” ND18-S Kevlar® Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 4” voice coil for exceptional power handling. This driver is mounted in an ultra-efficient enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions. Please refer to the CS118 User Manual for further information
Subwoofer
Subwoofer

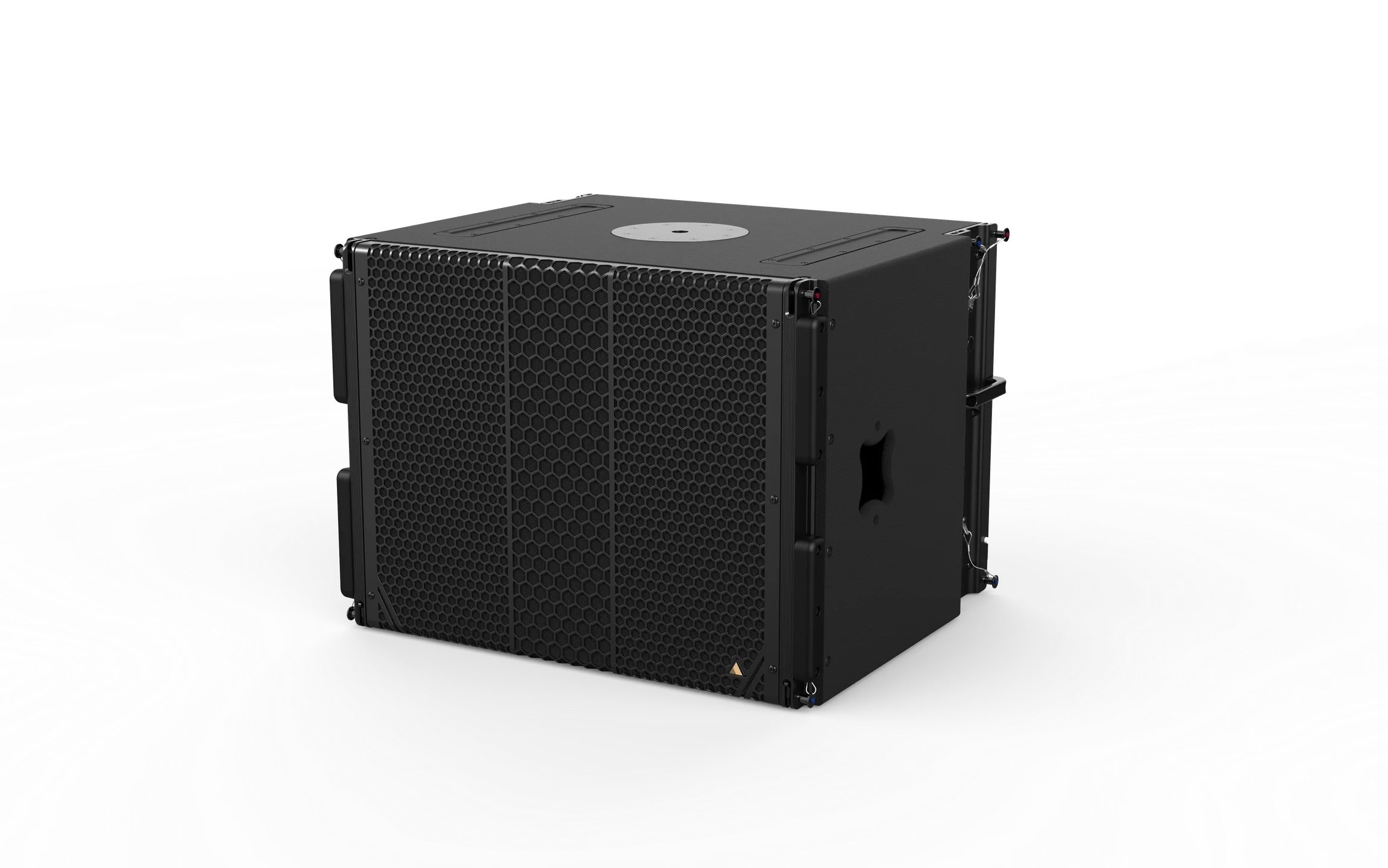

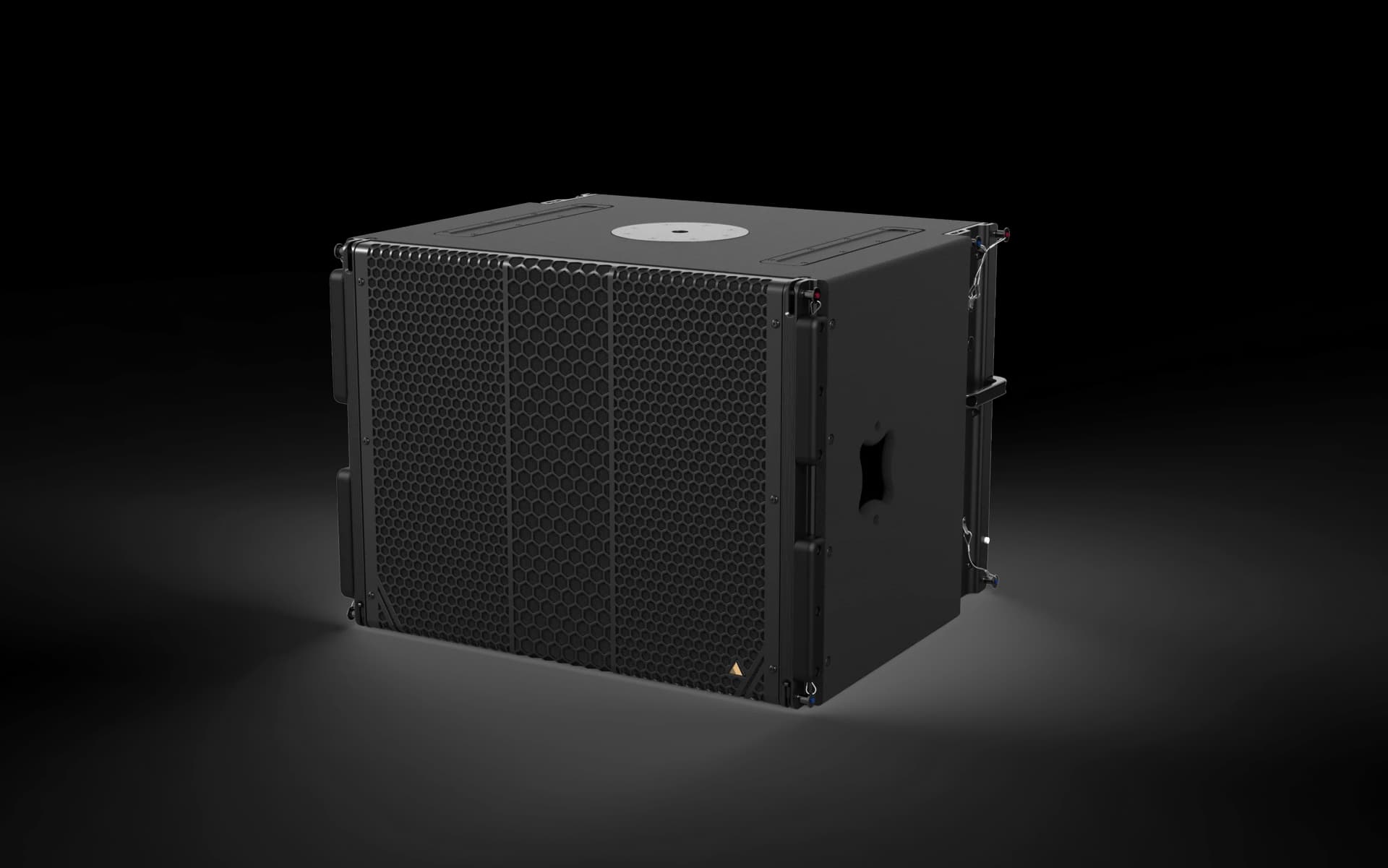

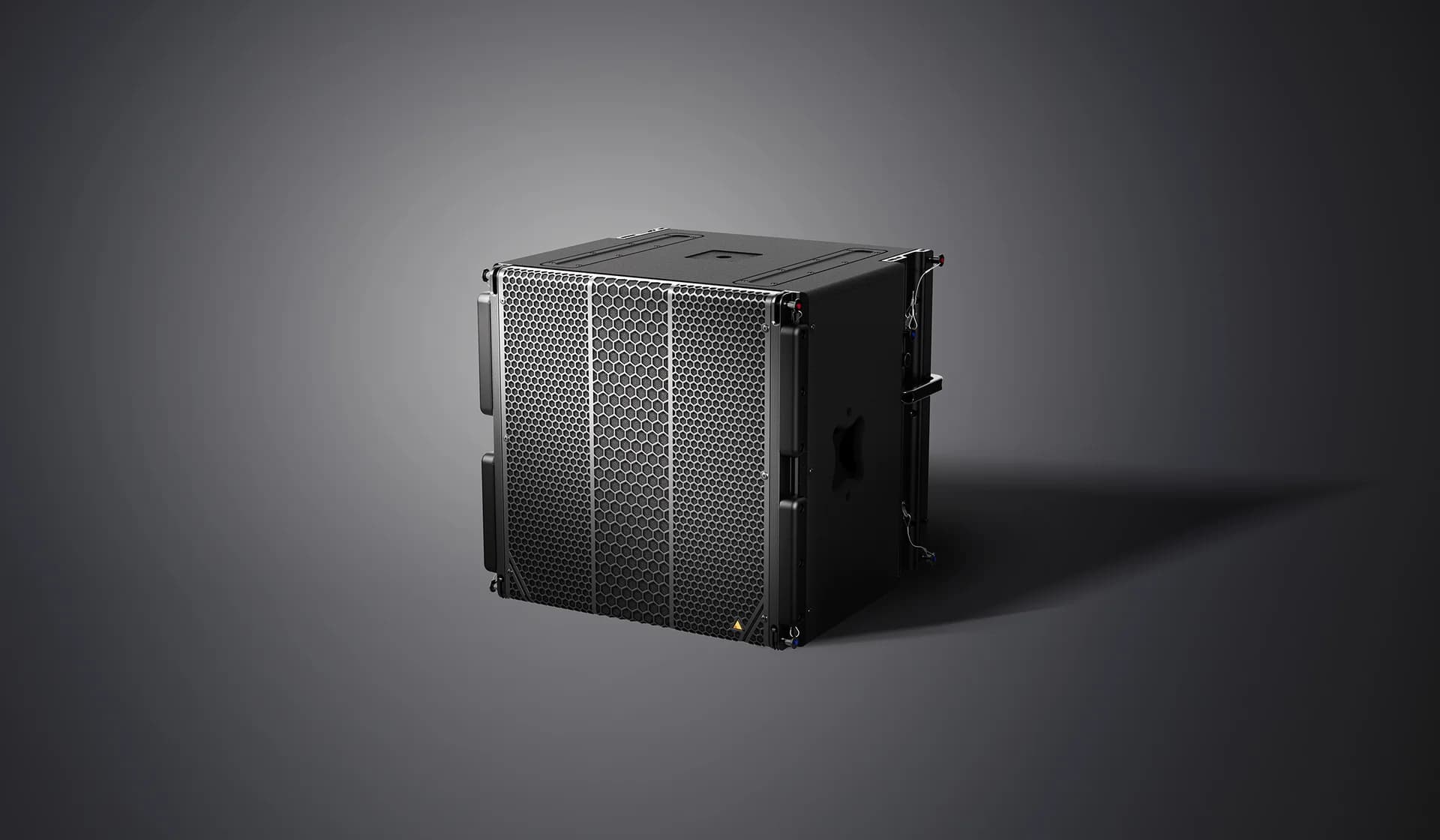

The CS119 is the larger subwoofer in the CS-Series, intended as a companion subwoofer to the CS10 & CS10p. Utilizing Adamson’s proprietary network platform, the CS119 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the subwoofer are controlled and monitored through Adamson’s proprietary AI software. The CS119 is loaded with a light weight, long excursion, 19” ND19 Kevlar® Neodymium driver utilizing Adamson’s Advanced Cone Architecture. The driver is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions. Please refer to the CS119 User Manual for further information.
Line Source
Line Source

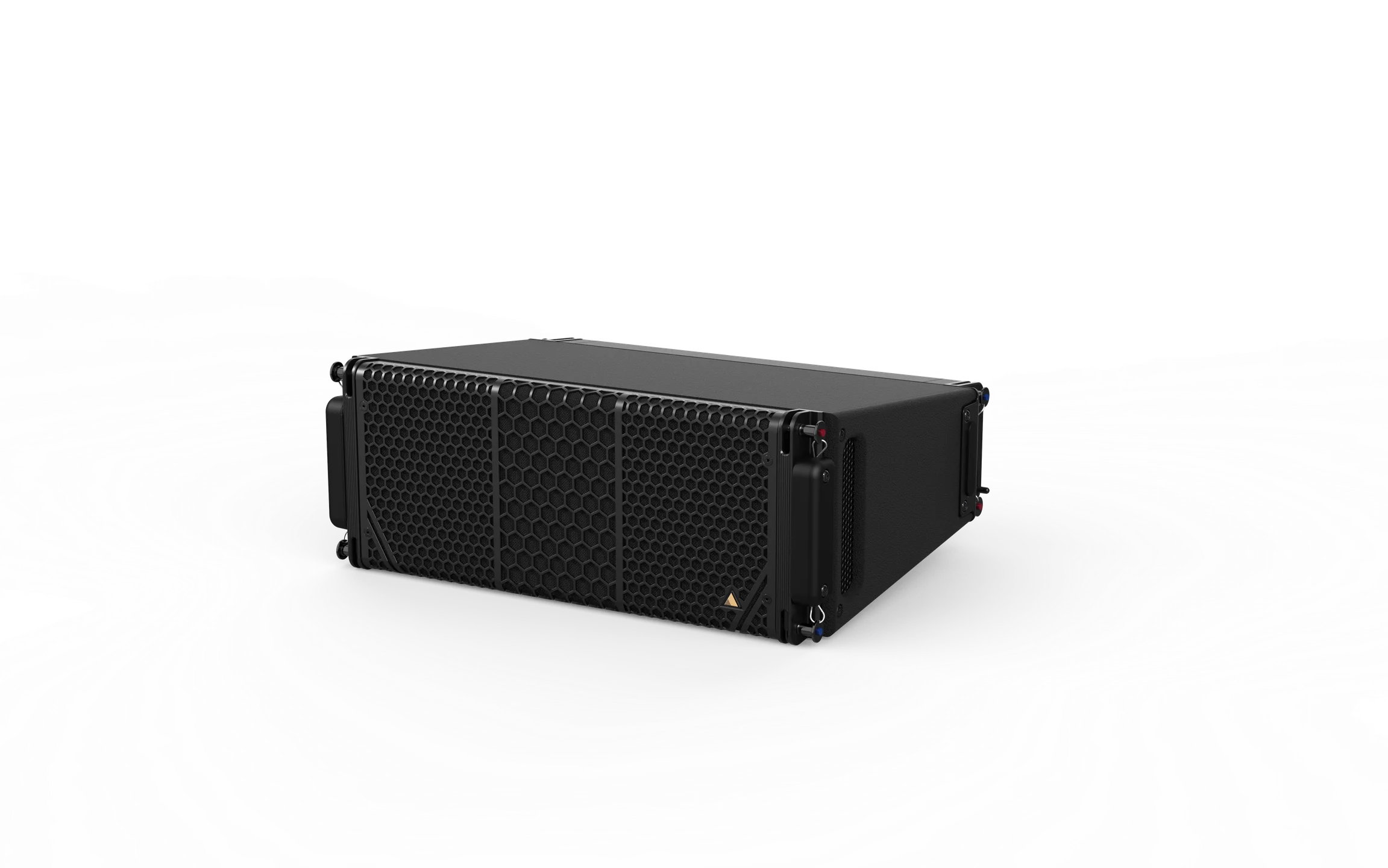

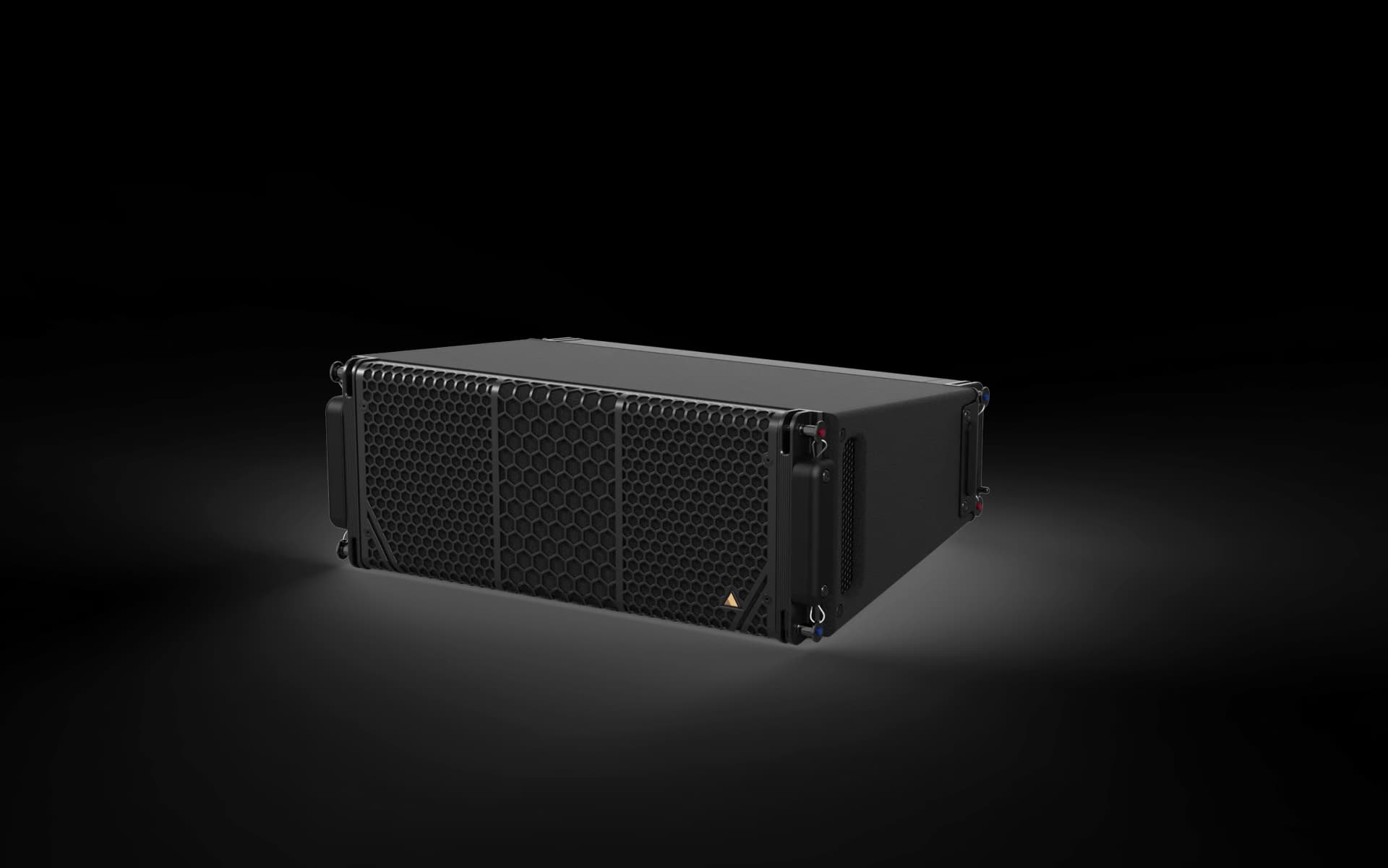

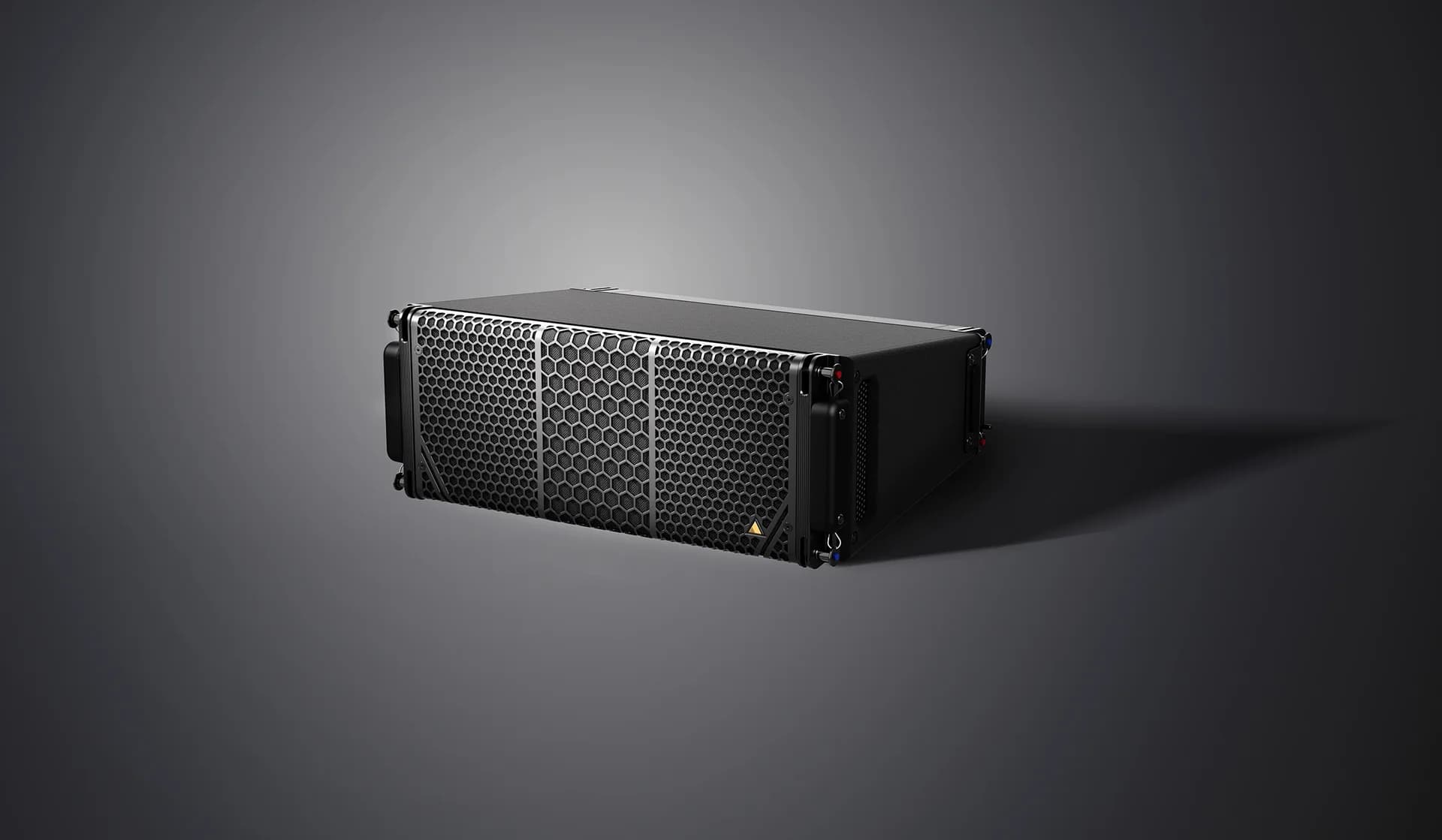

The CS7 is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS7 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software. Acoustically, the CS7 contains 2x 7-inch Kevlar® Neodymium transducers and a 3” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 100°x 12.5° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Adamson’s Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. Please refer to the CS7 User Manual for further information.
Point Source
Point Source

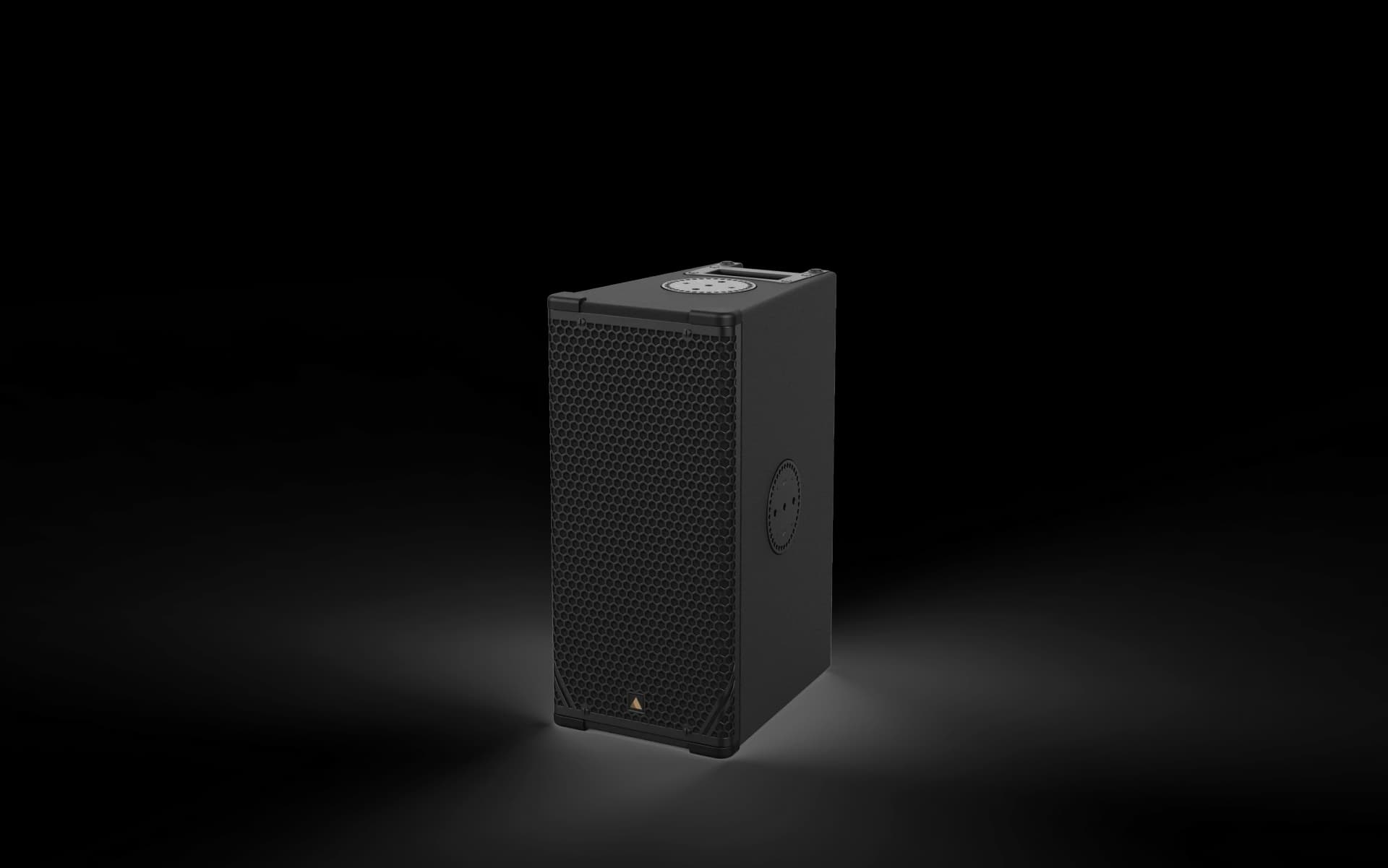

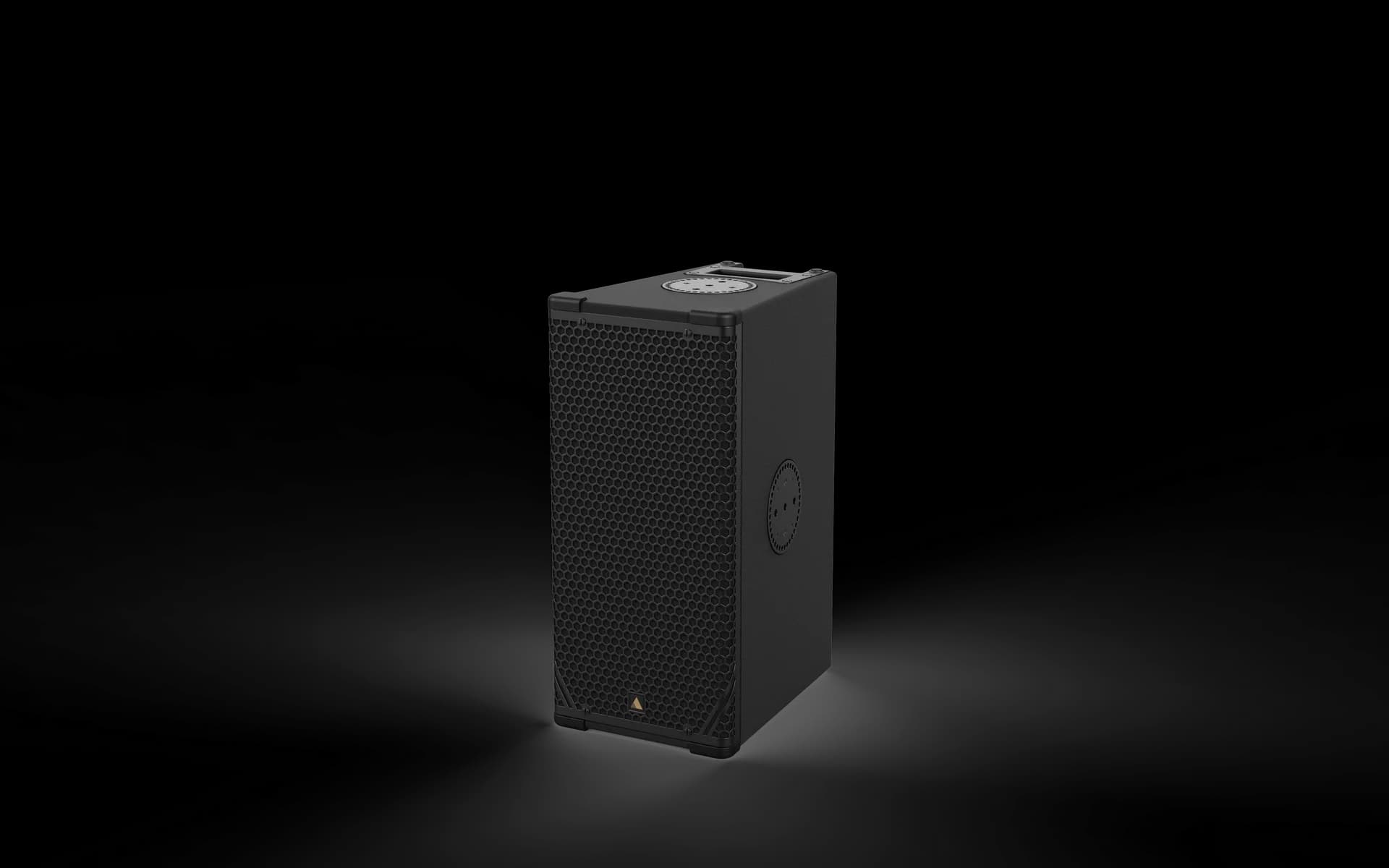

The CS7p is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS7p employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software. Acoustically, the CS7p contains 2x 7-inch Kevlar® Neodymium transducers and a 3” compression driver, loaded with either a 70° x 40° or a 100° x 50° (H x V) waveguide, each rotatable by 90 degrees. The dipole arrangement of the cabinet results in a stable polar response, meaning the CS7p can be easily paired to increase horizontal coverage and overall output. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. The rigging system offers a wide variety of possible solutions. Please refer to the CS7p User Manual for further information.
