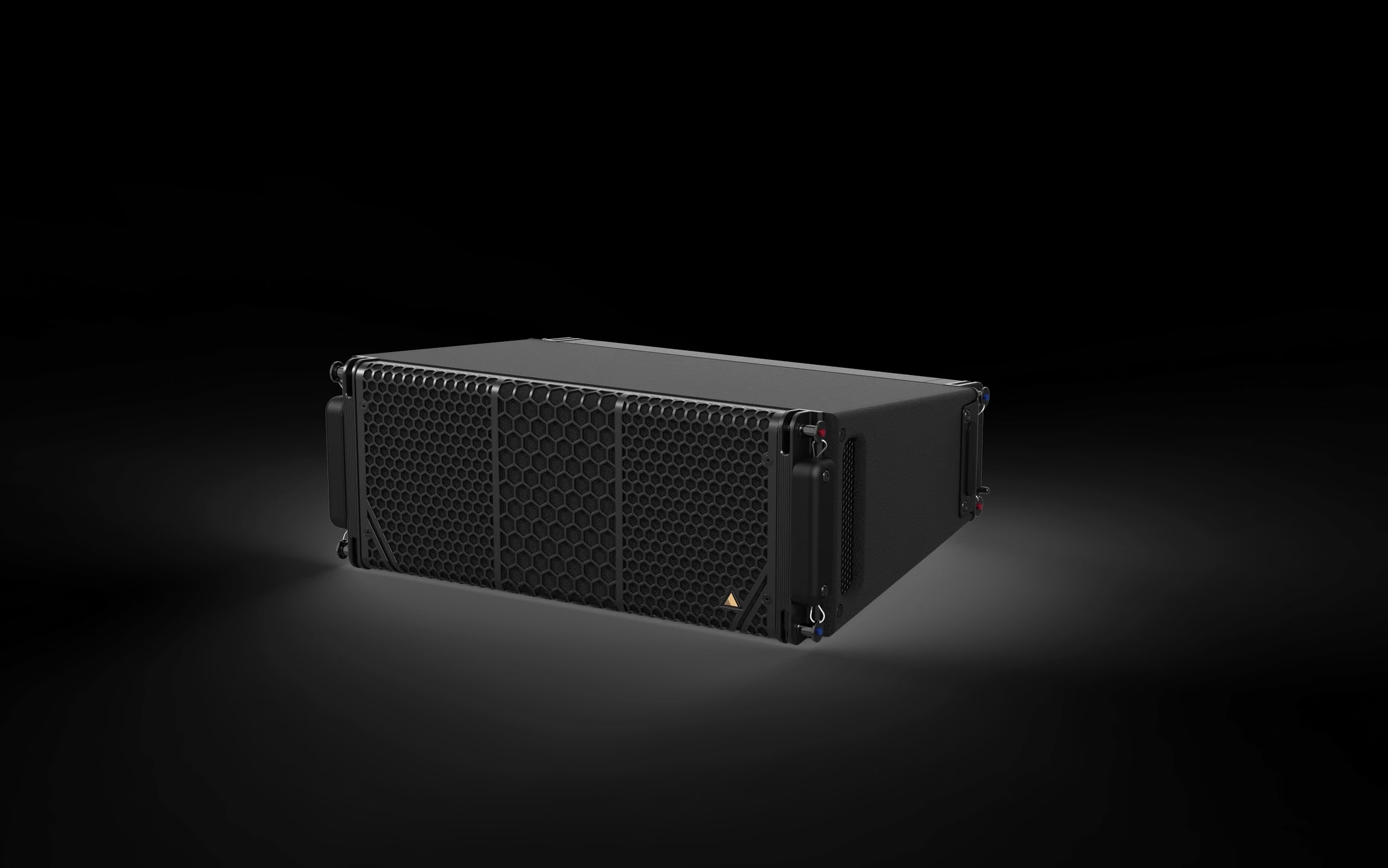

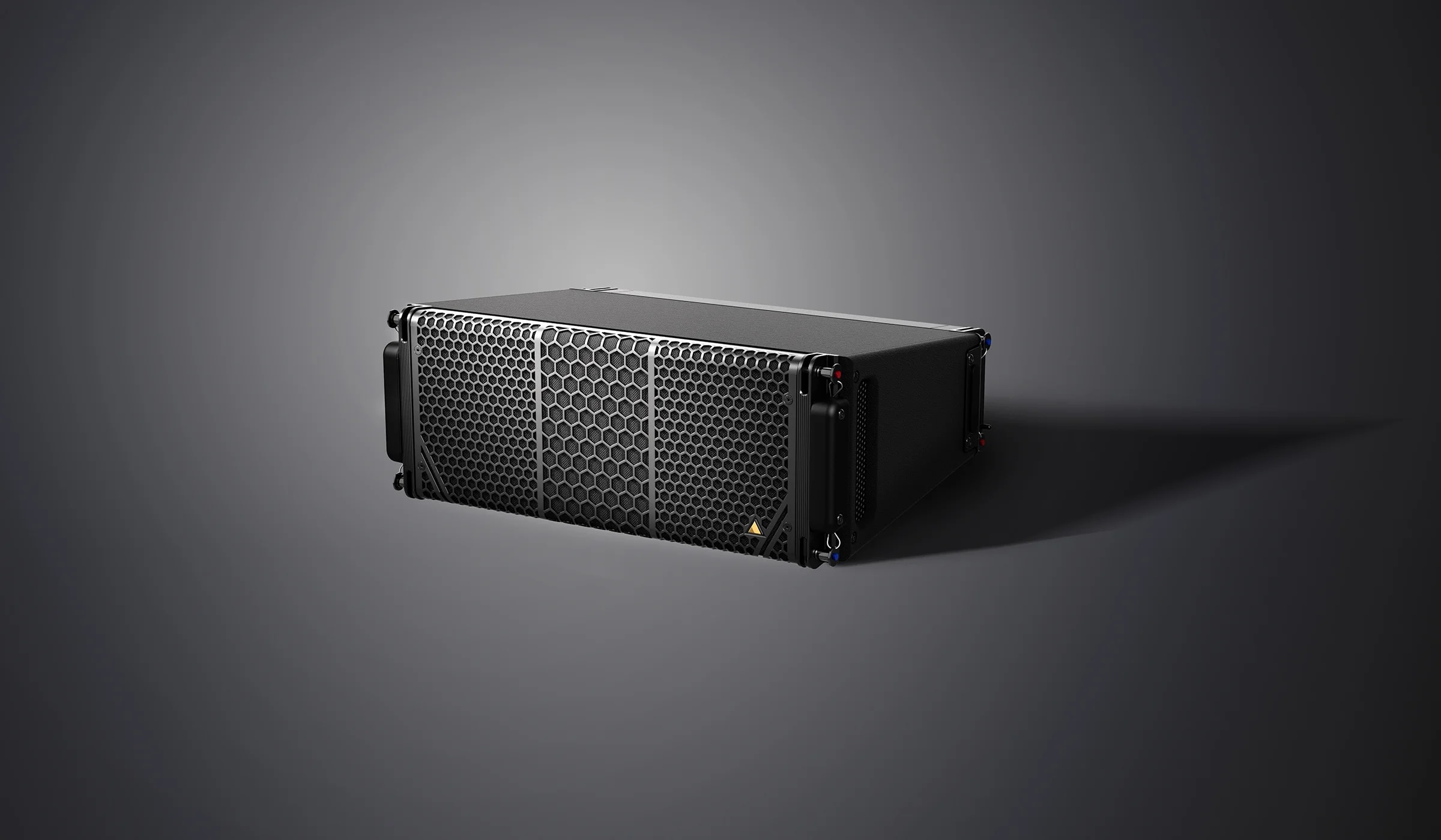

The CS7 is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS7 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software.
Acoustically, the CS7 contains 2x 7-inch Kevlar® Neodymium transducers and a 3” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 100°x 12.5° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Adamson’s Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection. Please refer to the CS7 User Manual for further information.
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 100° x 12.5° |
| Maximum Peak SPL** | 138 dB |
| Components LF | 2x ND7-LM16 7” Kevlar® Neodymium Driver |
| Components HF | Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver |
| Rigging | Slidelock Rigging System |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 203 / 8 |
| Height Back (mm / in) | 122 / 4.8 |
| Width (mm / in) | 527 / 20.75 |
| Depth (mm / in) | 411 / 16.2 |
| Weight (kg / lbs) | 17.5 / 38.6 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 - 240 V |
| Current Draw at 230v | 0.45 A rms idle, 1.6 A rms long-term, 9 A max peak |
| Supported Processing | Onboard / Proprietary |
