Line Source

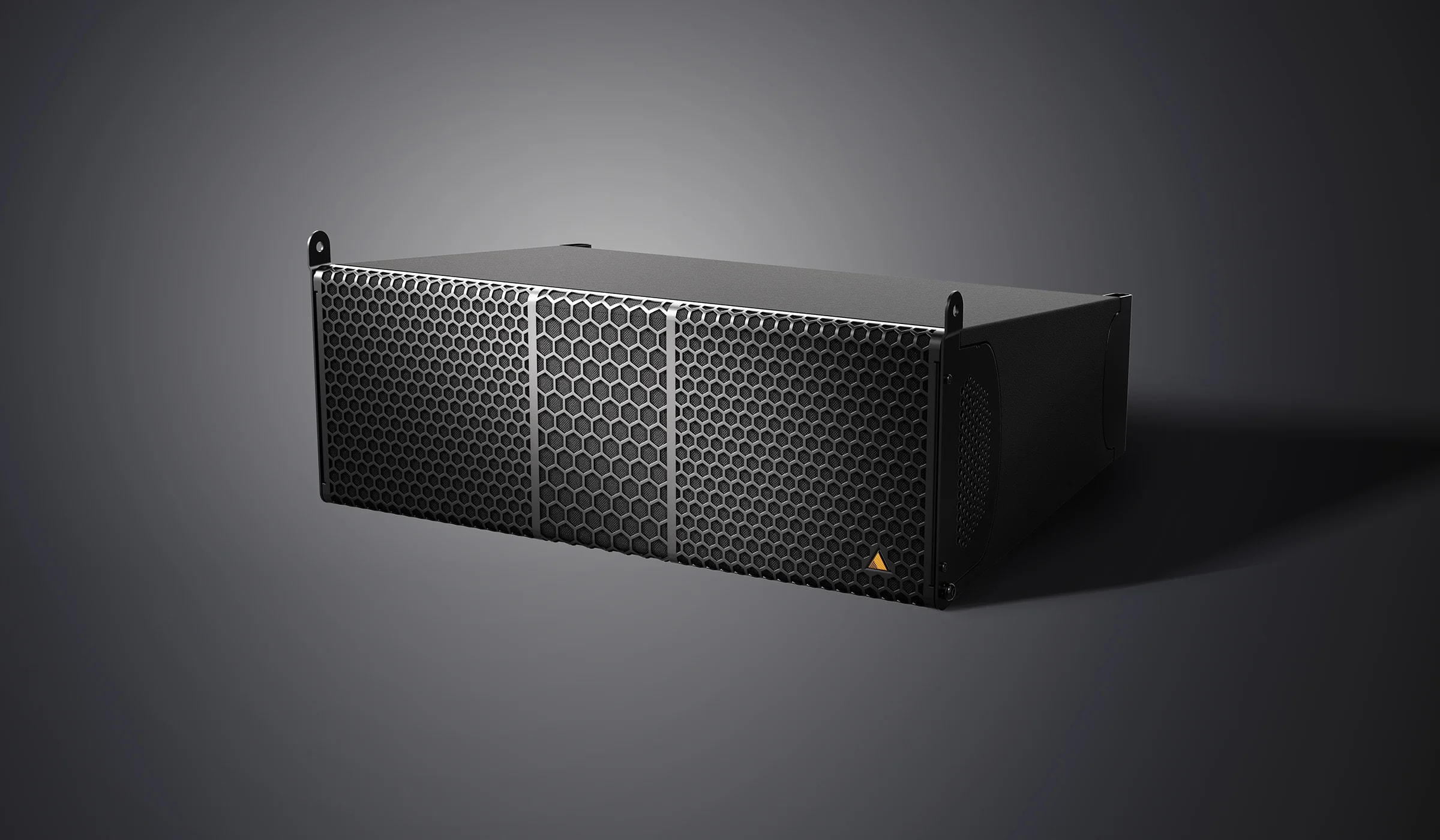

The IS10n is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum, and is equipped with two Speakon™ NL4 connectors (IS10n), or barrier strips (IS10nb). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly.
The IS10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10n to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 80° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2 X ND10-LM |
| Components HF | Adamson NH4TA2 4” Diaphragm / 1.5” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 160 / 640 W |
| Rigging | Integrated Rigging System |
| Connection | 2x Speakon™ NL4 or Barrier Strips / IP67 Cable Gland with Weatherized |
| Height Front (mm / in) | 300 / 11.8 |
| Height Back (mm / in) | 175 / 6.9 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 518 / 20.4 |
| Weight (kg / lbs) | 25 / 55.2 |
| Supported Processing | Lake |
