Sleek, unobtrusive design meets high performance in the compact, integration focused IS-Series.
Line Source
Line Source

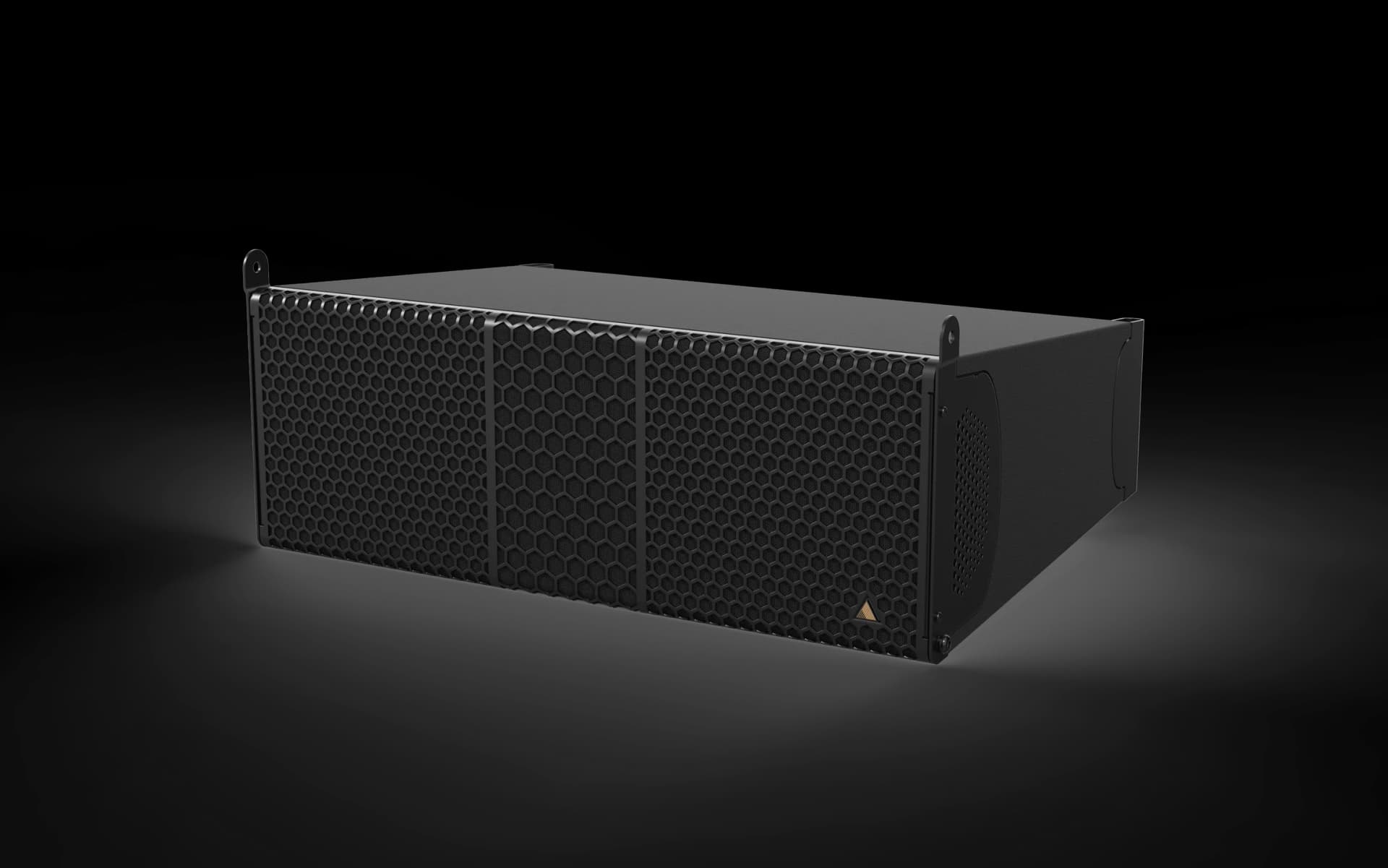

The IS10 is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS10), or barrier strips (IS10b). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly. The IS10 is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10 to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.
Line Source
Line Source

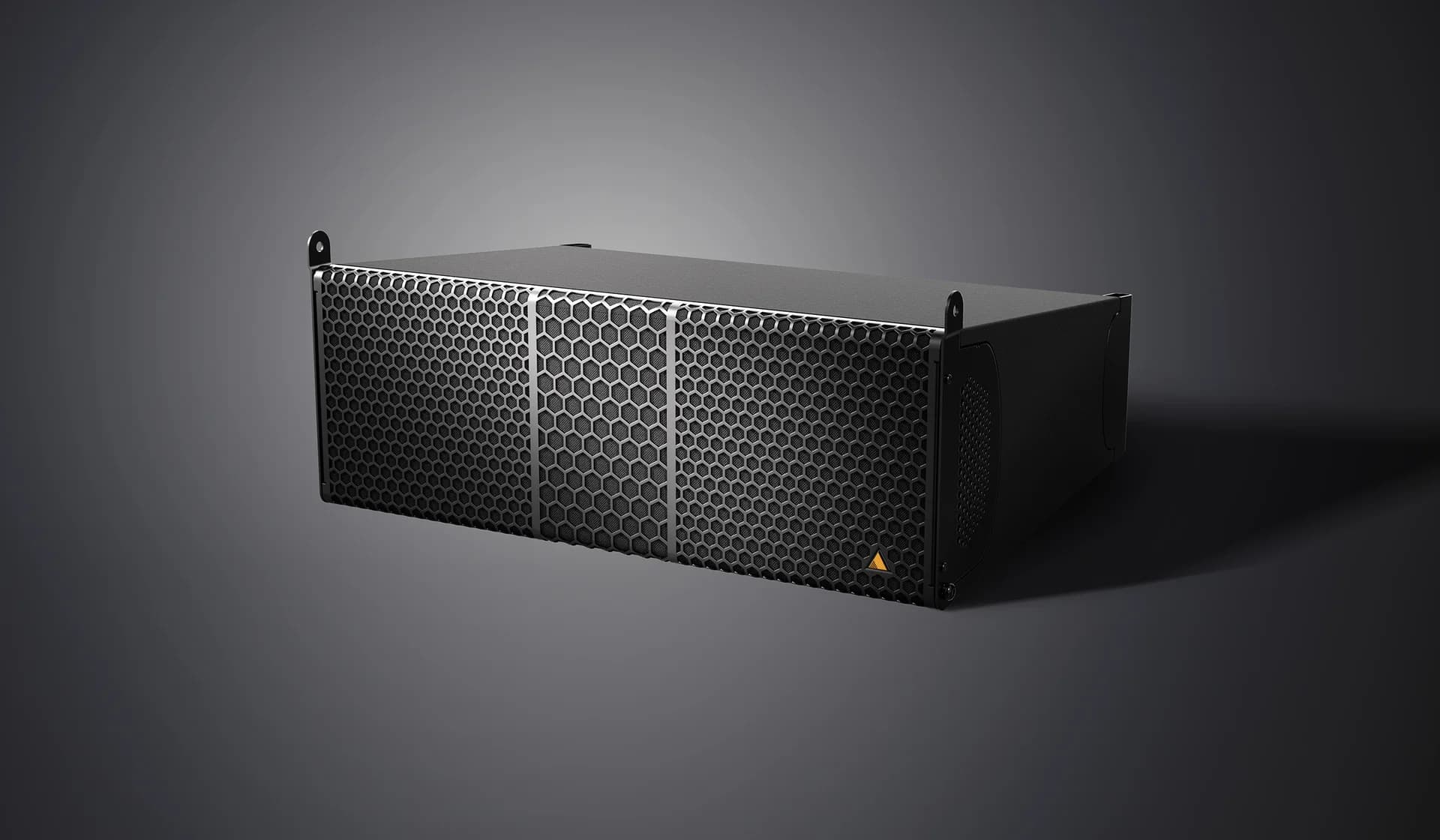

The IS10n is a 2-way, full range line array cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum, and is equipped with two Speakon™ NL4 connectors (IS10n), or barrier strips (IS10nb). A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly. The IS10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the IS10n to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, large meeting rooms and contemporary churches.
Point Source
Point Source

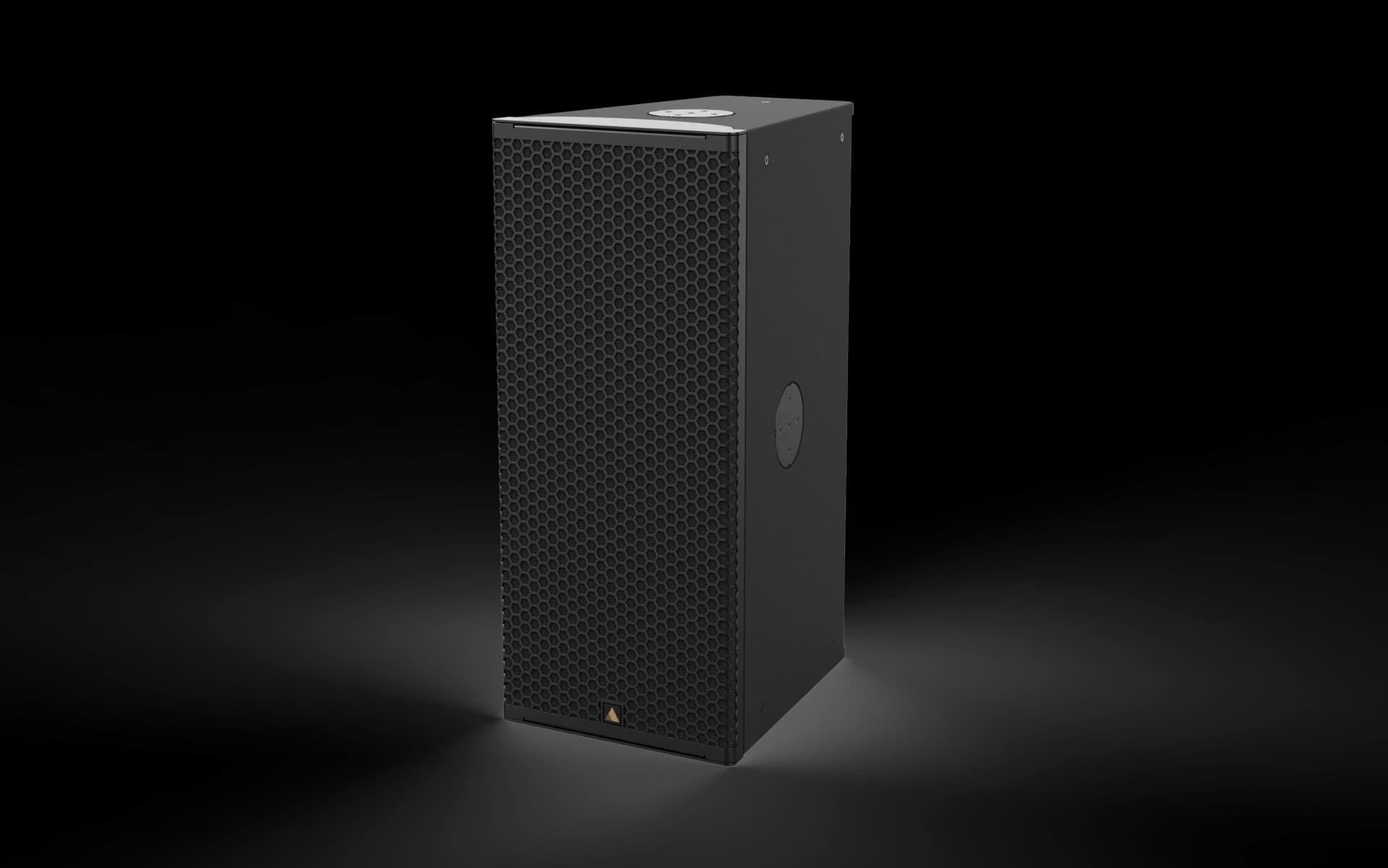

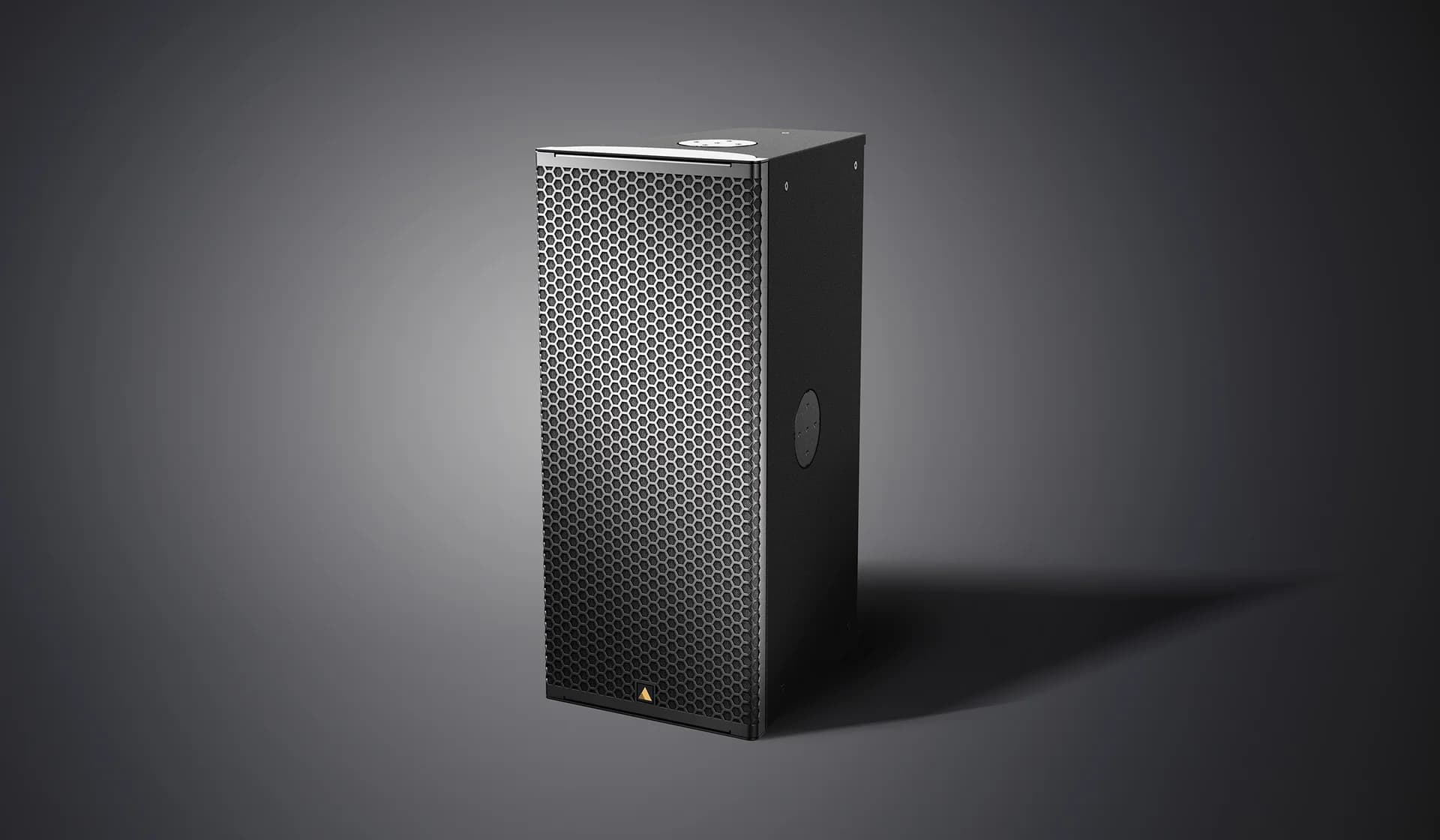

The IS10p is a 2-way, full range point source cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguide produces a nominal dispersion pattern of 70° x 40° or 100° x 50° (H x V), rotateable in 90° increments. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, ensuring a natural sound with no diffraction or lobing. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS10p), or barrier strips (IS10pb). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The IS10p is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS10p to supplement larger systems as a fill cabinet when in use in theaters, arenas and stadiums. Other target applications include dance clubs, large meeting rooms and contemporary churches.
Subwoofer
Subwoofer

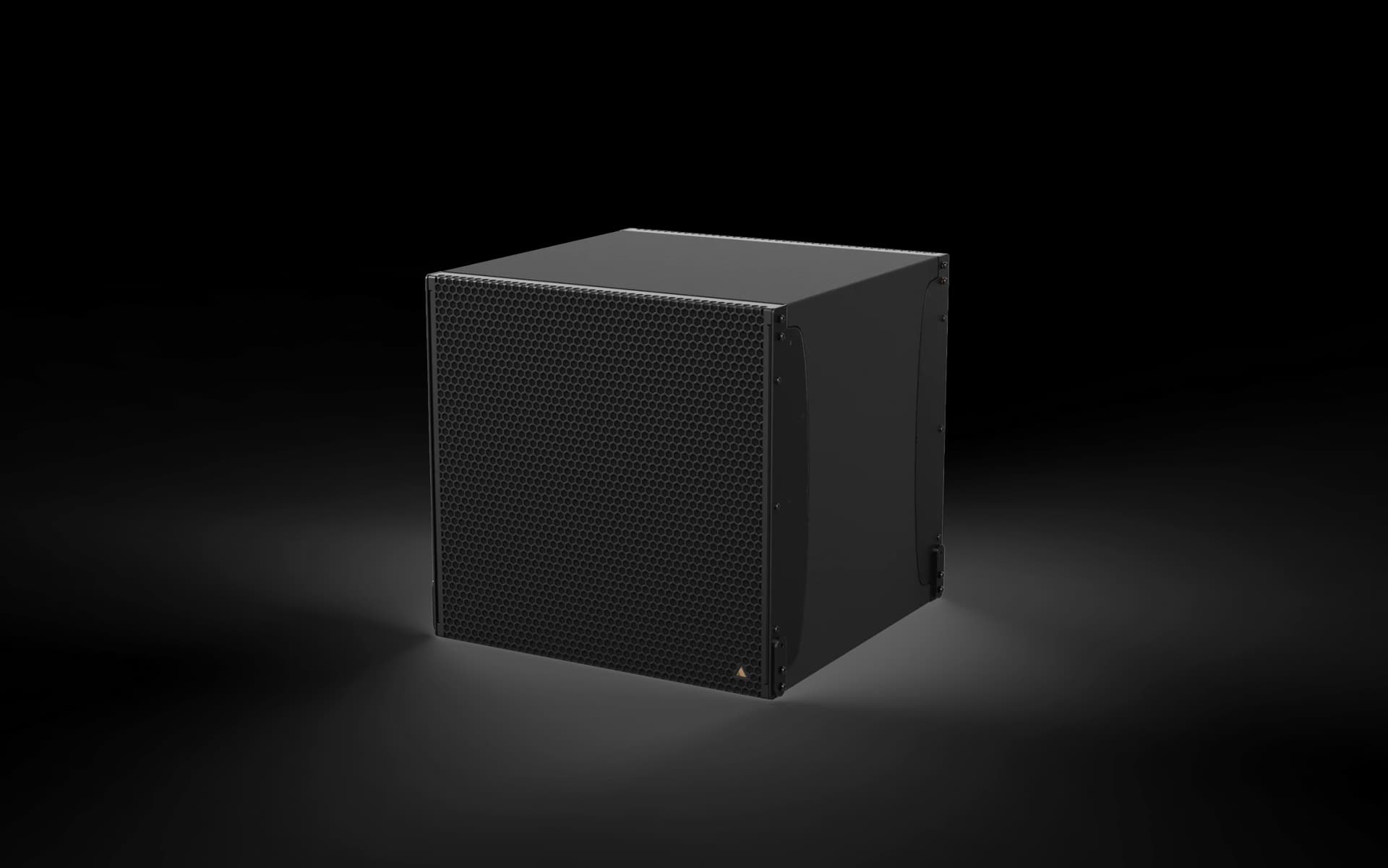

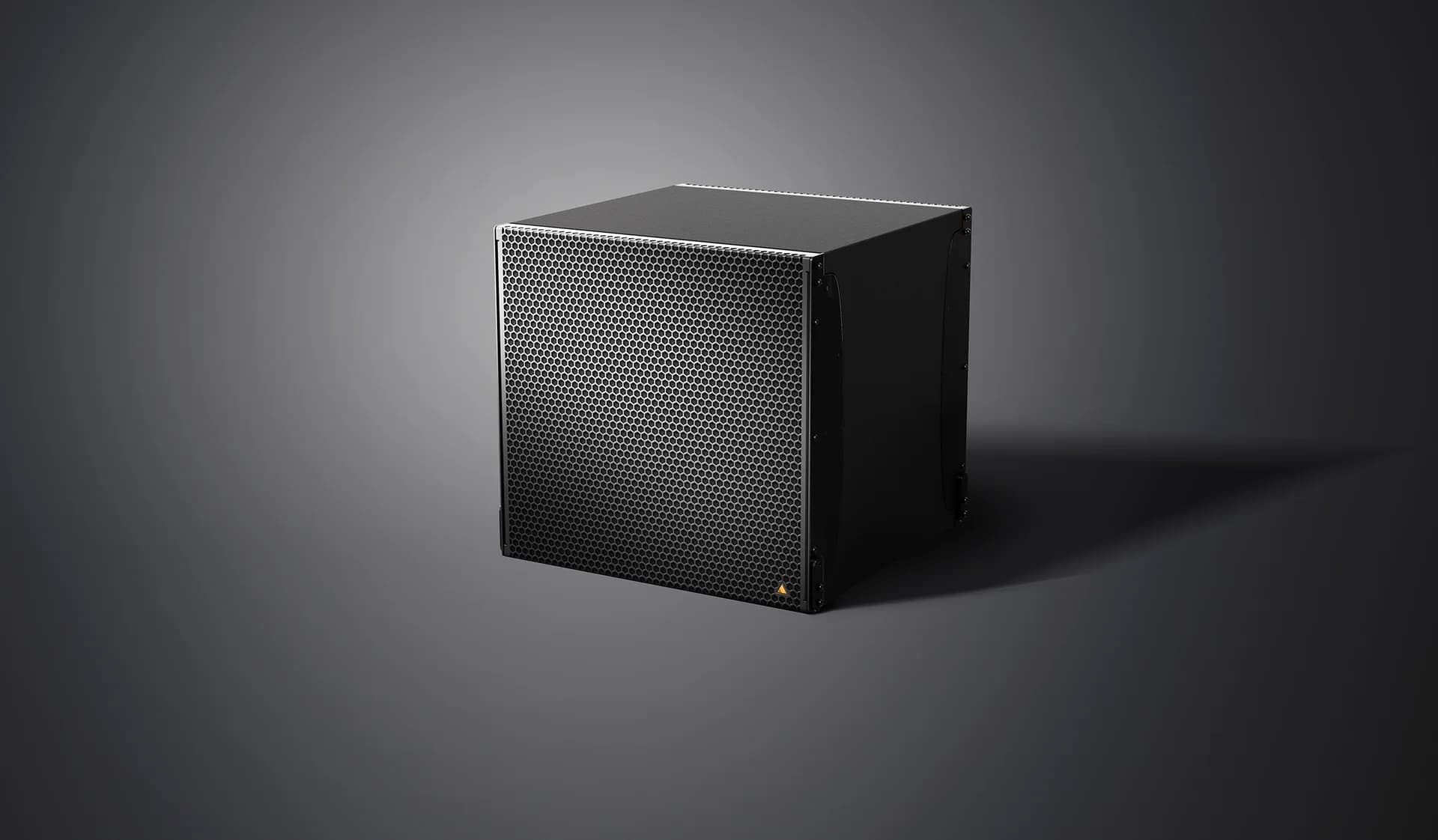

The IS118 is the companion subwoofer to the IS7. The enclosure is loaded with a light weight, long excursion, 18” ND18-S Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two front and back Speakon™ NL4 connectors, or barrier strips available upon request. A dual grill solution is used so that when arranged in cardioid mode, the appearance does not change. The integrated rigging system matches the rigging for the IS7 and can be flown in the same array with a simple adapter frame.
Subwoofer
Subwoofer

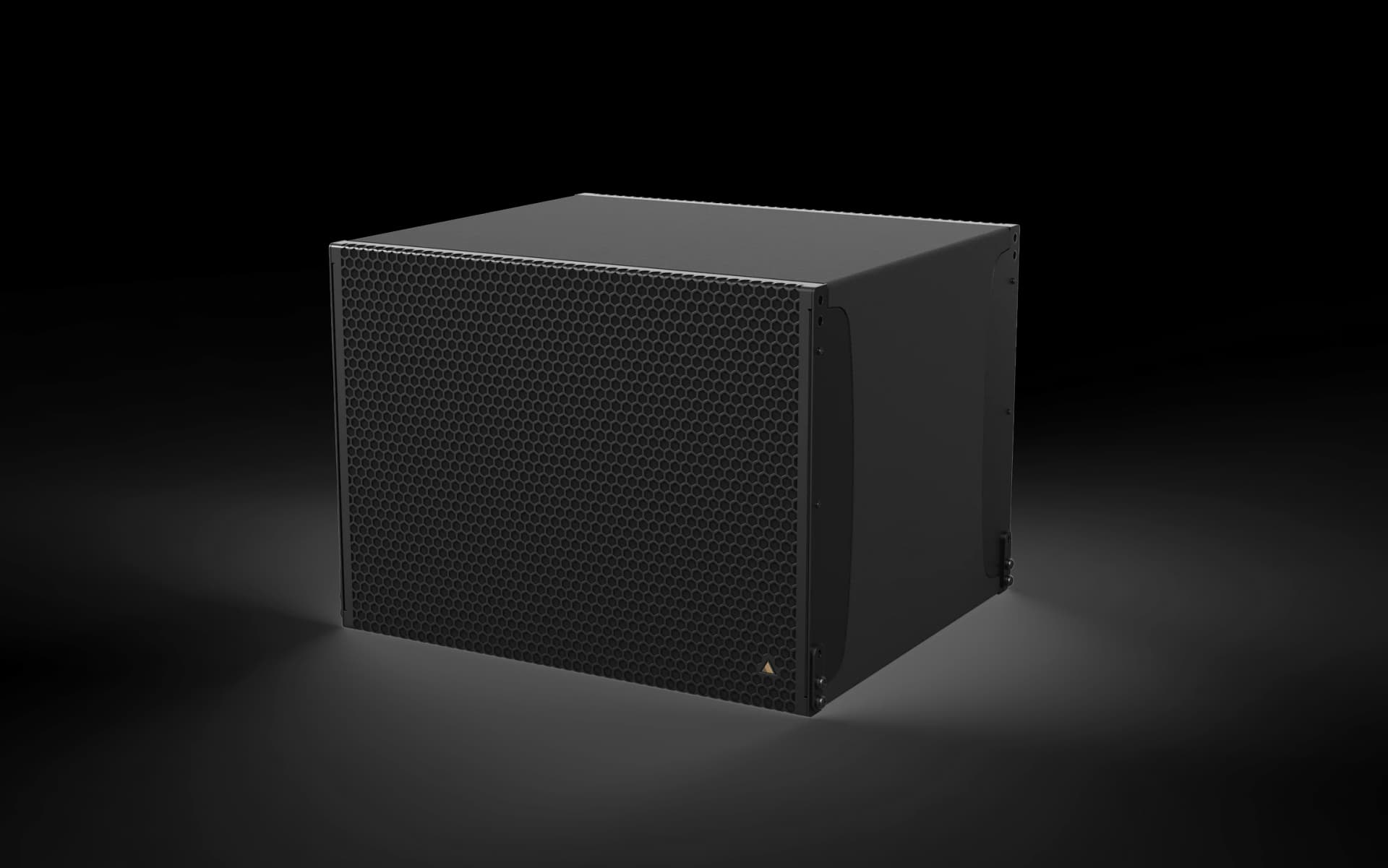

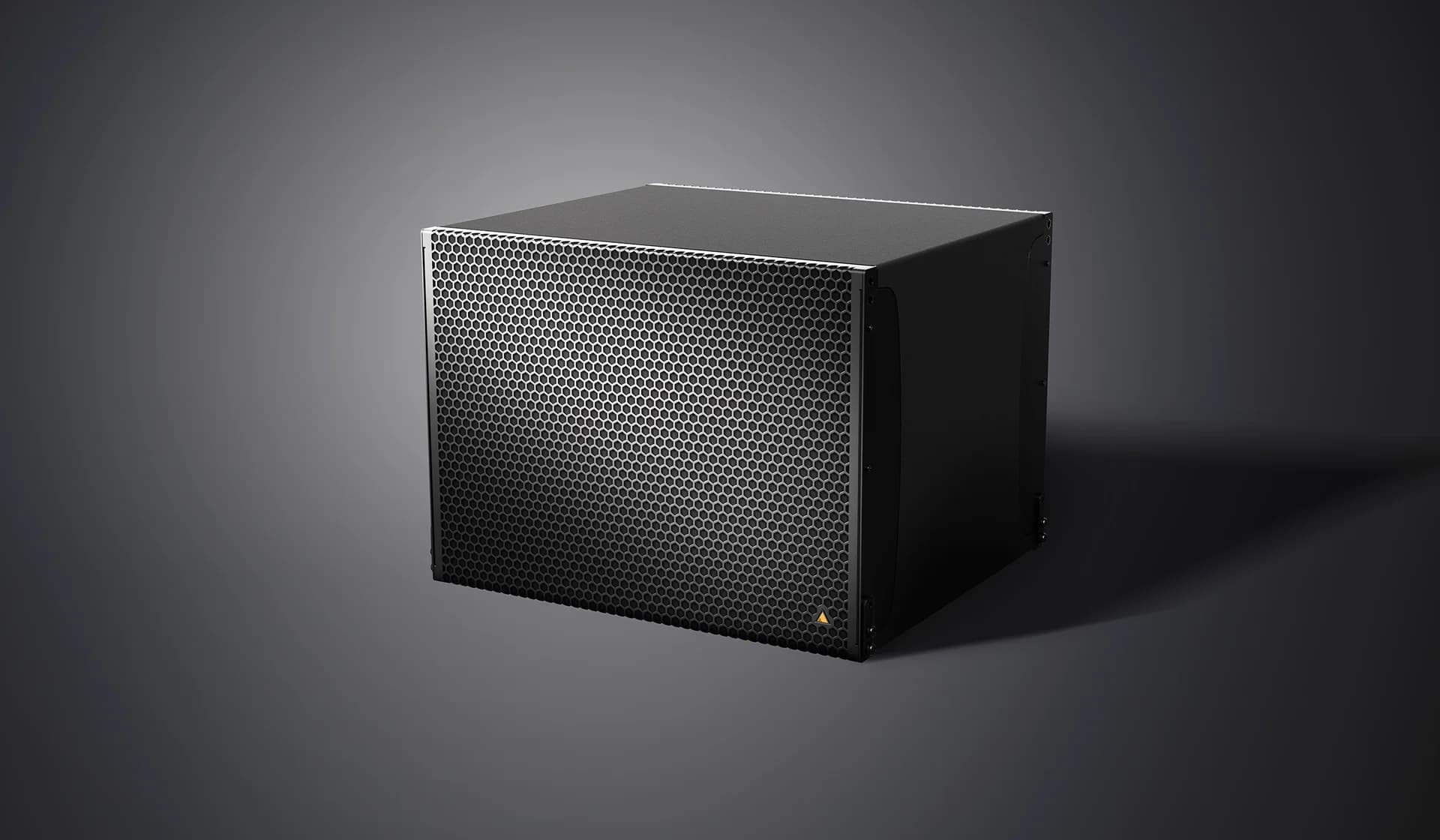

The IS119 is the larger subwoofer in the IS-Series. The enclosure is loaded with a light weight, long excursion, 19” ND19-S Neodymium driver made with Kevlar® utilizing Adamson’s Advanced Cone Architecture. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two front and back Speakon™ NL4 connectors (IS119), or barrier strips (IS119b). A dual grill solution is used so that when arranged in cardioid mode, the appearance does not change. The integrated rigging system matches the rigging for the IS10 and can be flown in the same array using the IS10 & IS119 Support Frame. (930-0028)
Subwoofer
Subwoofer

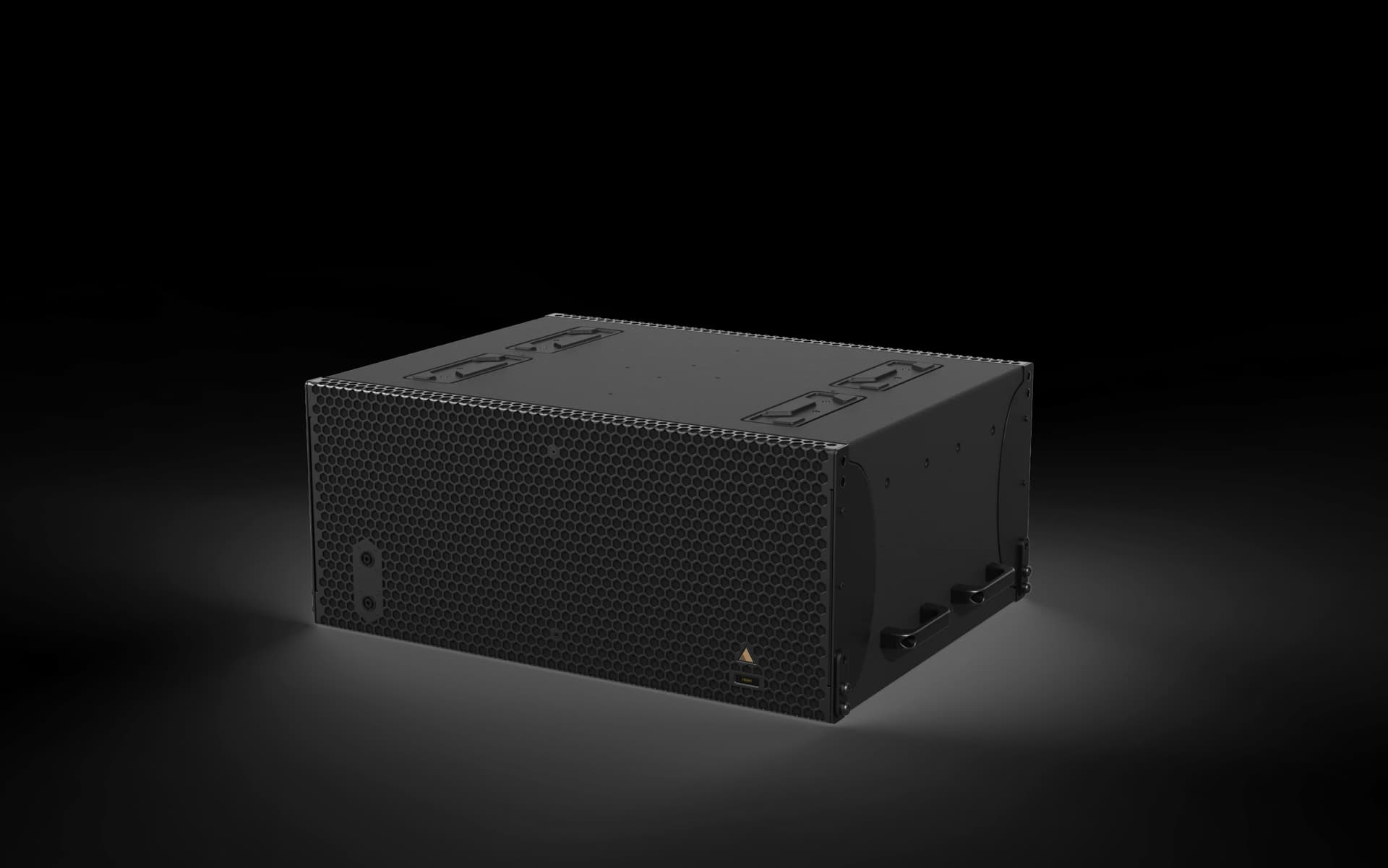

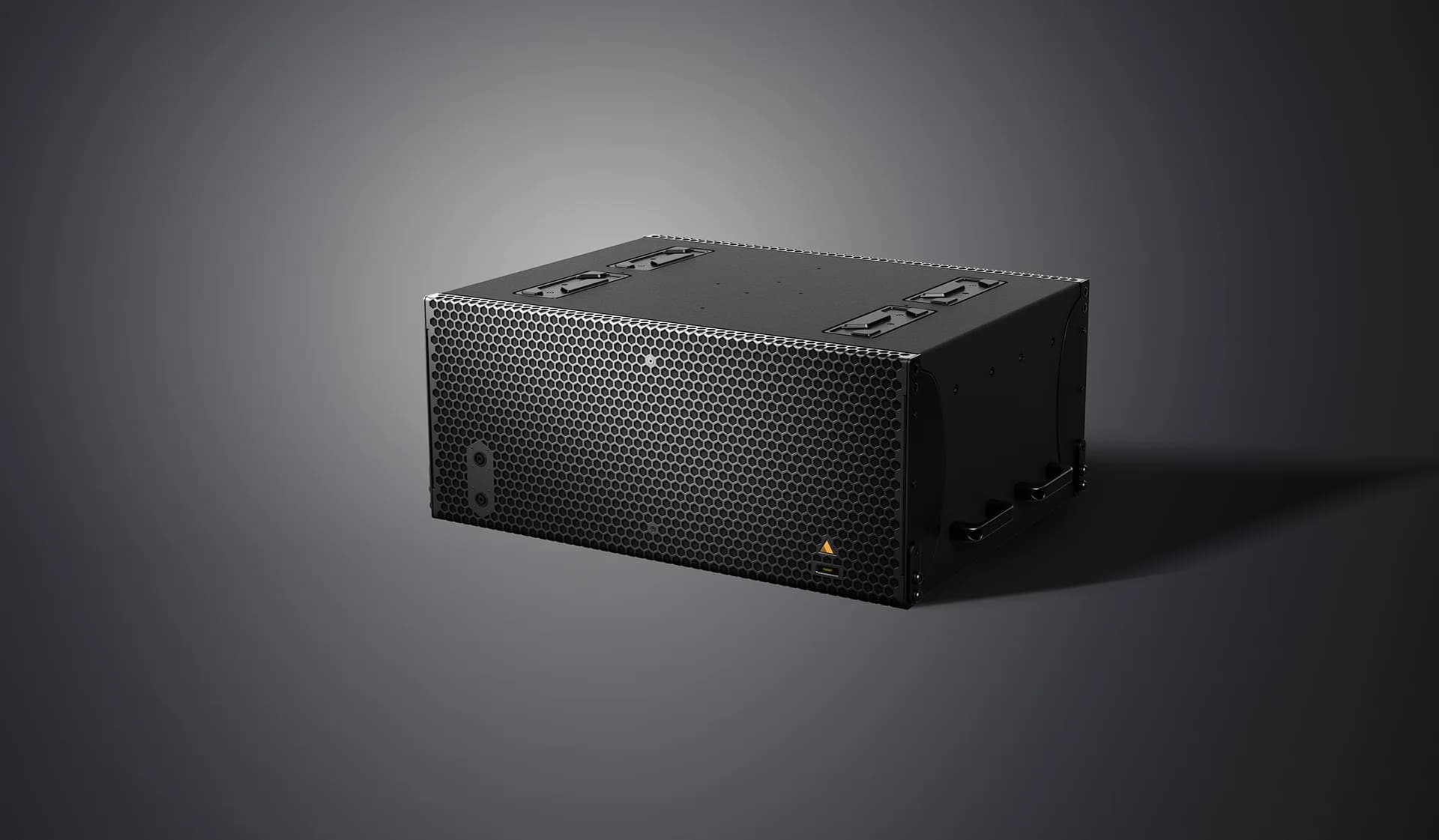

The IS213 subwoofer is an ultra-compact, high-powered subwoofer intended to be used in ground stack configurations and to fit in compact spaces. The enclosure is loaded with two light-weight, 13” ND13-S Kevlar® Neodymium drivers utilizing Adamson’s Advanced Cone Architecture. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two front and back Speakon™ NL4 connectors, or barrier strips available upon request. The IS213 ships with removable handles for easy handling, while allowing it to fit in tight spaces when the handles are removed, as well as rubber scuff guards on top and bottom that mate with additional IS213s for vertical stacking.
Subwoofer
Subwoofer

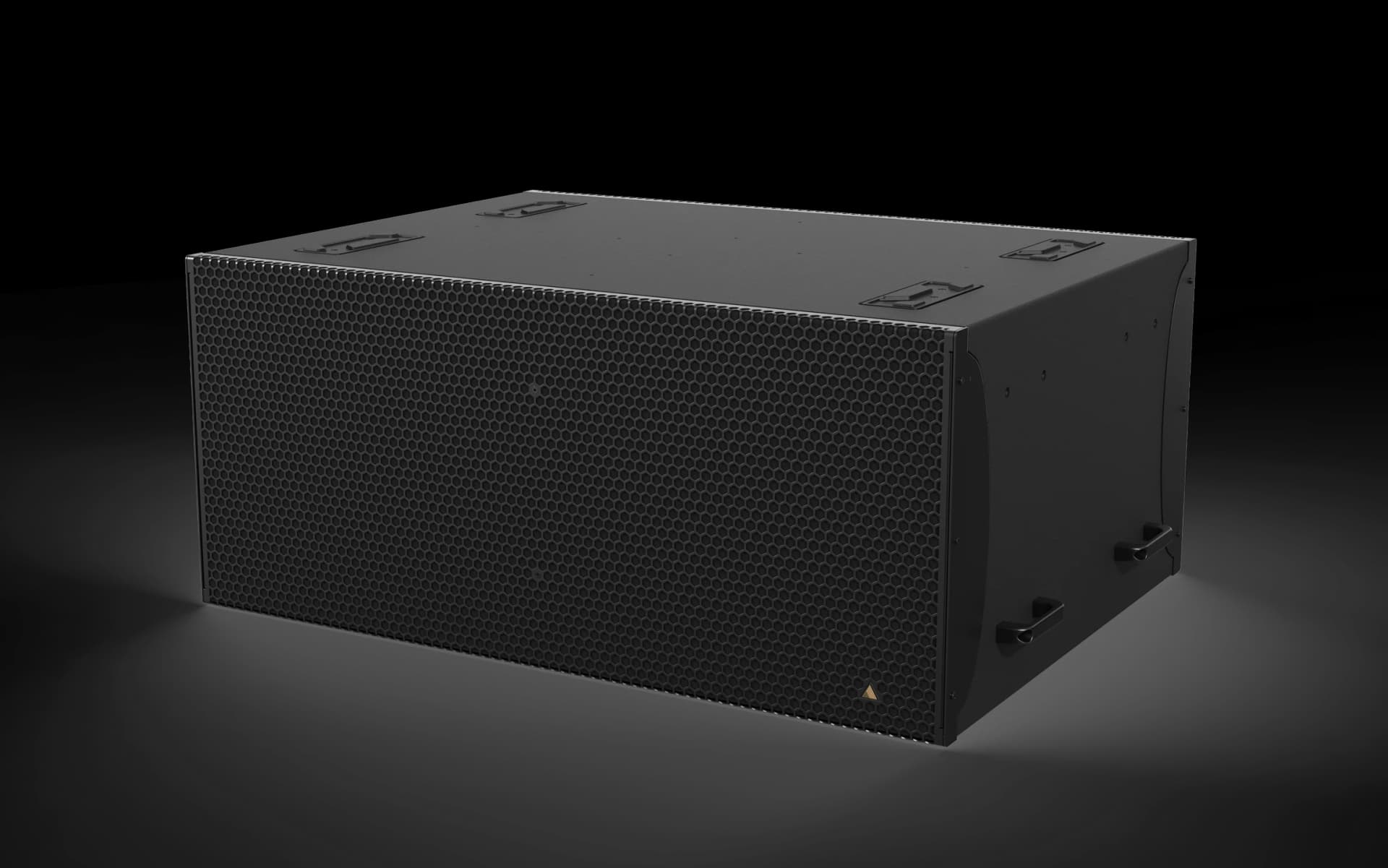

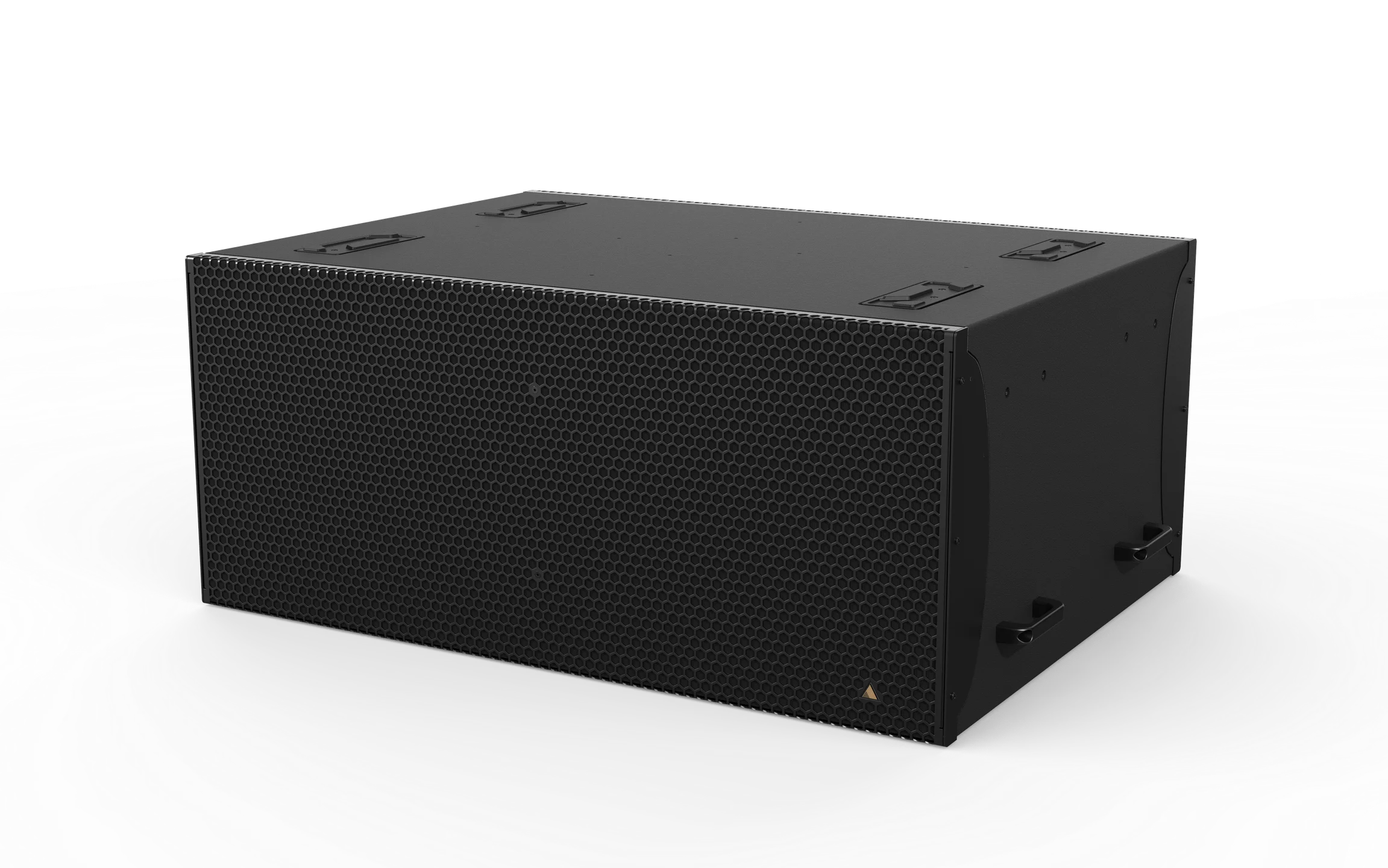

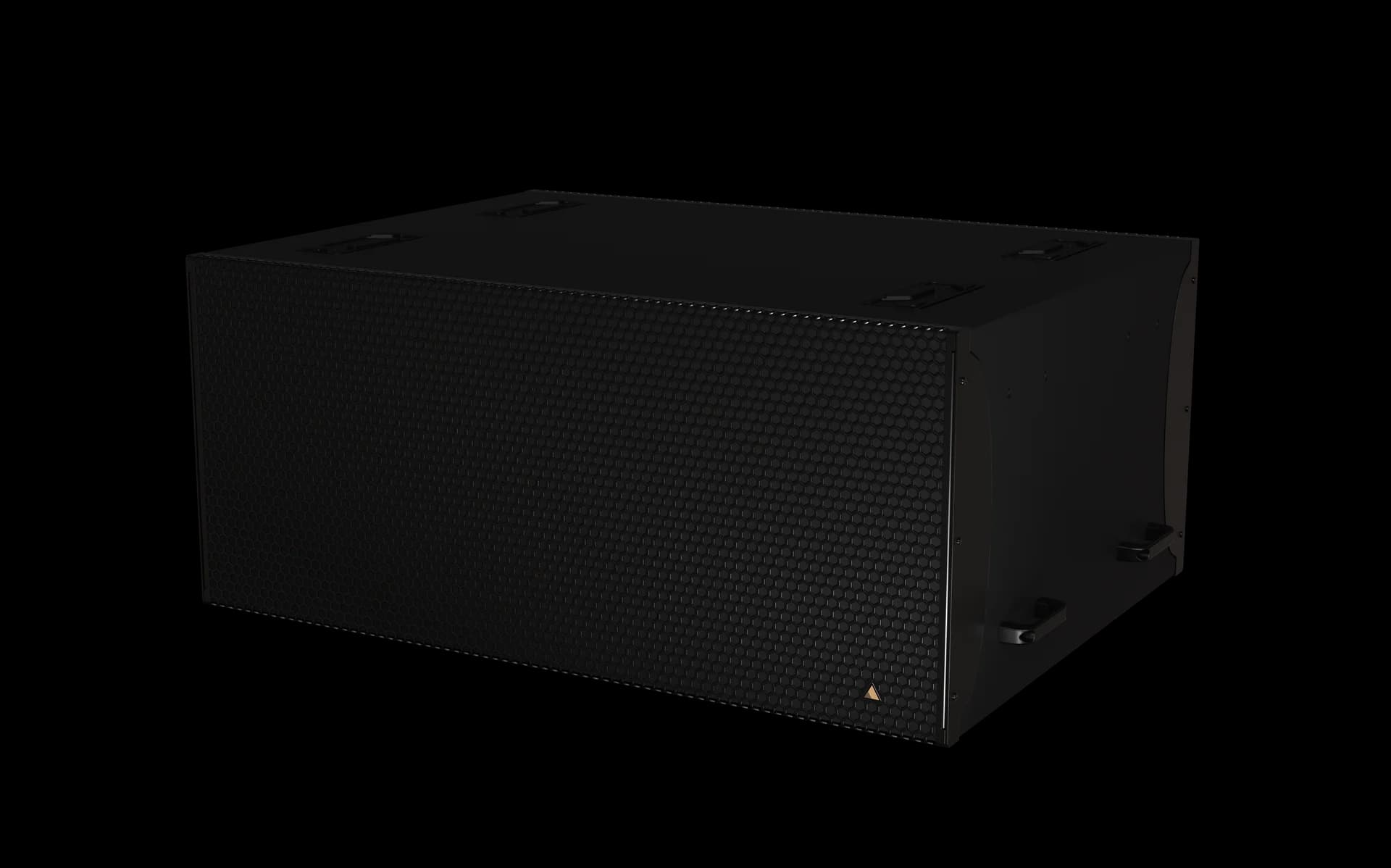

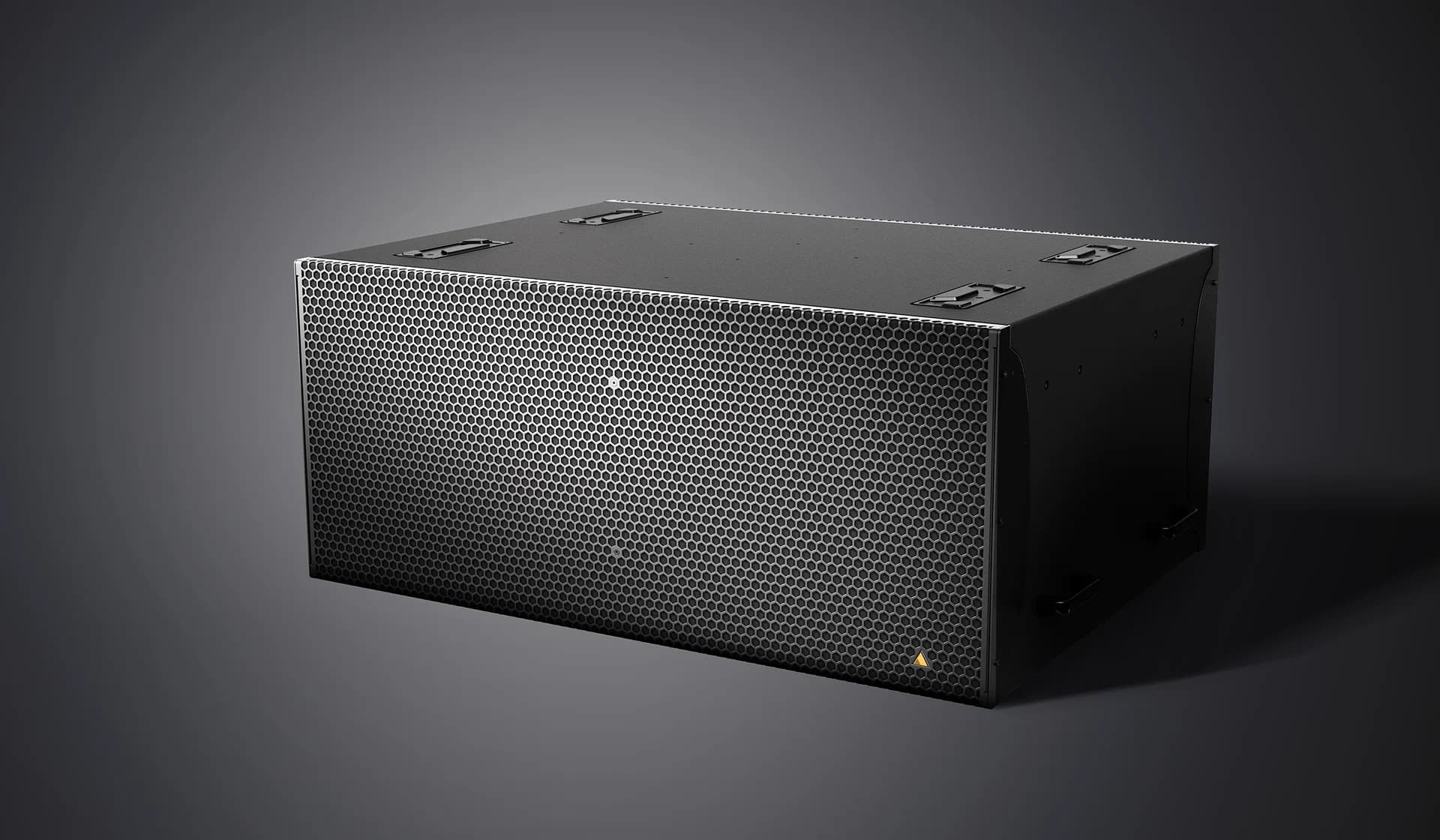

The IS219 subwoofer is a high-powered subwoofer intended to be used in ground stack configurations and to fit in compact spaces. The enclosure is loaded with two light weight, long excursion, 19” SD19 Neodymium drivers, made with Kevlar® utilizing Adamson’s Advanced Cone Architecture, and a dual 5” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two front and back Speakon™ NL4 connectors, or barrier strips available upon request. The IS219 ships with removable handles for easy handles, while allowing it to fit in tight spaces when the handles are removed.
Point Source
Point Source

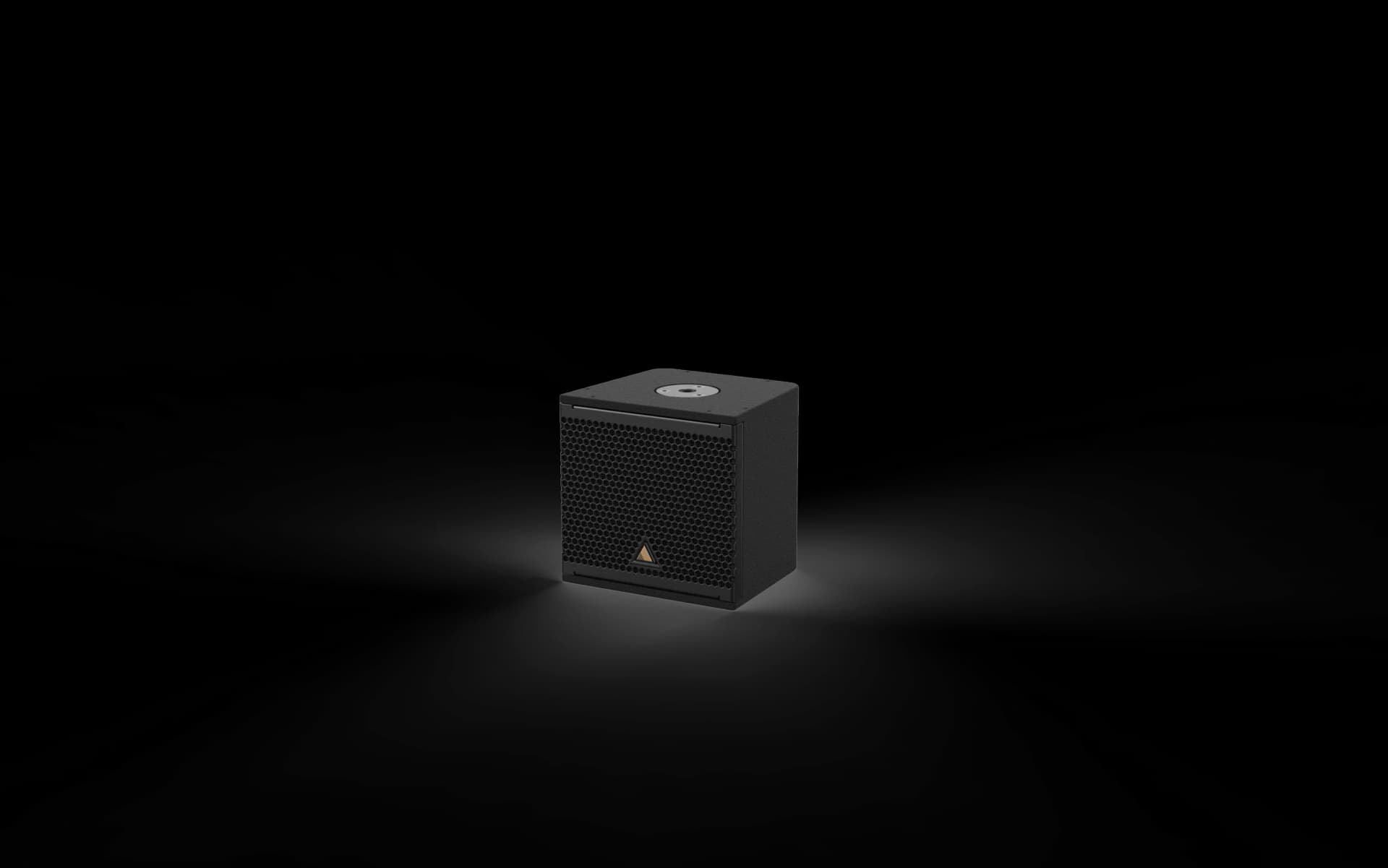

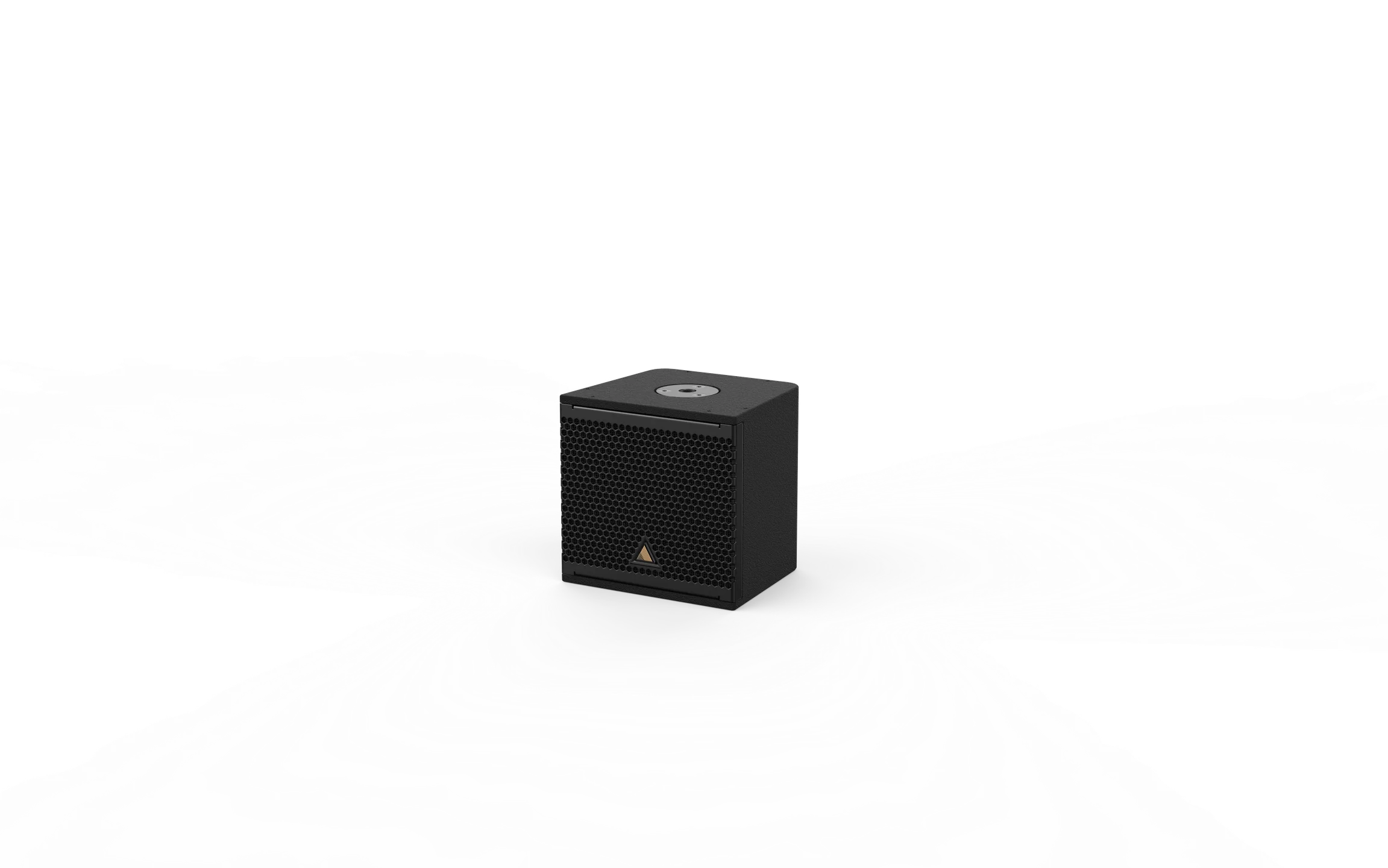

The IS5c is an ultra-compact, light-weight, passive 2-way coaxial loudspeaker, with a 100° conical dispersion pattern. Designed to produce linear, high-resolution audio throughout its intended bandwidth, the enclosure contains a 1.4” dome compression driver coaxially combined with a 5” low frequency transducer. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, as well as a 2-point barrier strip. A plate and screw rigging system is placed on top and bottom of the enclosure, with available accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The IS5c is suited to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Target applications include performing arts centers, conference rooms, night clubs, restaurants, and houses of worship.
Line Source
Line Source

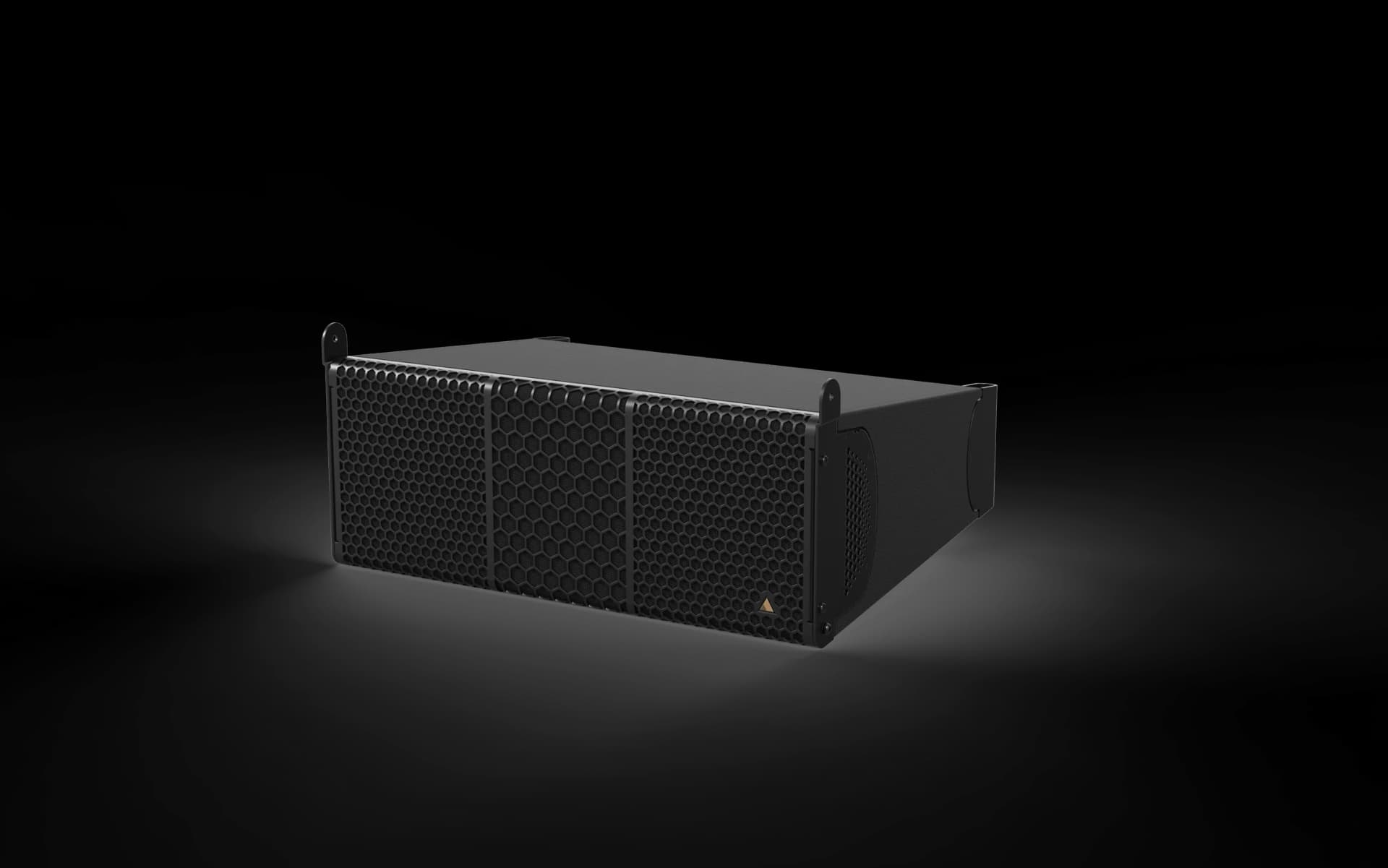

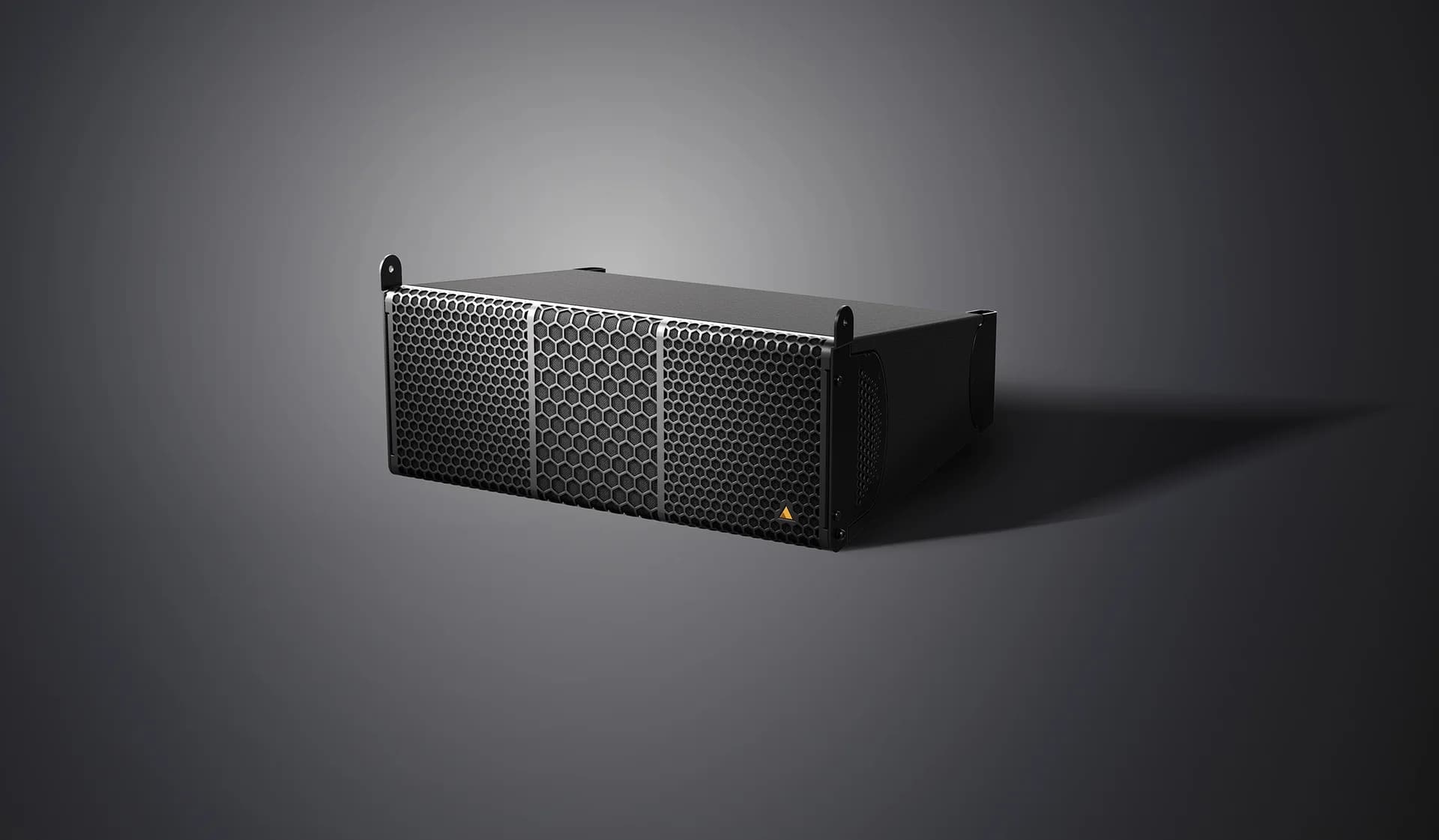

The IS7 is a 2-way, full range line array cabinet containing 2x ND7-LM8 Low-Mid drivers (2x 8 Ω) and an NH3-16 1.4” exit compression driver (16 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 100° x 12.5° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, or barrier strips available upon request. A plate and screw rigging system is recessed in the interior of the rear rigging fins for easy assembly. The IS7 is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where no extensive sub energy is required. Increased vertical coverage (12.5°) enables the IS7 to cover small to mid-size venues with reasonable speaker quantity. Target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.
Point Source
Point Source

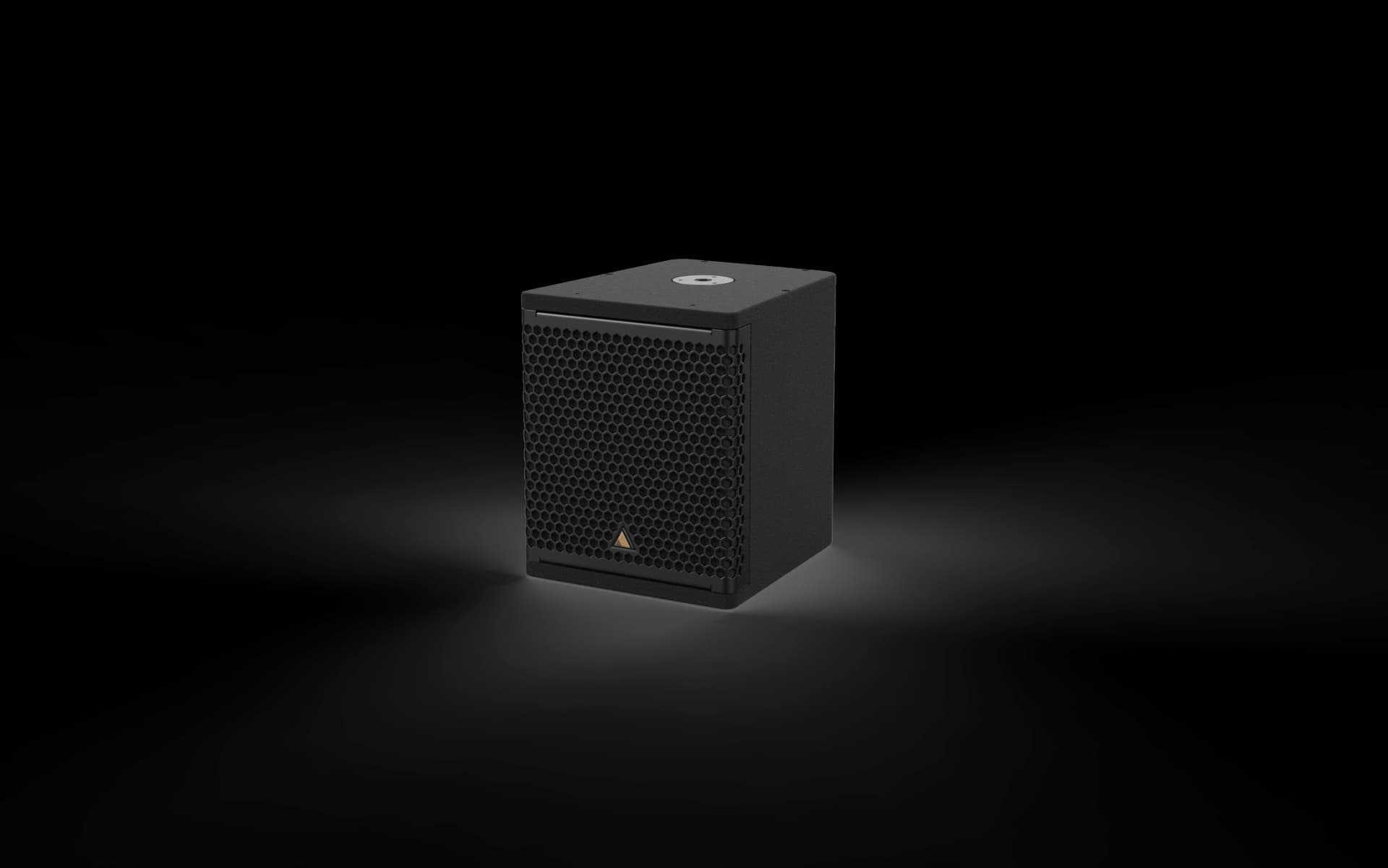

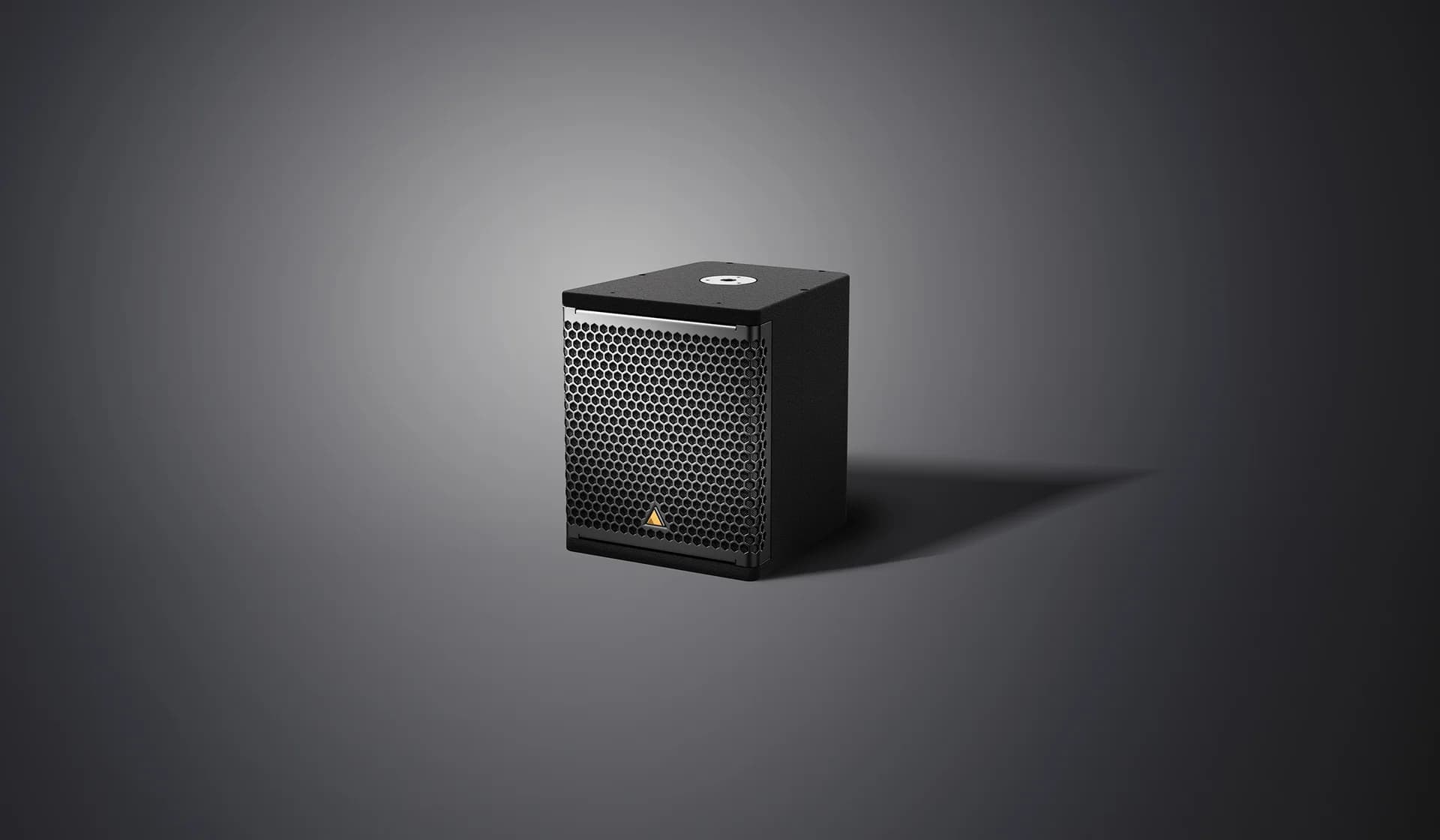

The IS7c is an ultra-compact, light-weight, passive 2-way coaxial loudspeaker, with a 90° conical dispersion pattern. Designed to produce linear, high-resolution audio throughout its intended bandwidth, the enclosure includes Adamson's ND7-C, a coaxial transducer which contains both a 7" low frequency section and a dome compression driver. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, as well as a 2-point barrier strip. A plate and screw rigging system is placed on top and bottom of the enclosure, with available accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The IS7c is suited to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Target applications include performing arts centers, conference rooms, night clubs, restaurants, and houses of worship.
Point Source
Point Source

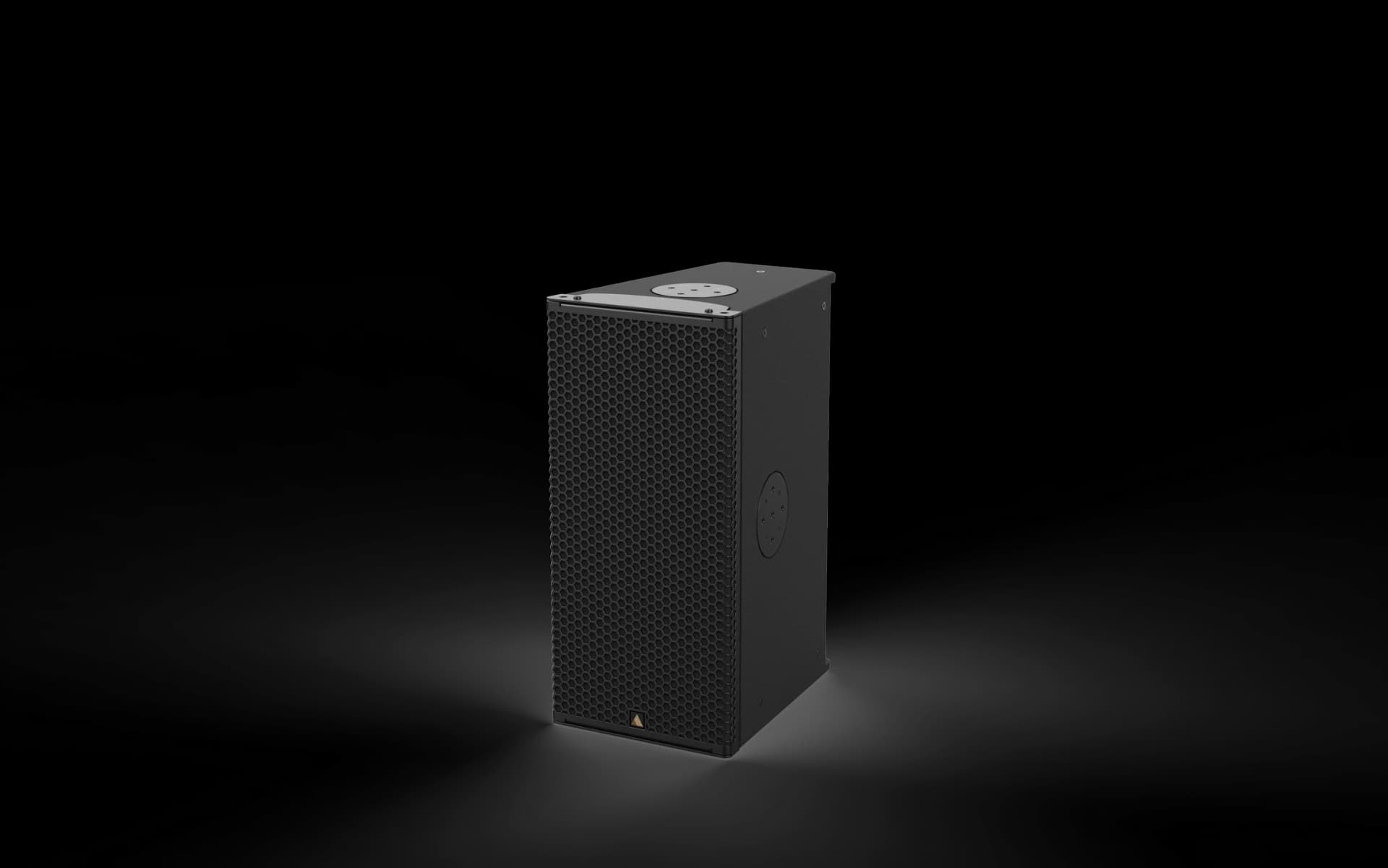

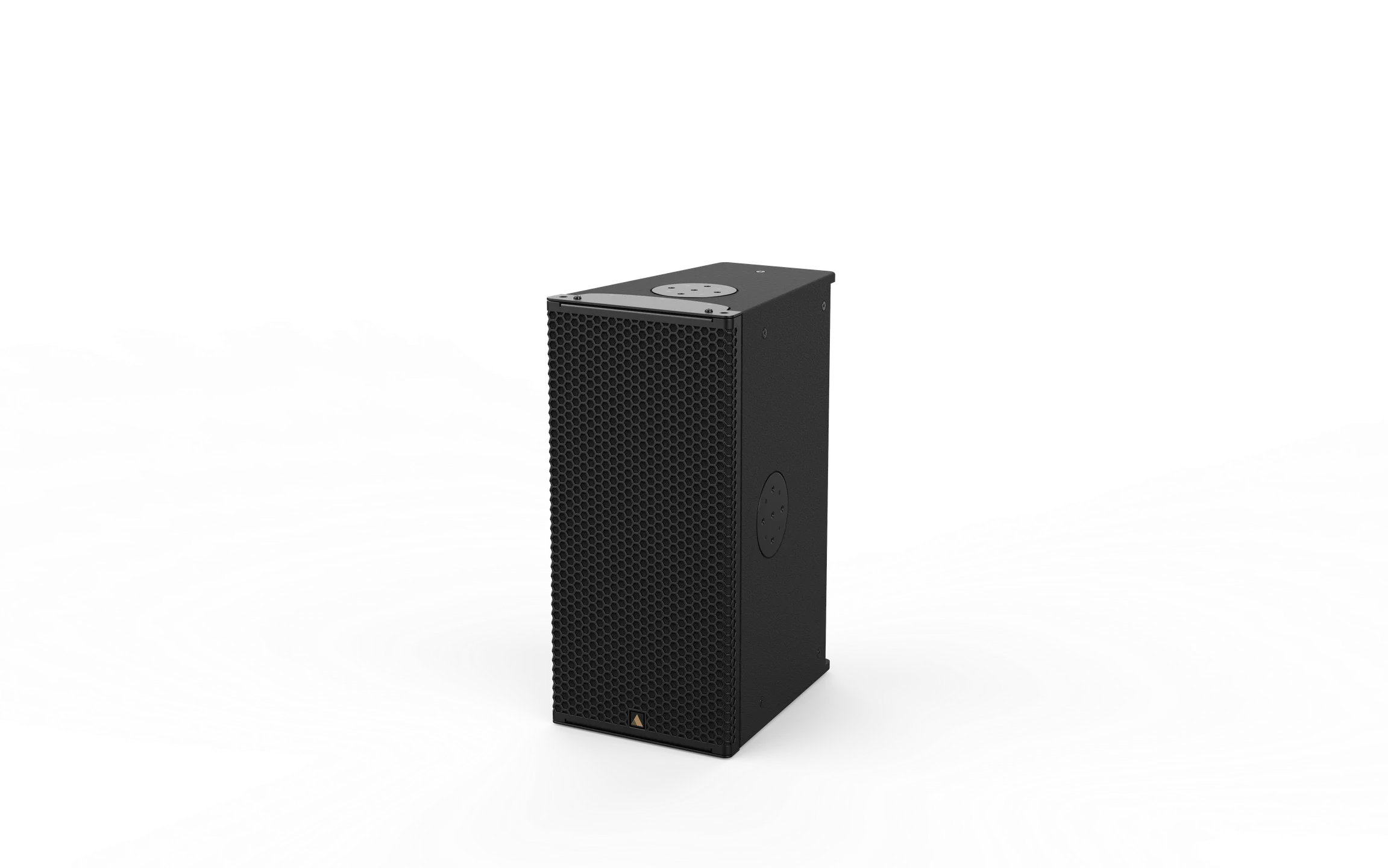

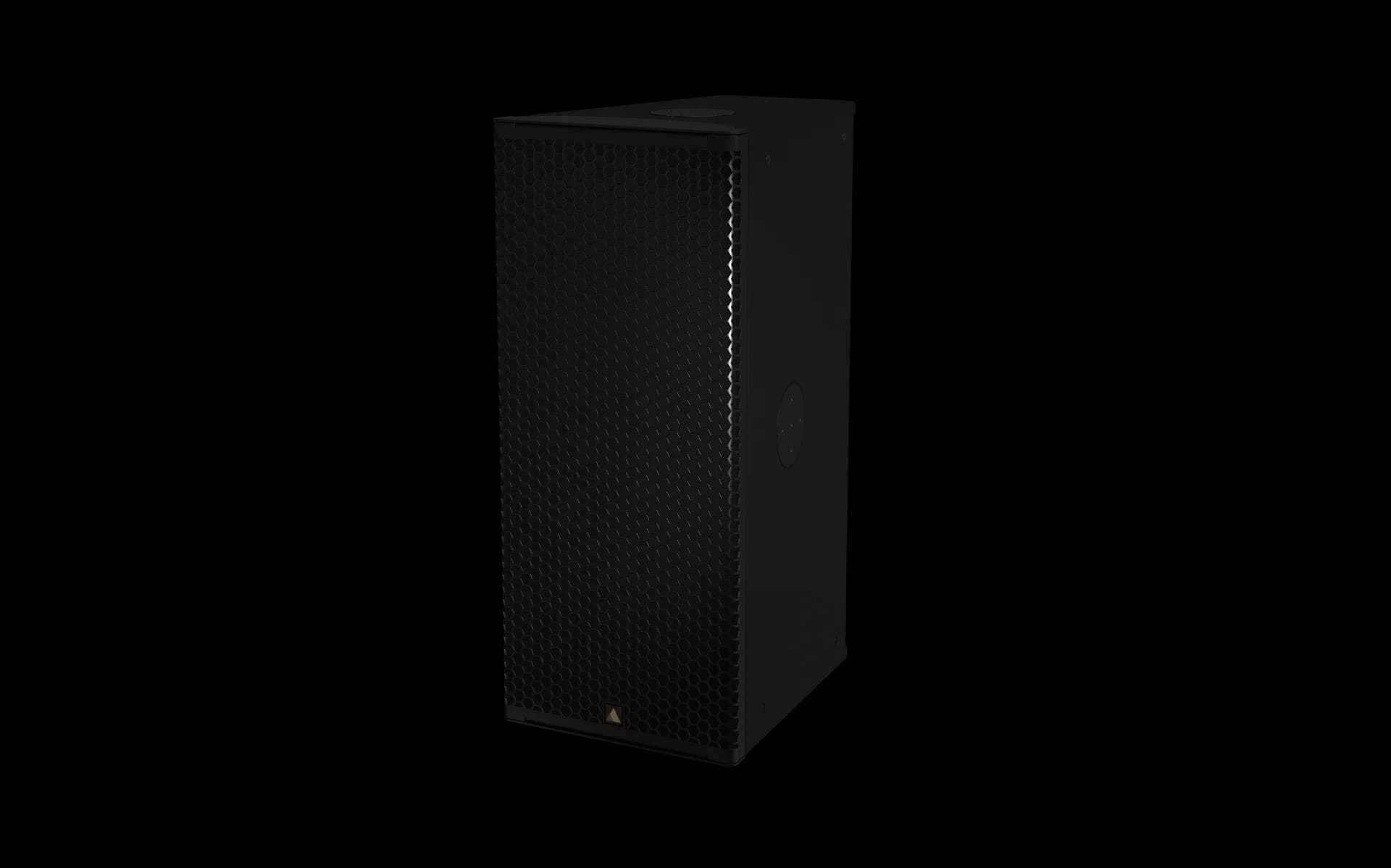

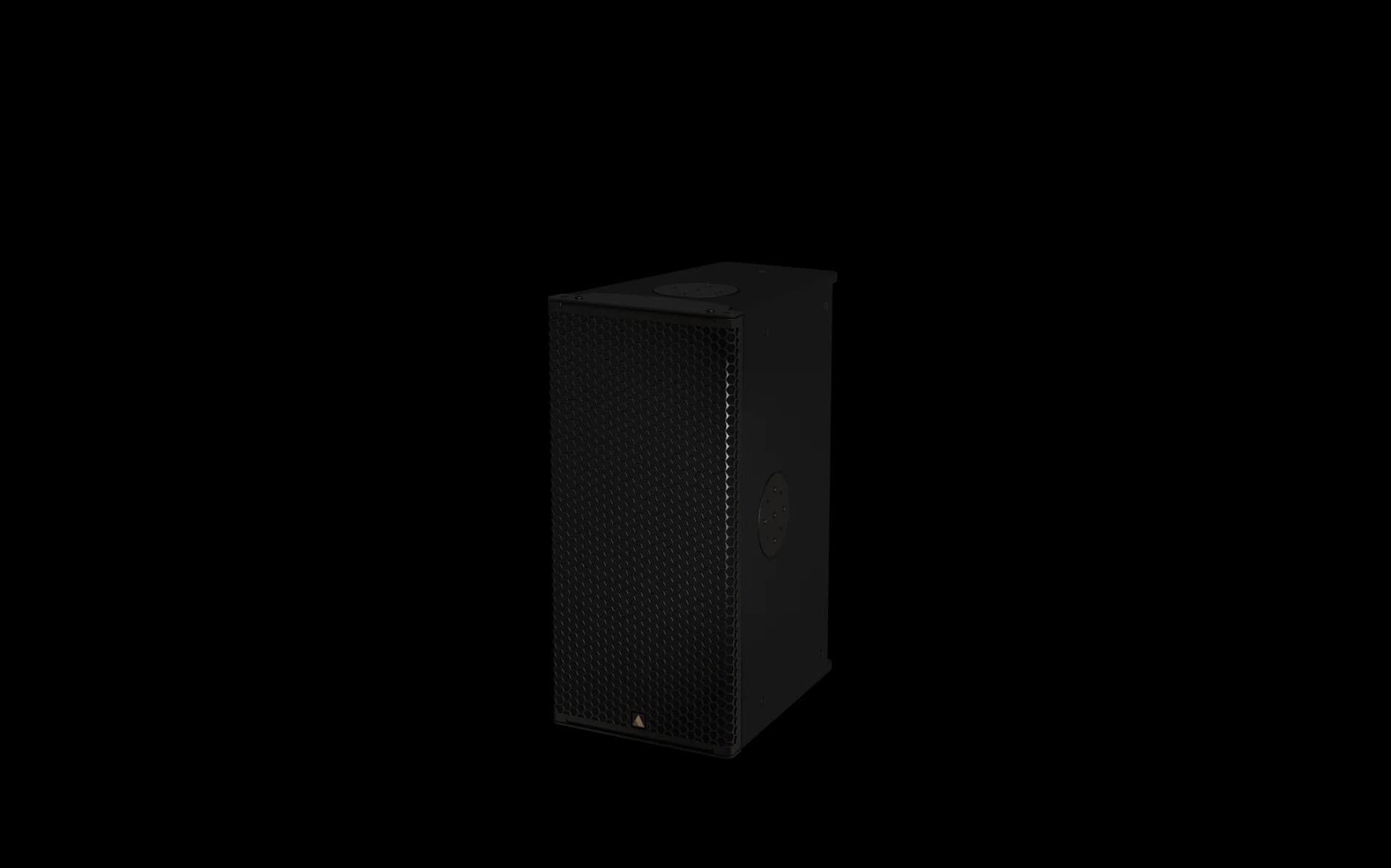

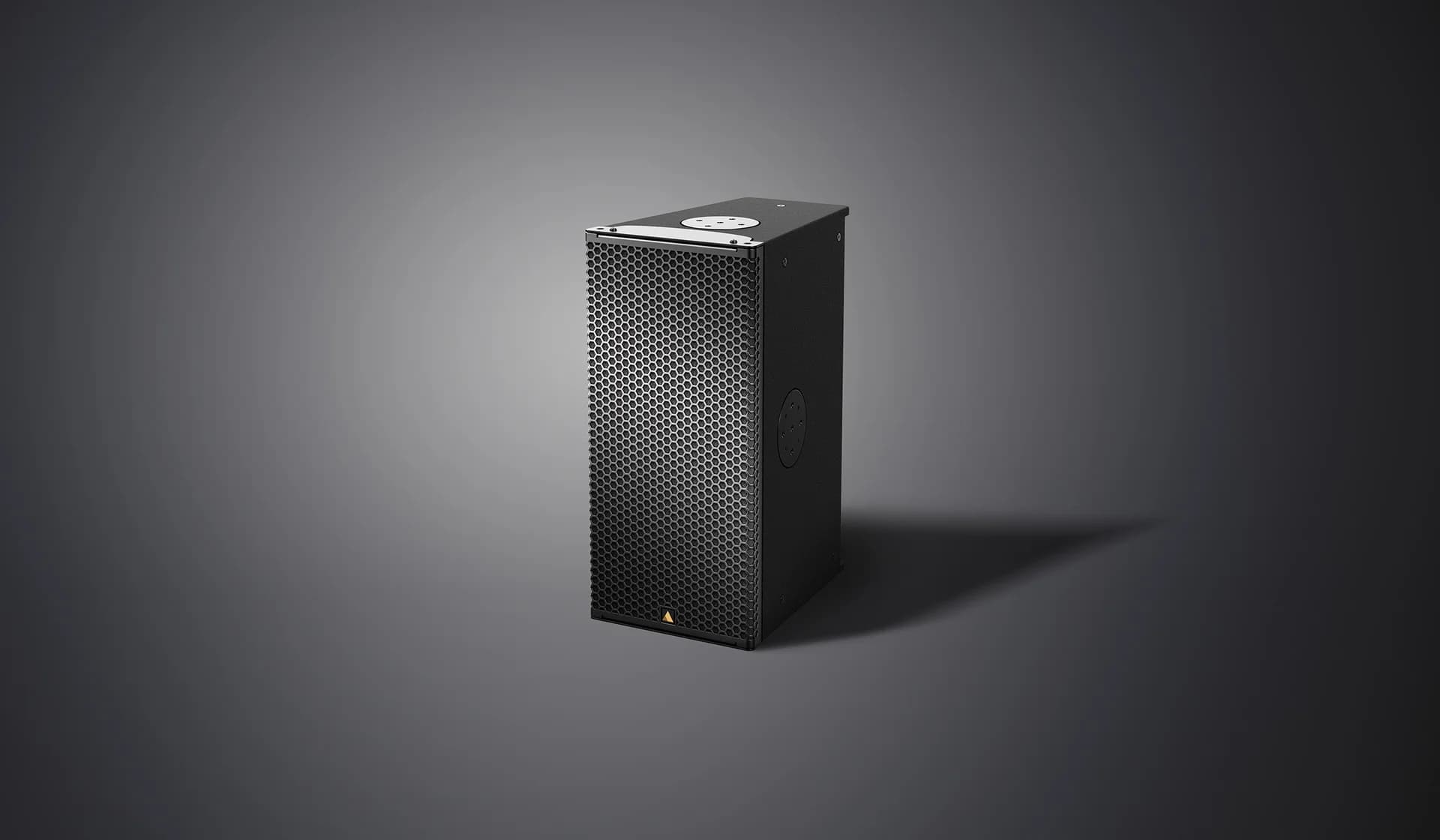

The IS7p is a 2-way, full range point source cabinet containing 2x ND7-16 Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguide produces a nominal dispersion pattern of 70° x 40° or 100° x 50° (H x V), rotatable in 90° increments. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS7p), or barrier strips (IS7pb). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The IS7p is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS7p to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Other target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.
Point Source
Point Source
The IS7p is a 2-way, full range point source cabinet containing 2x ND7-16 Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguide produces a nominal dispersion pattern of 70° x 40° or 100° x 50° (H x V), rotatable in 90° increments. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS7p), or barrier strips (IS7pb). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The IS7p is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS7p to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Other target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.
