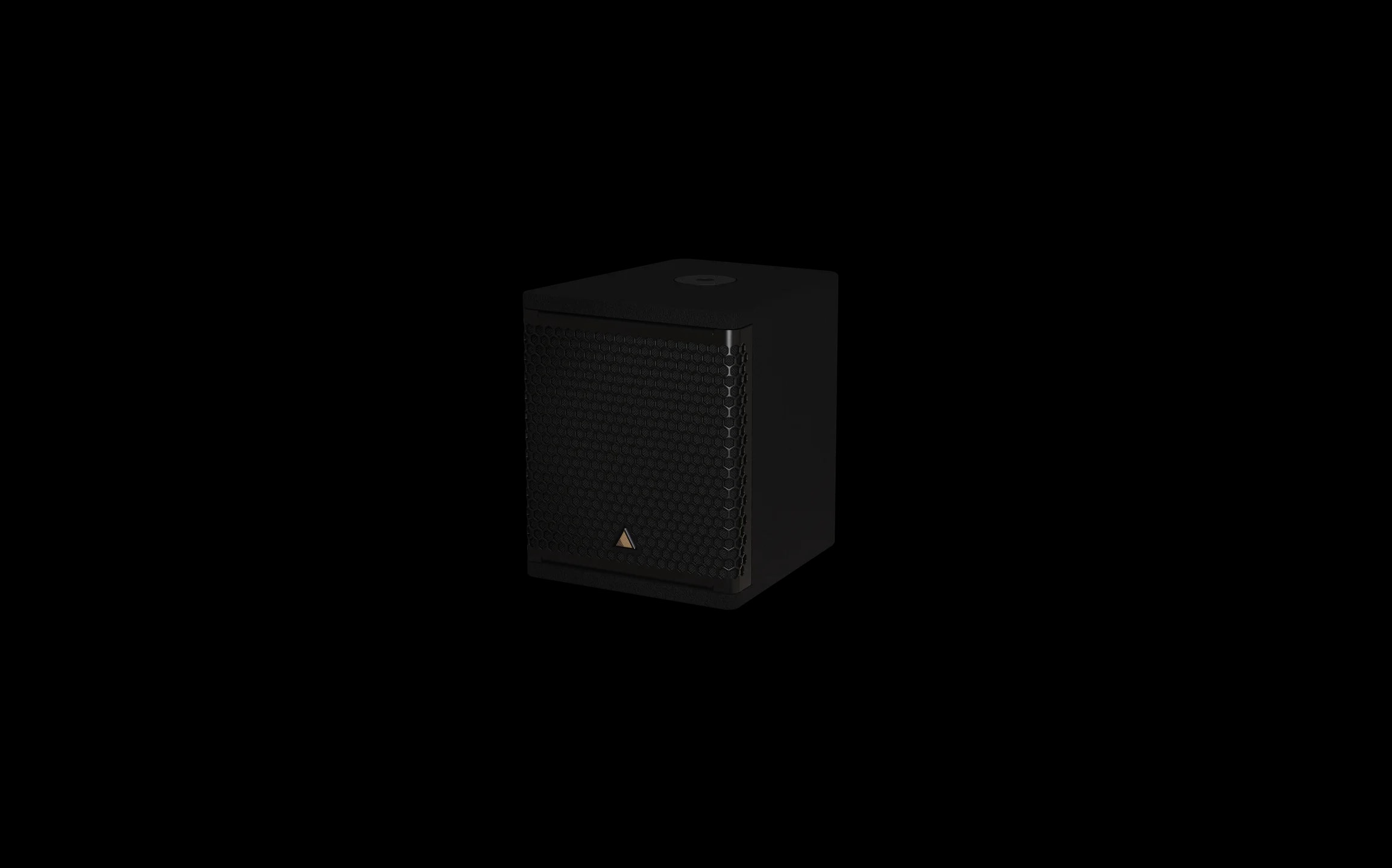

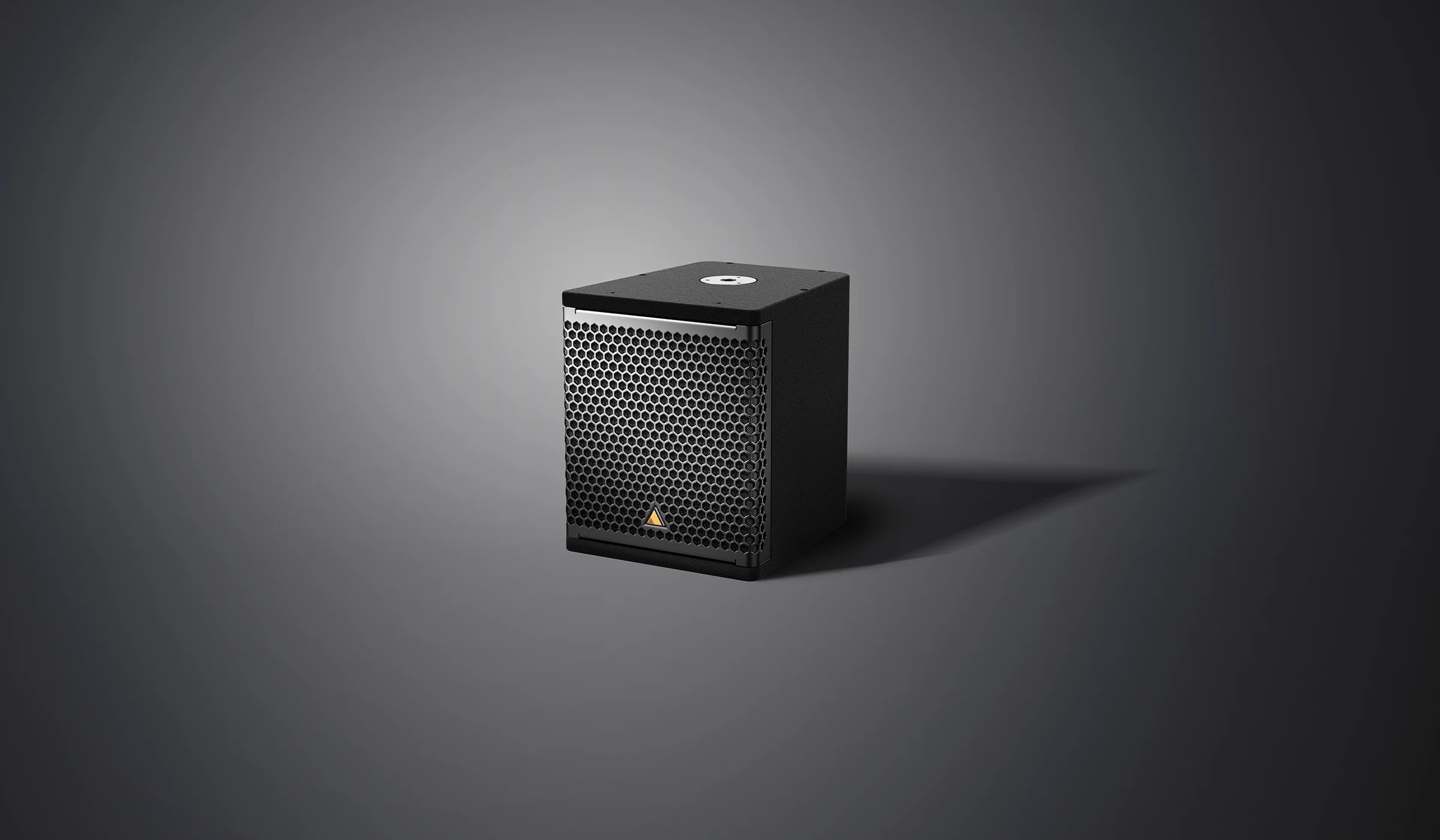

The IS7c is an ultra-compact, light-weight, passive 2-way coaxial loudspeaker, with a 90° conical dispersion pattern. Designed to produce linear, high-resolution audio throughout its intended bandwidth, the enclosure includes Adamson's ND7-C, a coaxial transducer which contains both a 7" low frequency section and a dome compression driver.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, as well as a 2-point barrier strip. A plate and screw rigging system is placed on top and bottom of the enclosure, with available accessories allowing the enclosure to be deployed seamlessly in a variety of applications.
The IS7c is suited to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Target applications include performing arts centers, conference rooms, night clubs, restaurants, and houses of worship.
| Frequency Range (+/-3 dB) | 80 Hz - 20 kHz |
| Nominal Directivity (-6 dB) H x V | 90° Conical |
| Maximum Peak SPL** | 130 dB |
| Components MF/HF | ND7-C 7” LF / 1.7” Dome Compression Driver |
| Nominal Impedance Passive | 16 Ω |
| Power Handling (AES / Peak) Passive | 300 / 1000 W |
| Rigging | Top and Bottom mini-SLR discs, each containing 3/8” threaded insert |
| Connection | 2x Speakon™ NL4 and 2-Point Barrier Strip |
| Height Front (mm / in) | 224.5 / 8.75 |
| Width (mm / in) | 188 / 7.5 |
| Depth (mm / in) | 228 / 9 |
| Weight (kg / lbs) | 5.44 / 12 |
| Supported Processing | Lake |
