Traditional rack-powered workhorses.
Line Source
Line Source

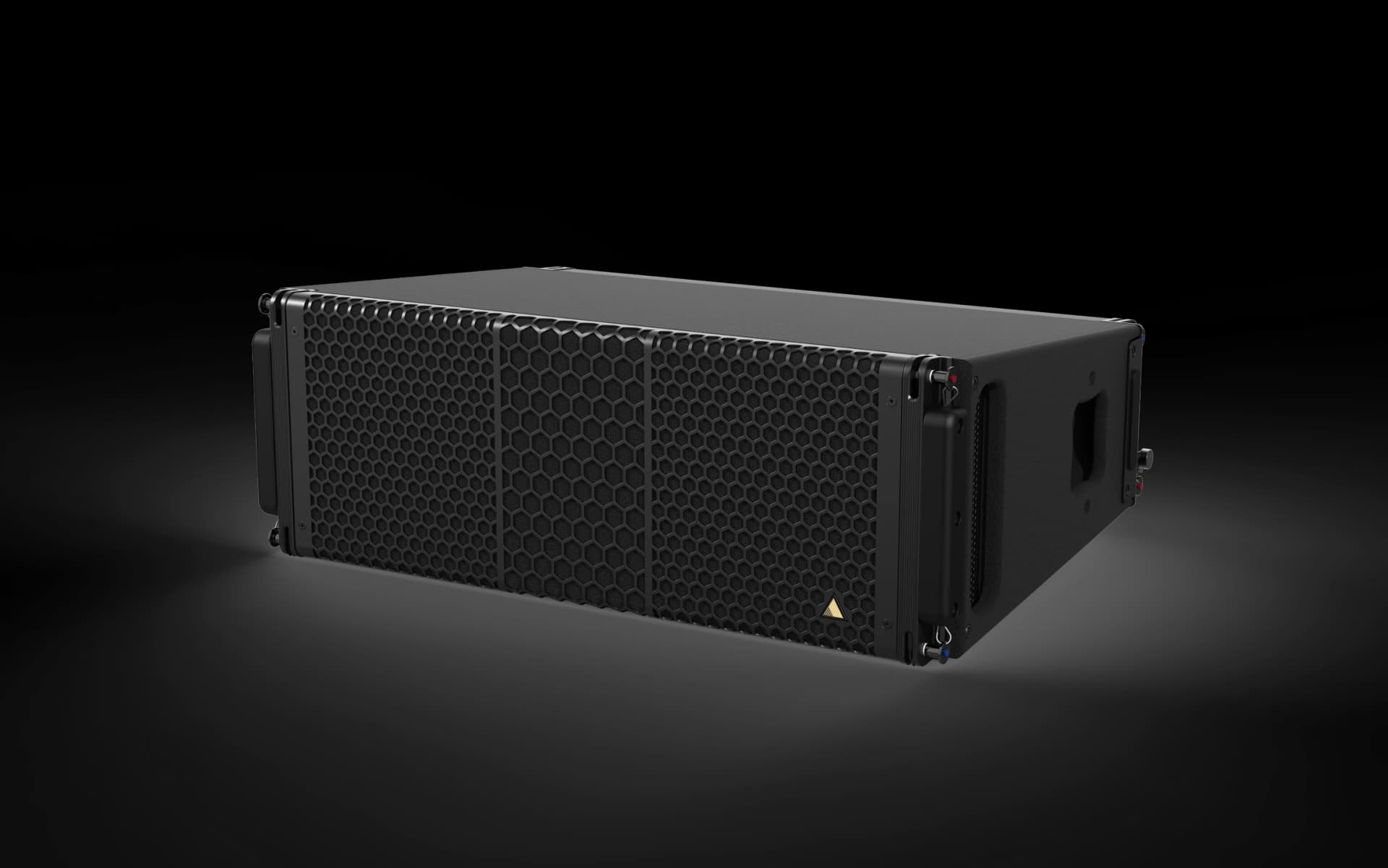

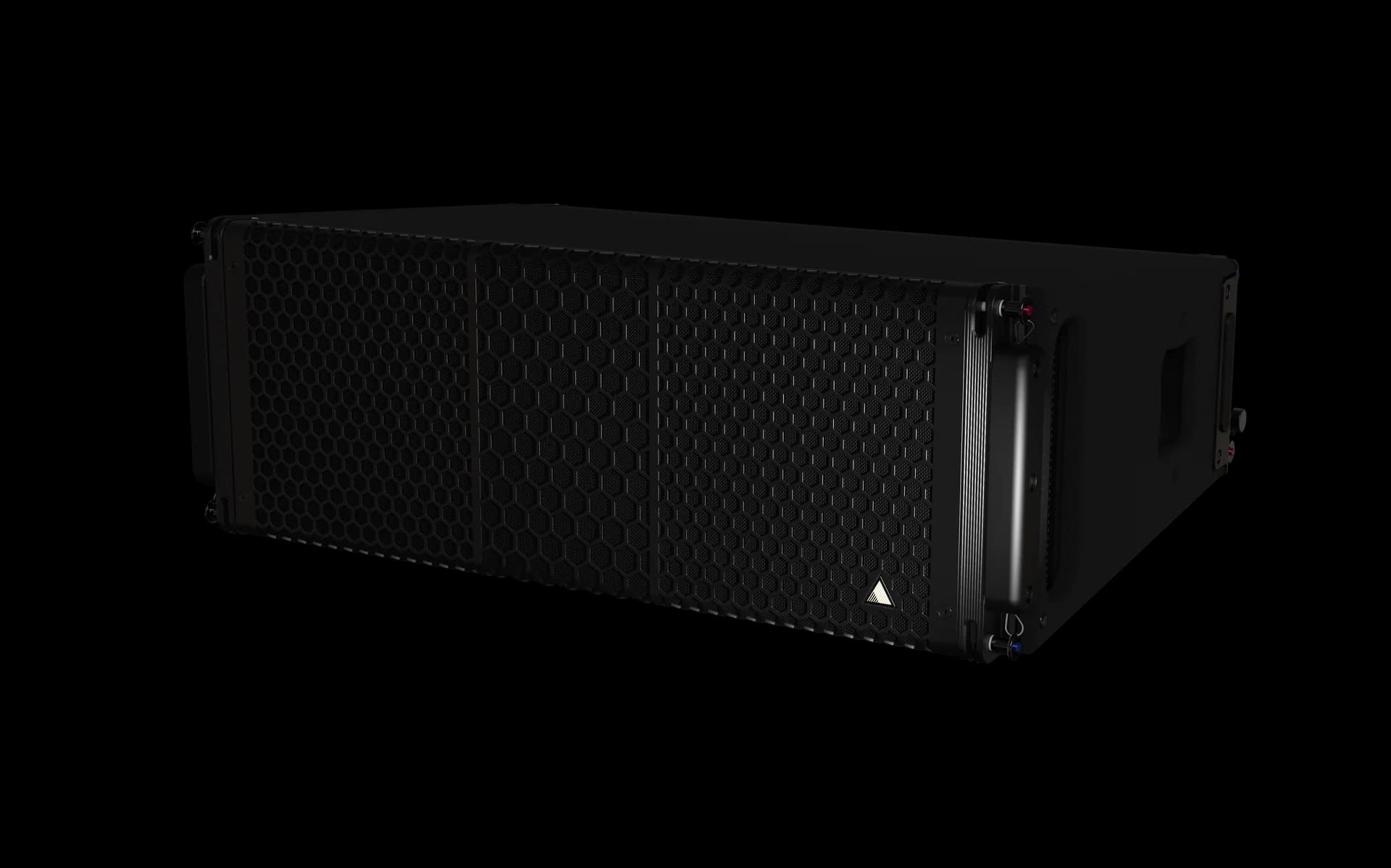

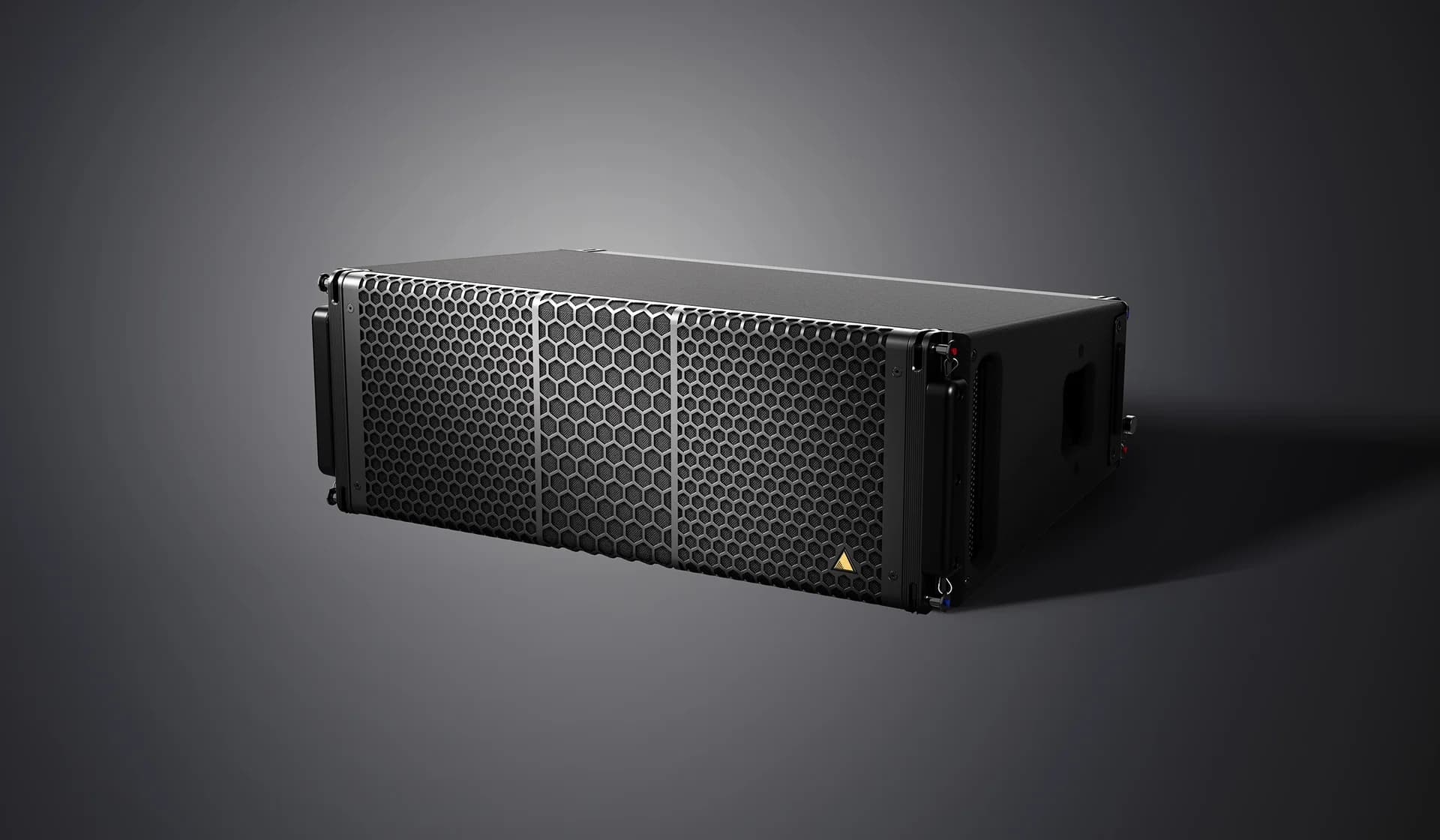

The S10 is a 2-way, full range line array cabinet containing 2x ND10-LM Kevlar® Neodymium drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL8 connectors. The rigging system incorporates the best aspects of previous advancements in our new SlideLock rigging technology. The S10 is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the S10 to cover theaters, arenas and stadiums with reasonable speaker quantity. Other target applications include dance clubs, medium size festivals, corporate events and contemporary churches.
Line Source
Line Source
The S10n is a 2-way, full range line array cabinet containing 2x ND10-LM Kevlar Neodymium drivers (2x 16 Ω) and an NH4TA2 1.5” exit compression driver (8 Ω). The critically optimized waveguide produces a slightly curved wavefront with a nominal dispersion pattern of 80° x 10° (H x V). The waveguide’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patent-pending Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL8 connectors. The rigging system incorporates the best aspects of previous advancements in our new SlideLock rigging technology. The S10n is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (10°) enables the S10 to cover theaters, arenas and stadiums with reasonable speaker quantity. The S10n's narrower horizontal pattern allows for not only increased usability in reflective spaces, but also increases the long-throw capability of an S-Series package. Other target applications include dance clubs, medium size festivals, corporate events and contemporary churches.
Point Source
Point Source

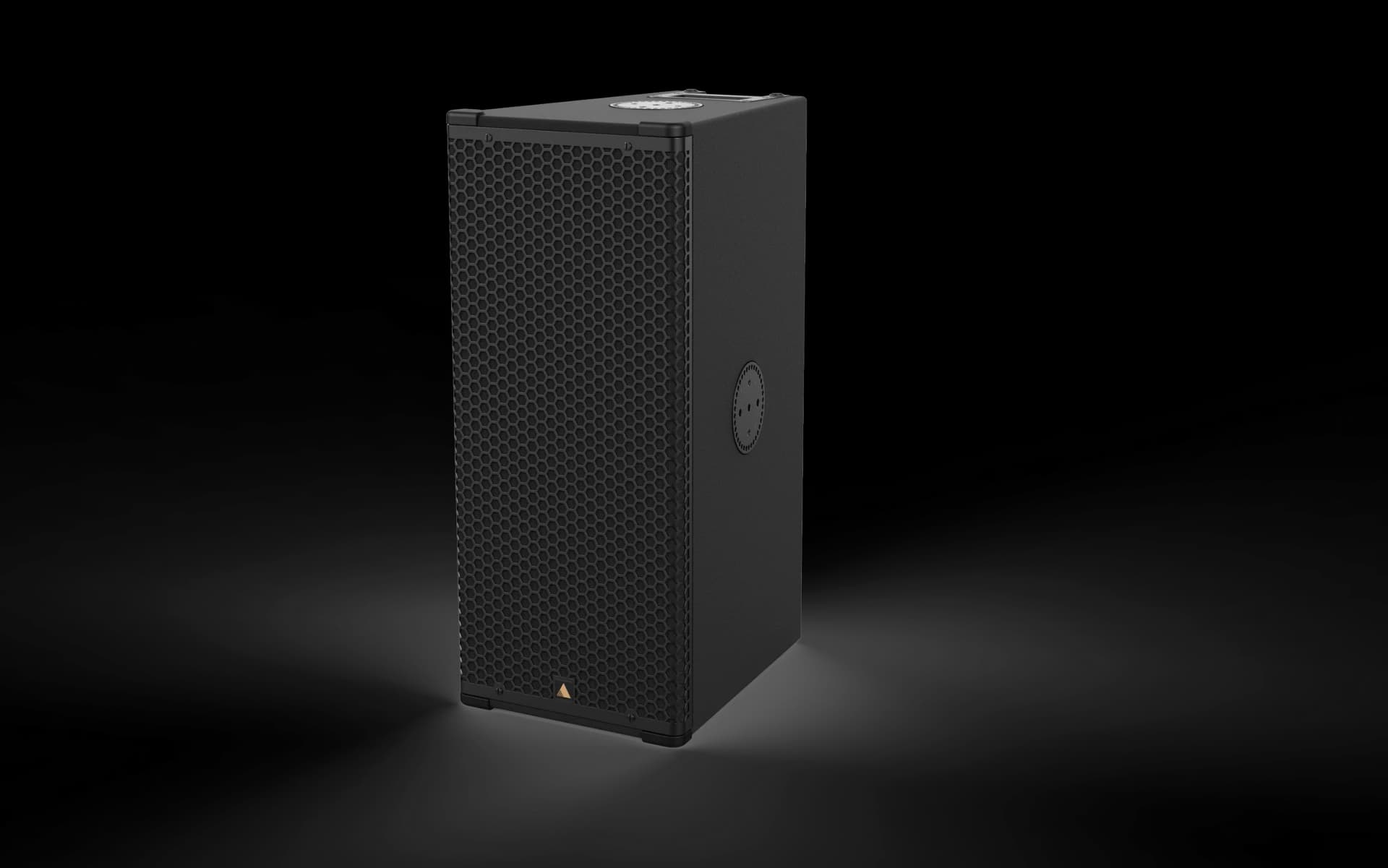

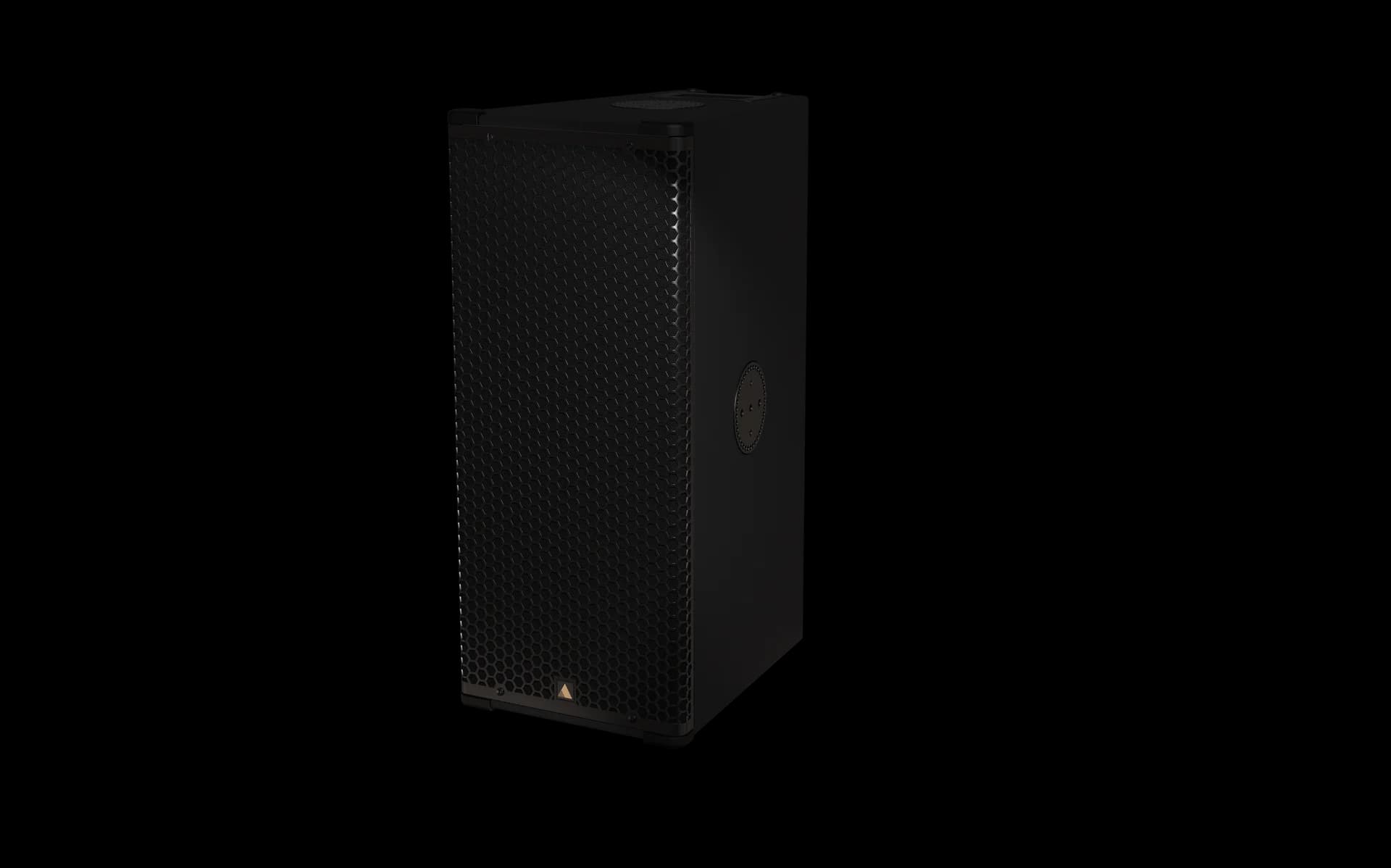

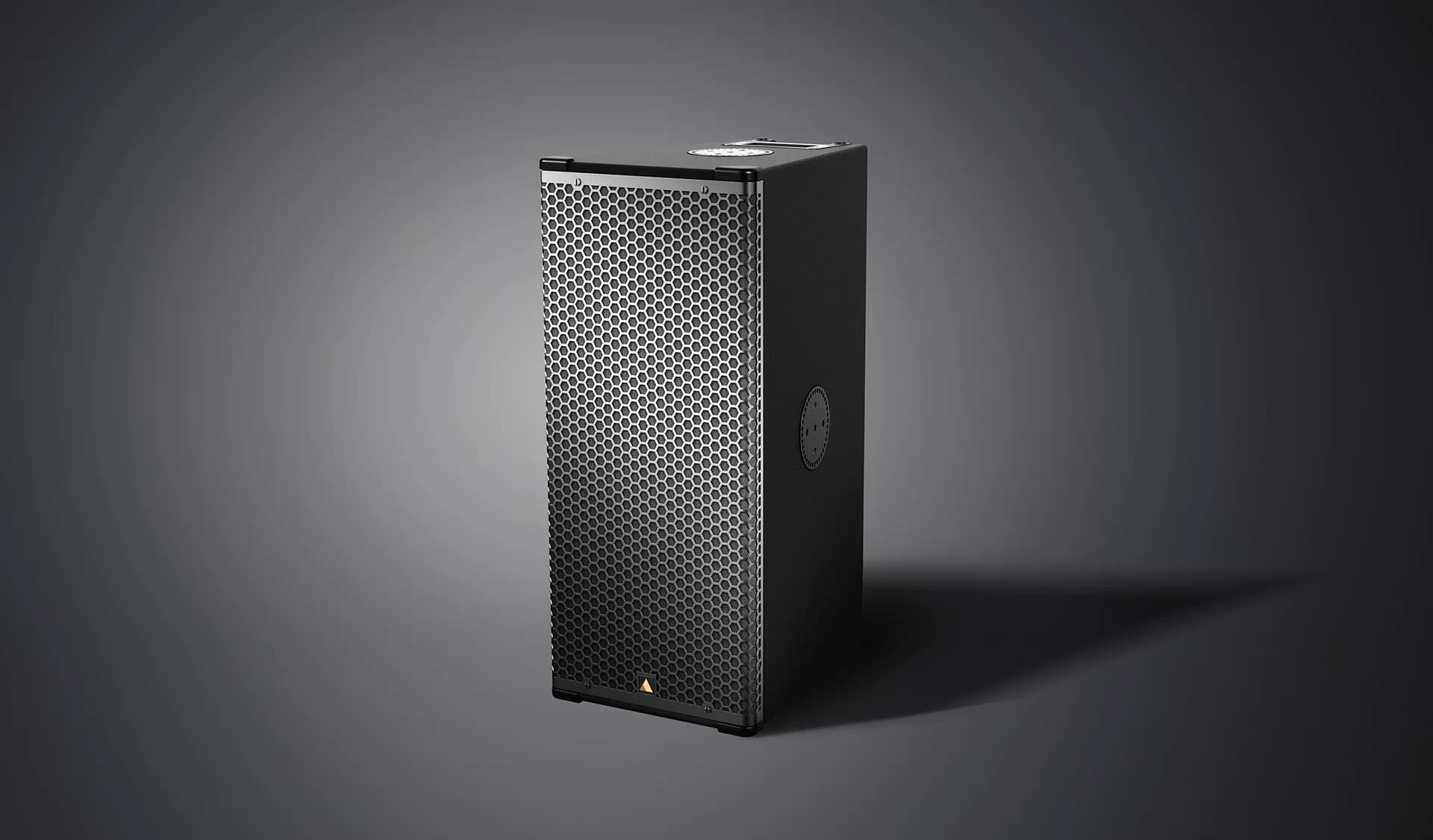

The S10p is a 2-way, full range point source cabinet containing 2x ND10-LM Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° (H x V), rotatable by 90° increments.. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors. A disc rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The S10p is suited to a wide variety of applications. Its full range capability (60 Hz) at reasonable levels qualifies for applications where sub is not required. Target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship. The large format of the S10p as well as the uniform voicing across the entire S-Series and E-Series makes the S10p suitable for both outfill and sidefill applications.
Subwoofer
Subwoofer

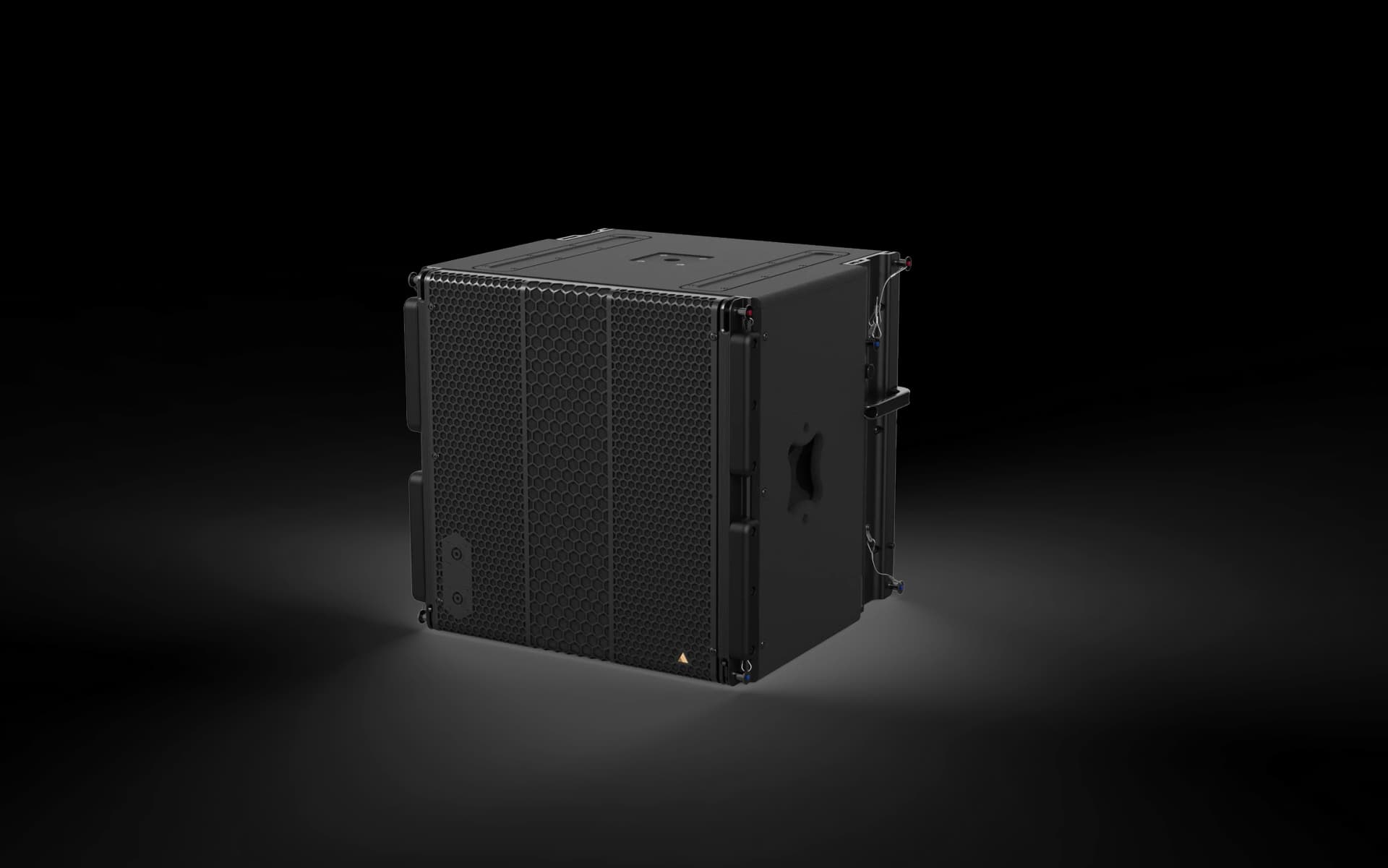

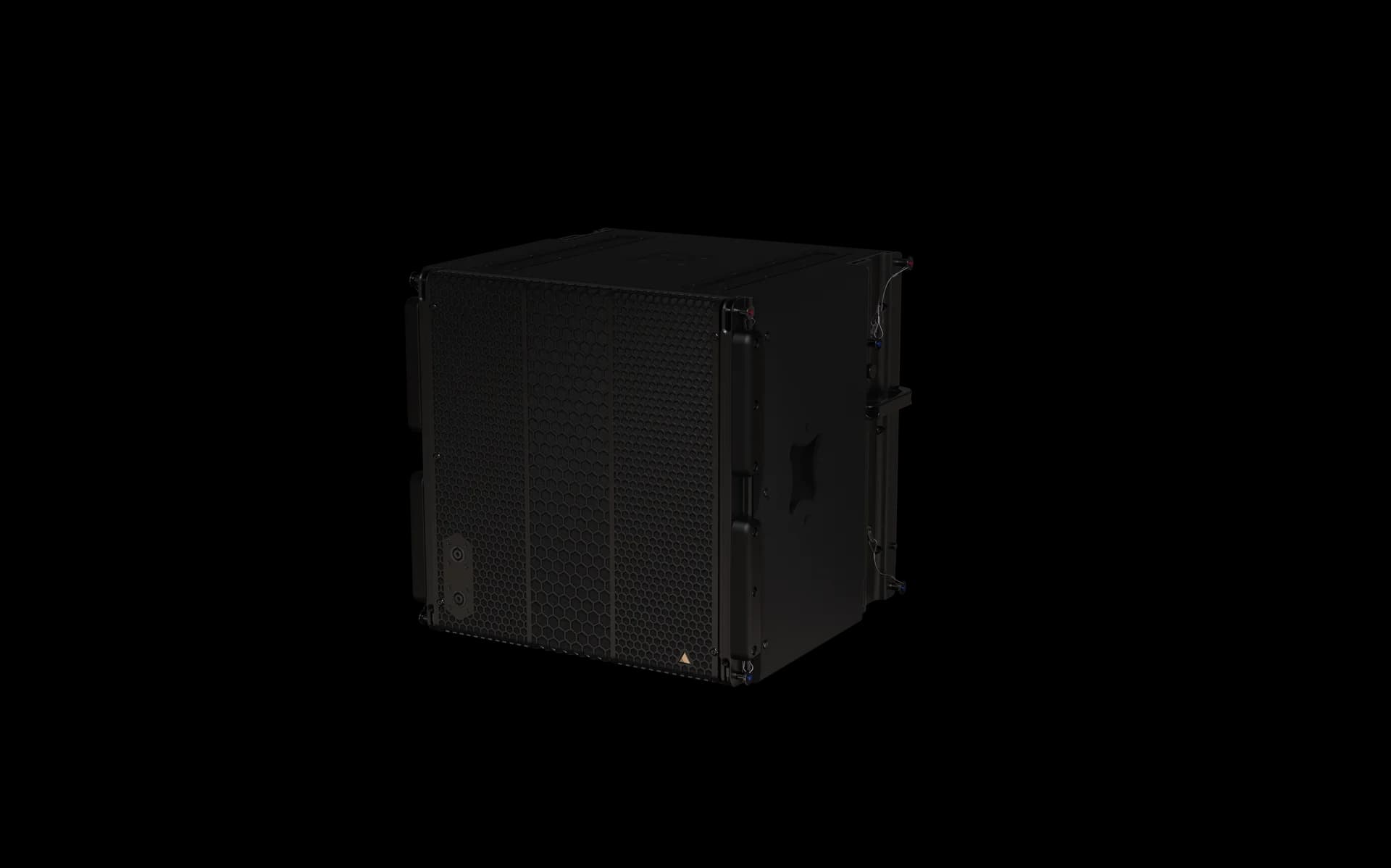

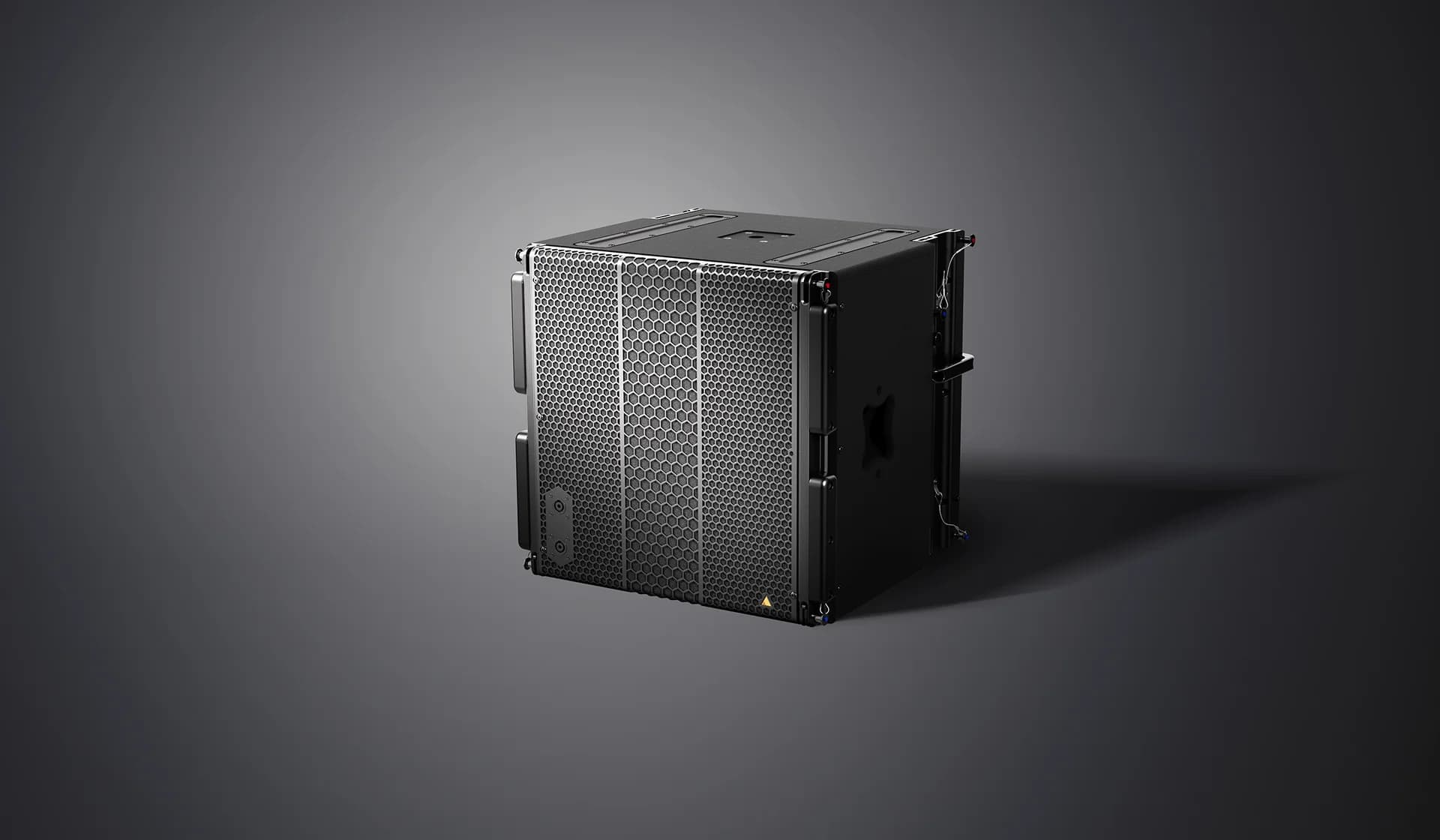

The S118 Subwoofer is the companion subwoofer to the S7. The enclosure is loaded with a light weight, long excursion, 18” ND18-S Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 4” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with Speakon™ NL4 connectors. The integrated rigging system matches the rigging for the S7 and can be flown or stacked in the same array without the need for an adapter frame.
Subwoofer
Subwoofer

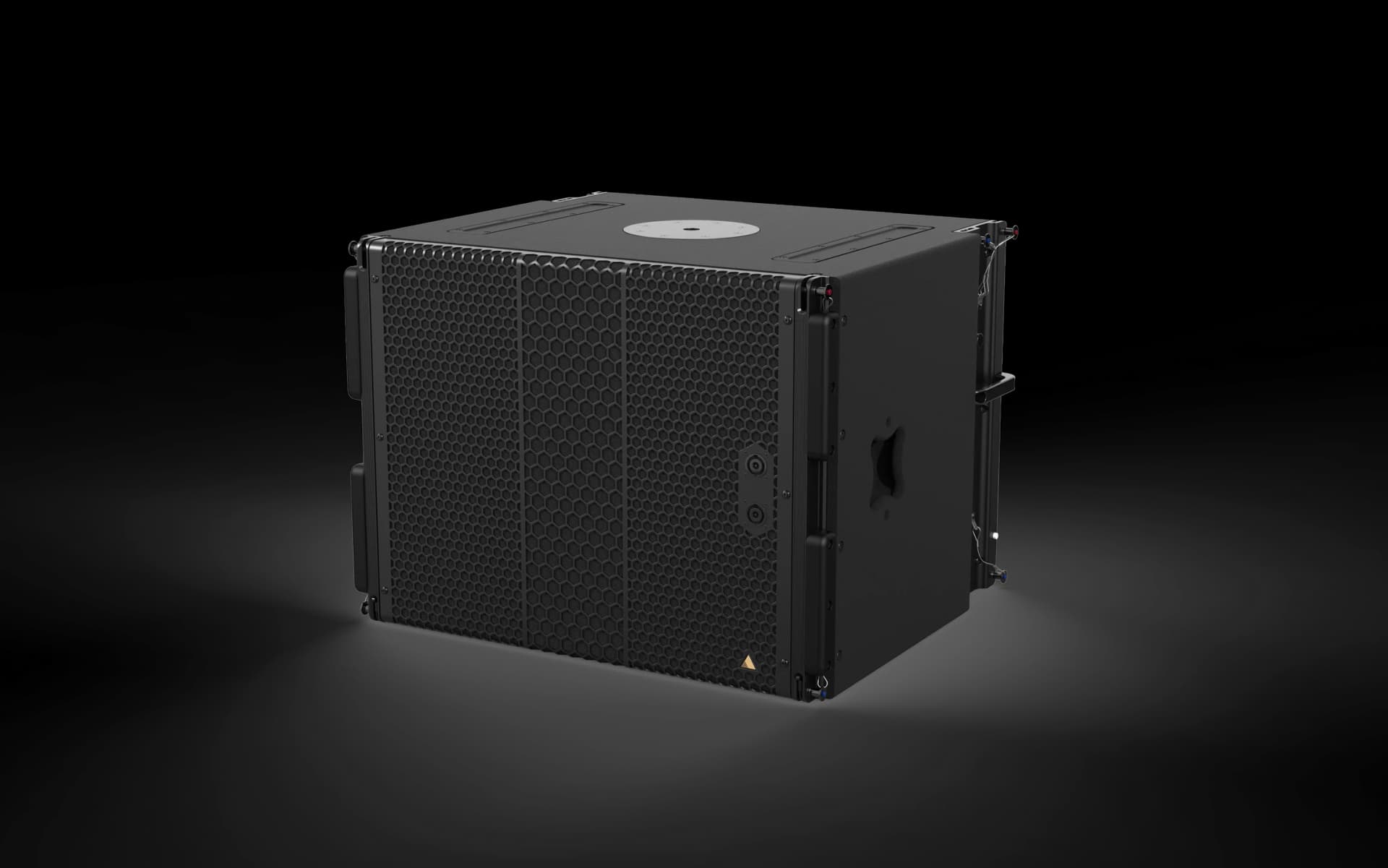

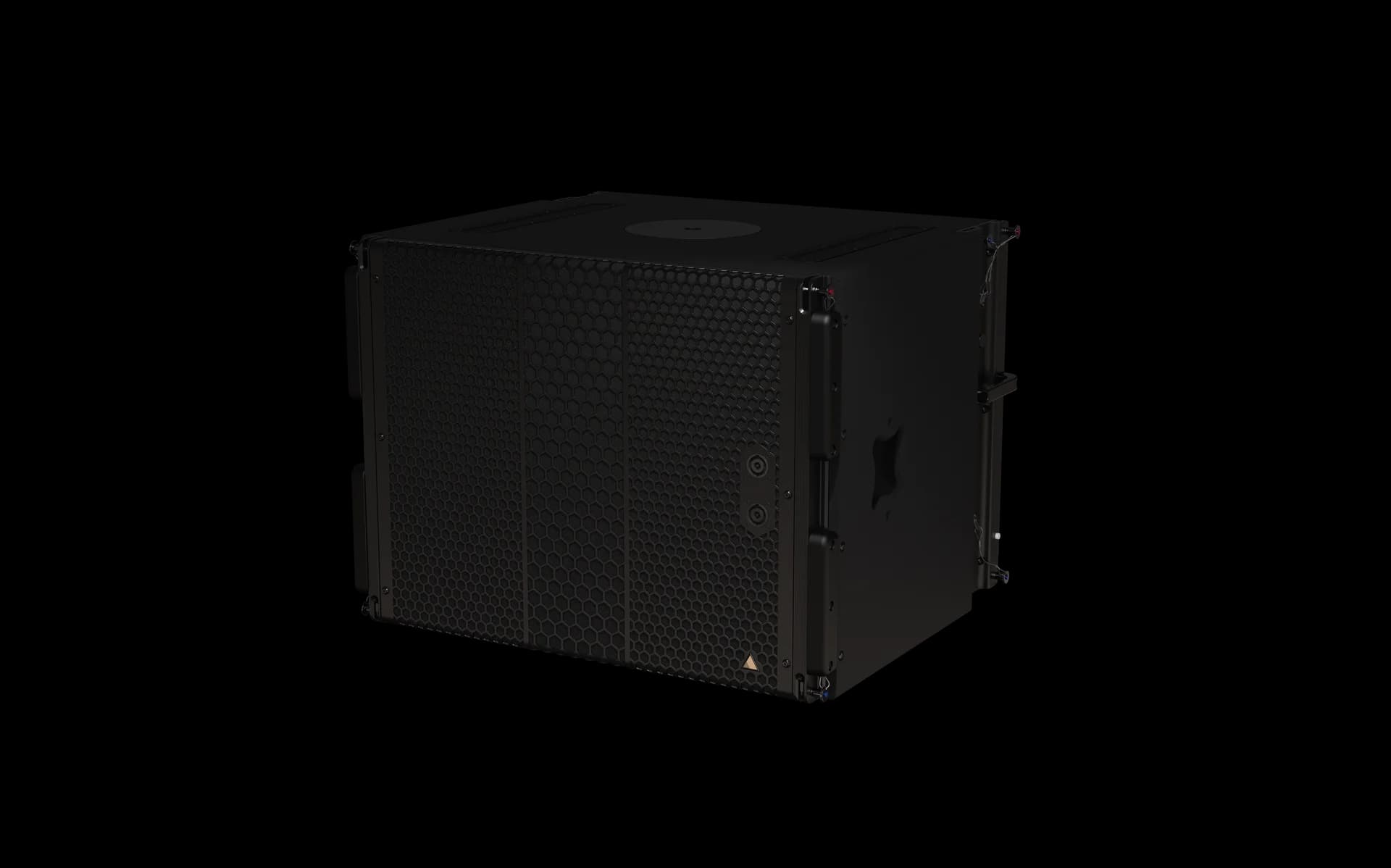

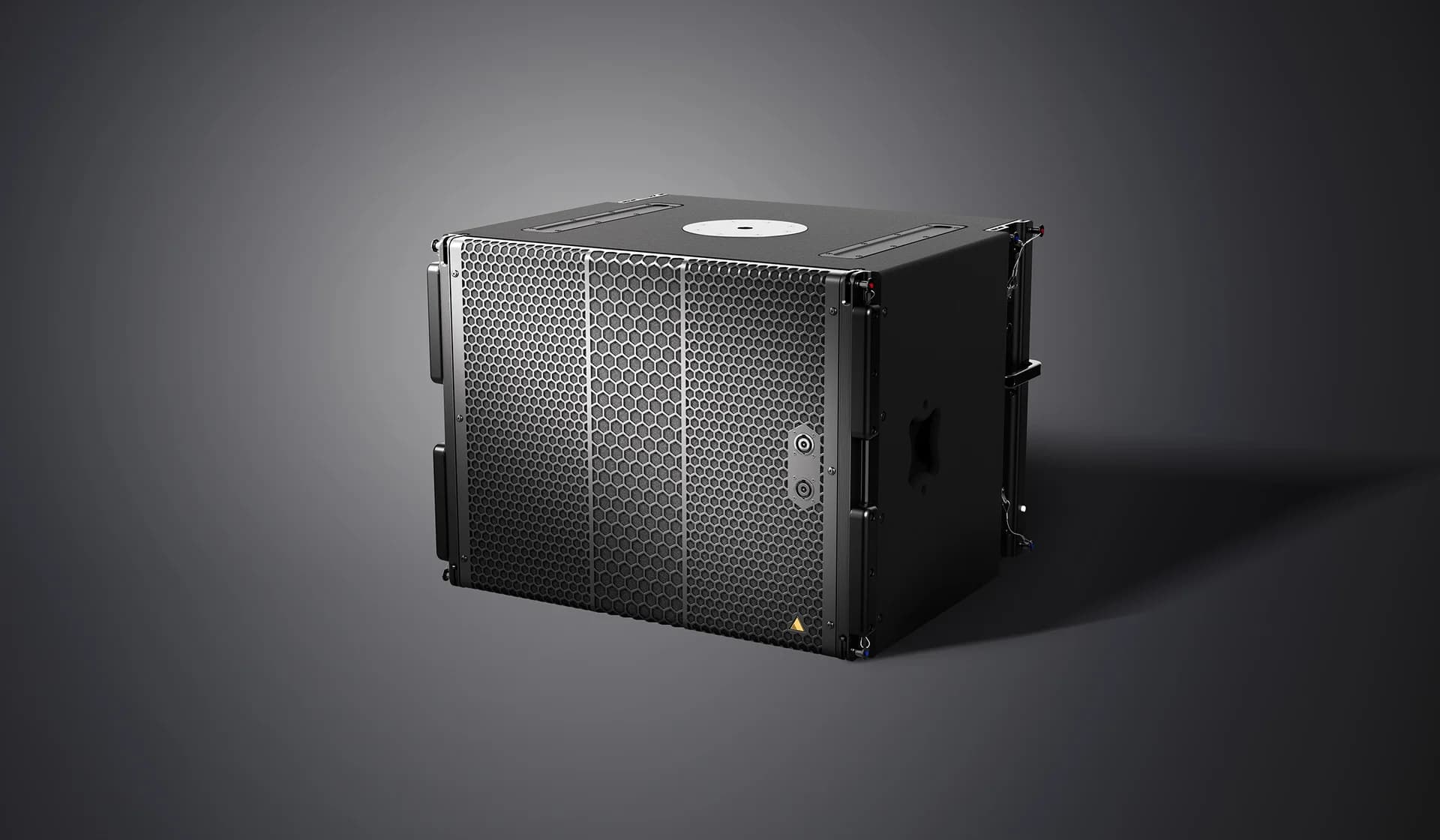

The S119 Subwoofer is the companion subwoofer to the S10. The enclosure is loaded with a light weight, long excursion, 19” ND19 Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 5” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with Speakon™ NL8 connectors. The integrated rigging system matches the rigging for the S10 and can be flown or stacked in the same array without the need for an adapter frame.
Line Source
Line Source

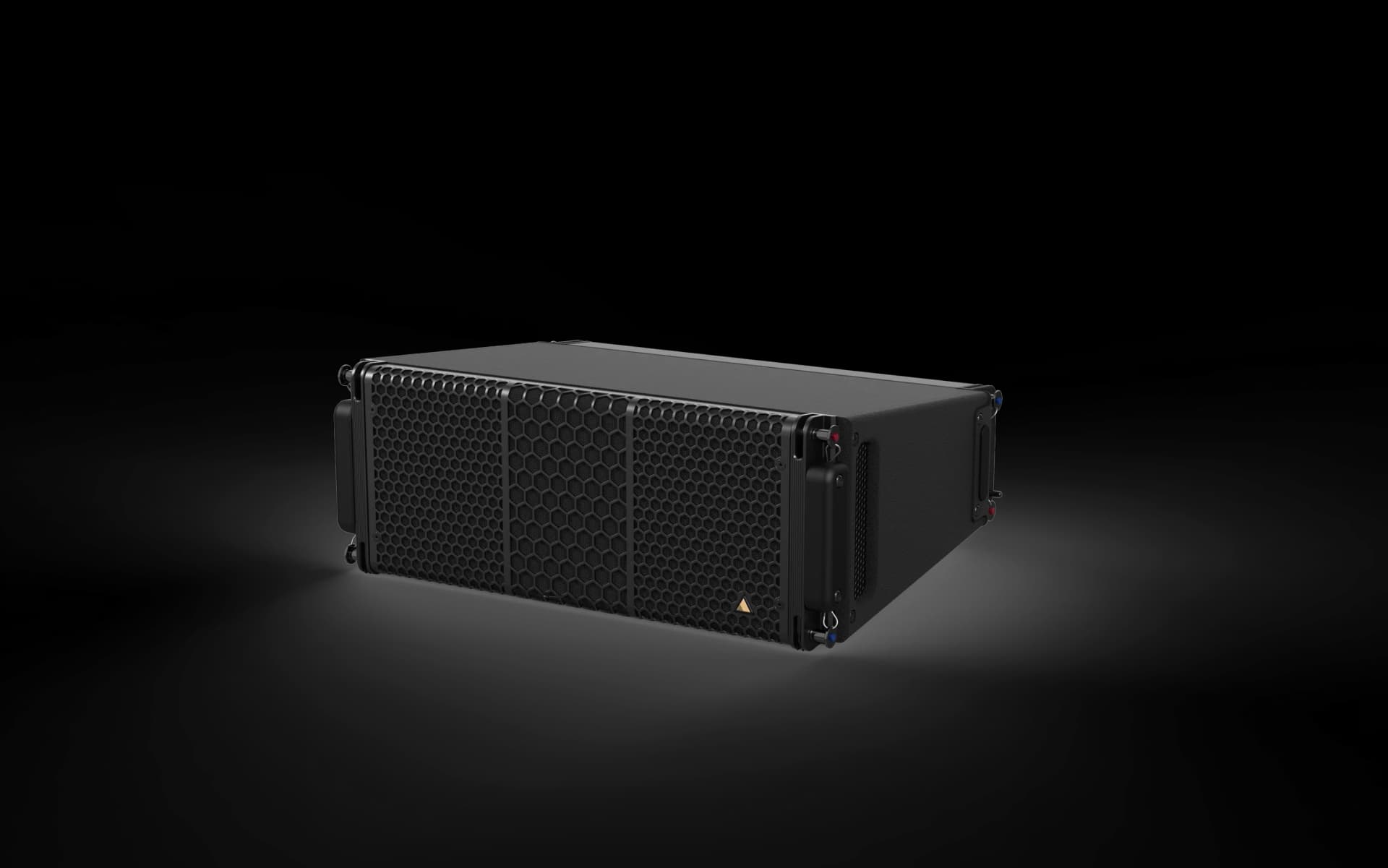

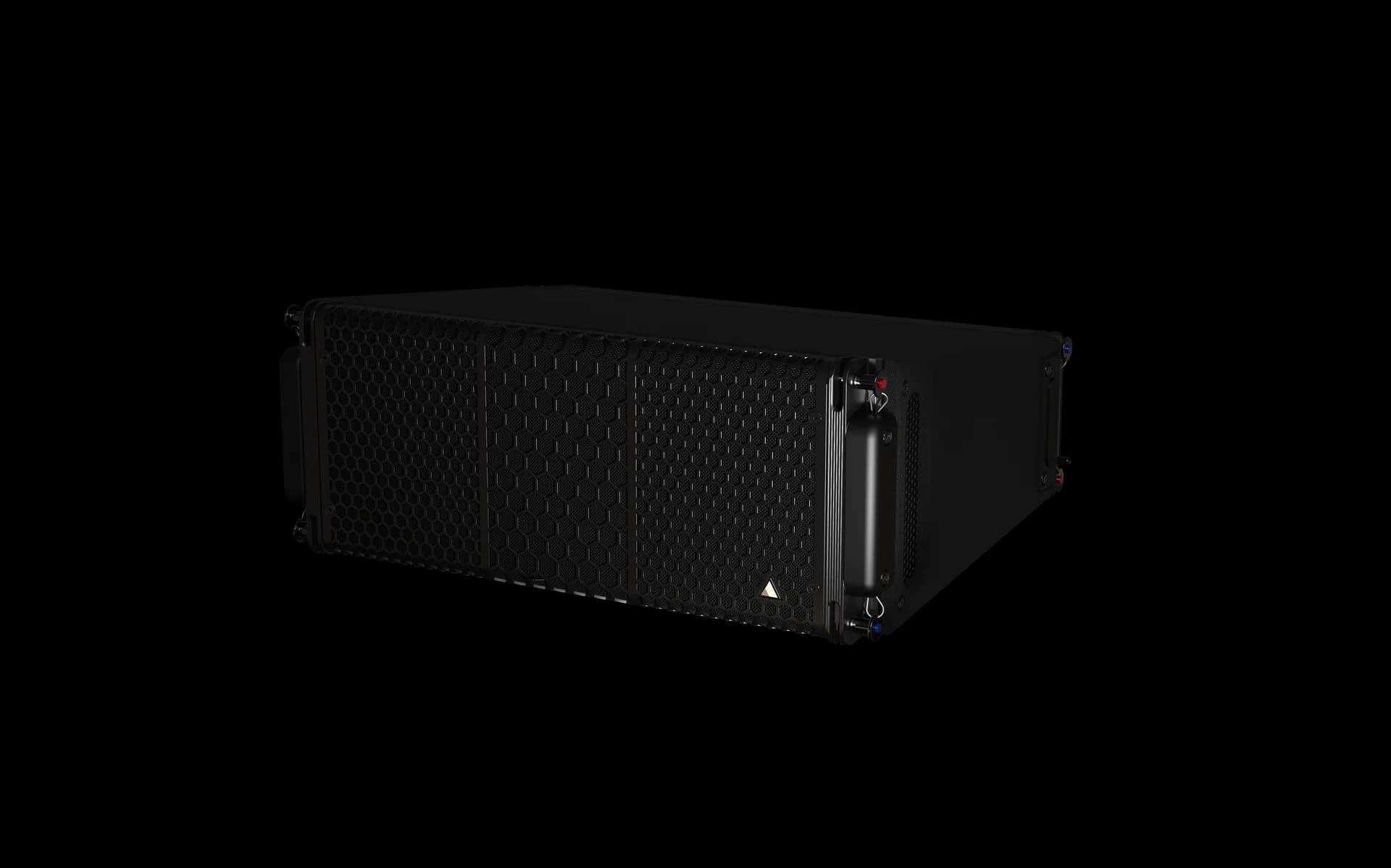

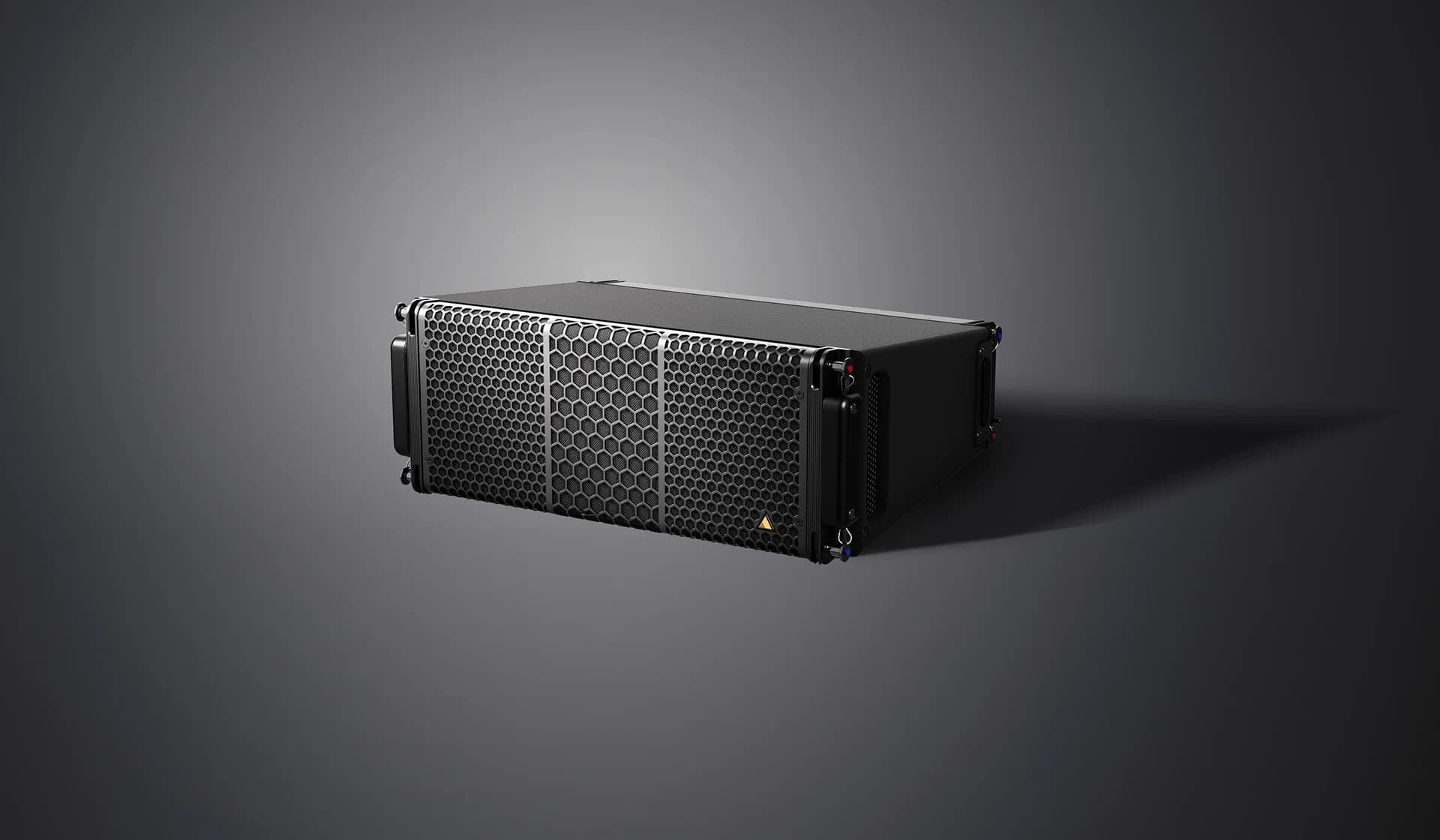

The S7 is a 2-way, full range line array cabinet containing 2x ND7-LM16 Kevlar Neodymium drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 100° x 12.5° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the far field. Patented Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with two Speakon™ NL4 connectors. The SlideLock rigging system ensures easy yet secure setup and teardown. The S7 is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. Increased vertical coverage (12.5°) enables the S7 to cover theaters and small arenas with reasonable speaker quantity. Other target applications include dance clubs, corporate events and contemporary churches.
Point Source
Point Source

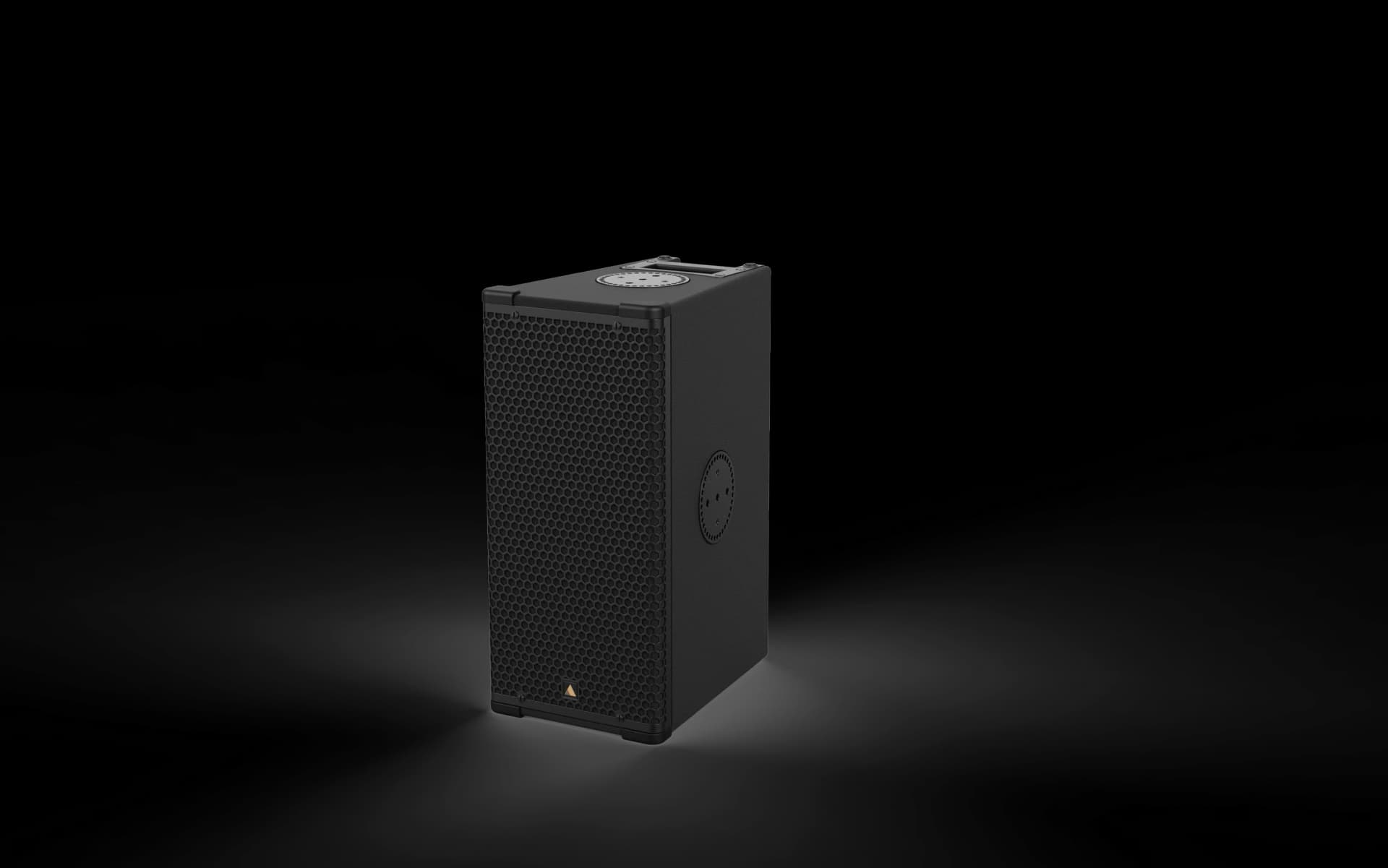

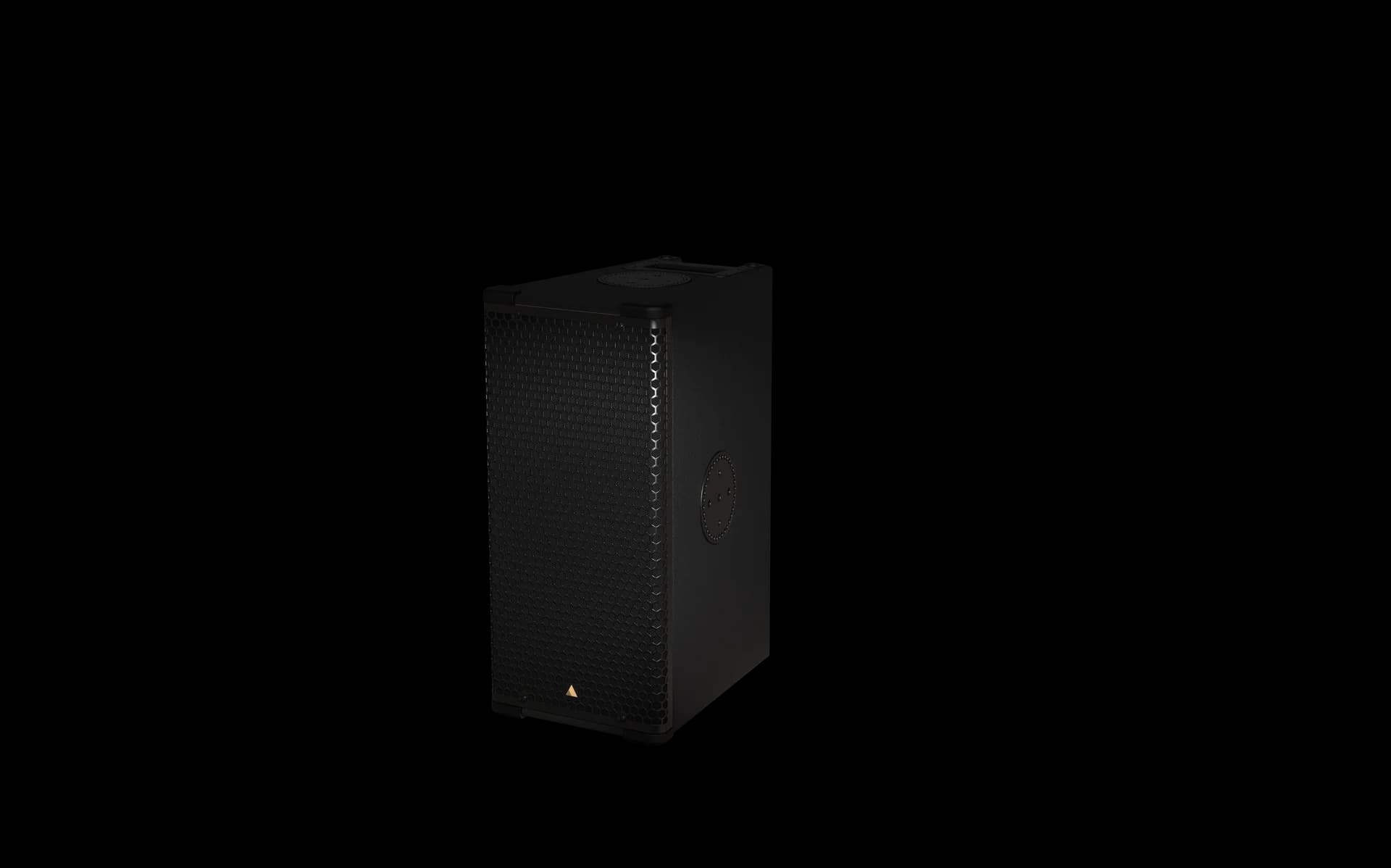

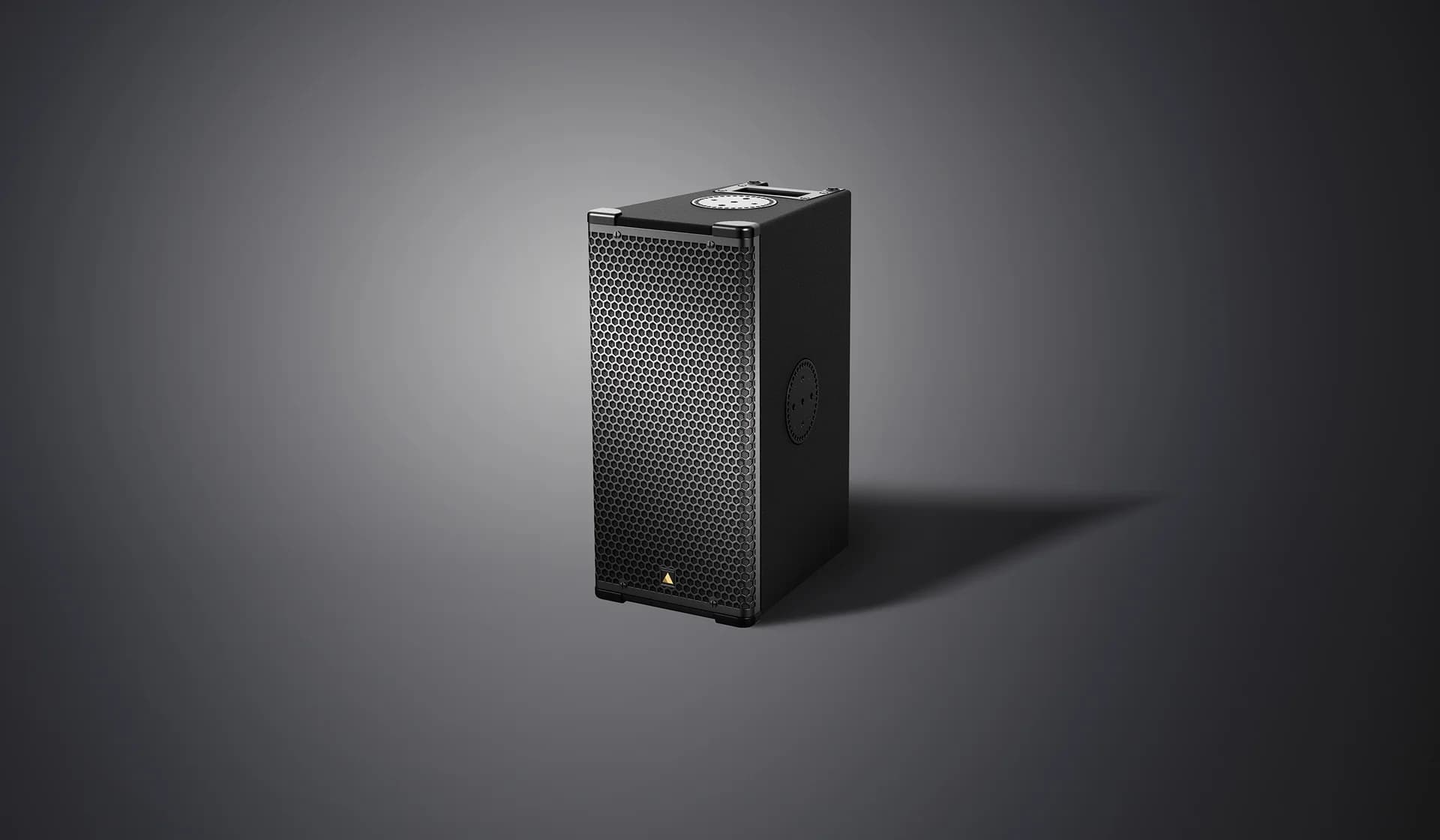

The S7p is a 2-way, full range point source cabinet containing 2x ND7-LM16 Low-Mid drivers (2x 16 Ω) and an NH3-8 1.4” exit compression driver (8 Ω). The prolate spheroidal waveguides produce a nominal dispersion pattern of 70° x 40° or 100° x 50° (H x V), rotatable by 90° increments.. The design of the waveguide ensures equal tonal balance when moving outside of the intended coverage pattern, delivering natural sound with no diffraction or lobing. The S7p can be operated in passive or bi-amped mode, which is user-defined through a switch on the jackplate. The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors. A disc rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications. The S7p is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. Target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship. The uniform voicing across the entire S-Series and E-Series makes the S7p the natural choice for front fill applications
