Subwoofer

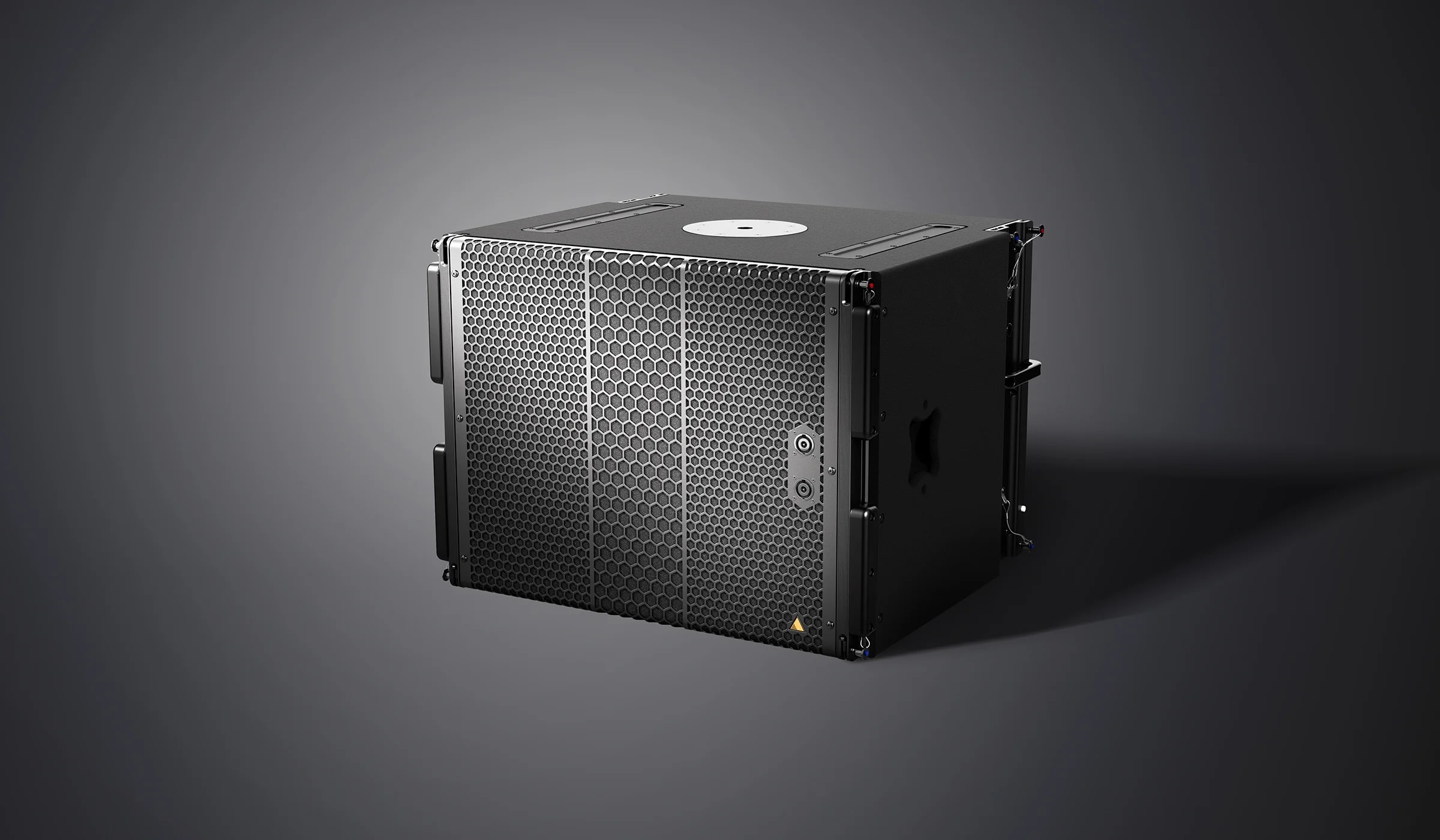

The S119 Subwoofer is the companion subwoofer to the S10. The enclosure is loaded with a light weight, long excursion, 19” ND19 Kevlar Neodymium driver utilizing Adamson’s Advanced Cone Architecture and a 5” voice coil for exceptional power handling. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with Speakon™ NL8 connectors. The integrated rigging system matches the rigging for the S10 and can be flown or stacked in the same array without the need for an adapter frame.
| Frequency Range | 30 Hz - 80 Hz |
| Maximum Peak SPL** | 138 dB |
| Components LF | 19x ND19 19" Driver |
| Power Handling (AES / Peak) | 1200 / 4800 W |
| Nominal Impedance | 8Ω |
| Connection | 5x Speakon™ NL8: 2x Front (Pins 2 +/-), 2x Rear Paral- lel (Pins 1 +/-) and 1x Rear Output (Pin 2 to 1) 1x Speakon™ NL4: 1x Rear Output Link for Tops |
| Height (mm / in) | 543.5 / 21.4 |
| Width (mm / in) | 742 / 29.2 |
| Depth (mm / in) | 630 / 24.8 |
| Weight (kg / lbs) | 47 / 103.6 |
| Configuration | 2-way |
